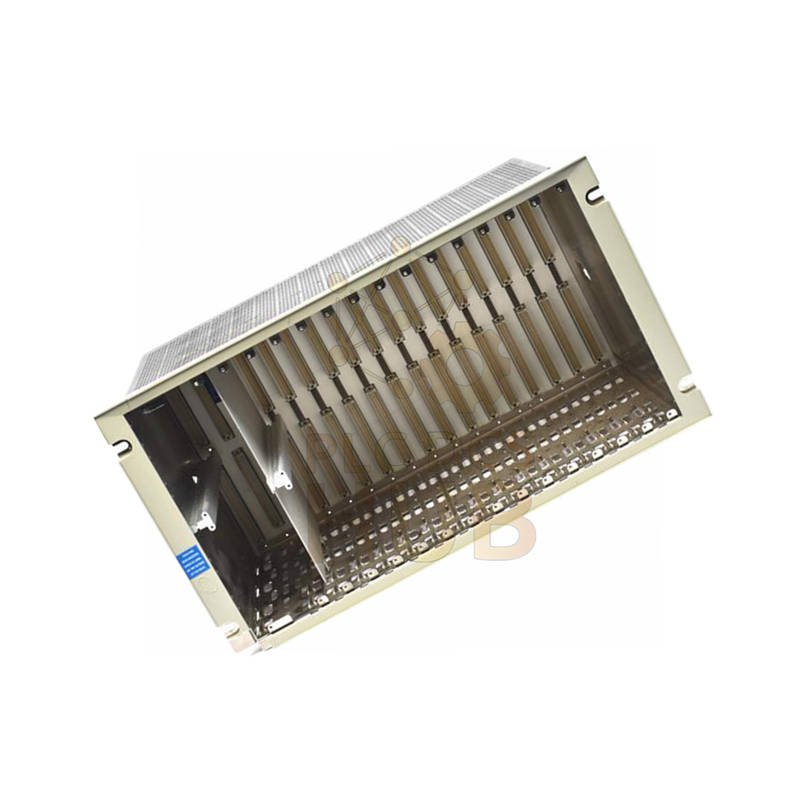

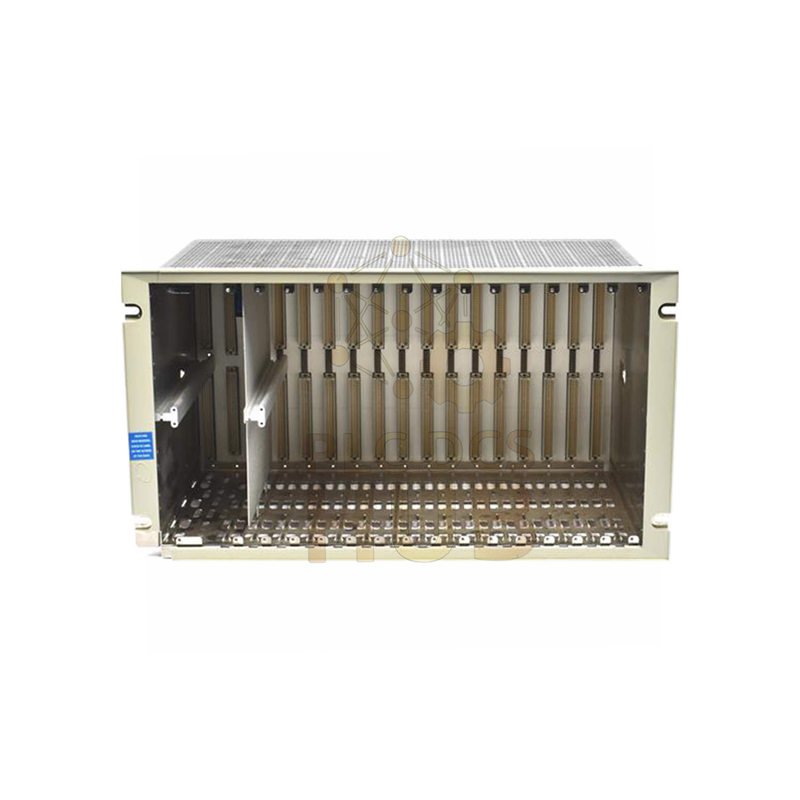

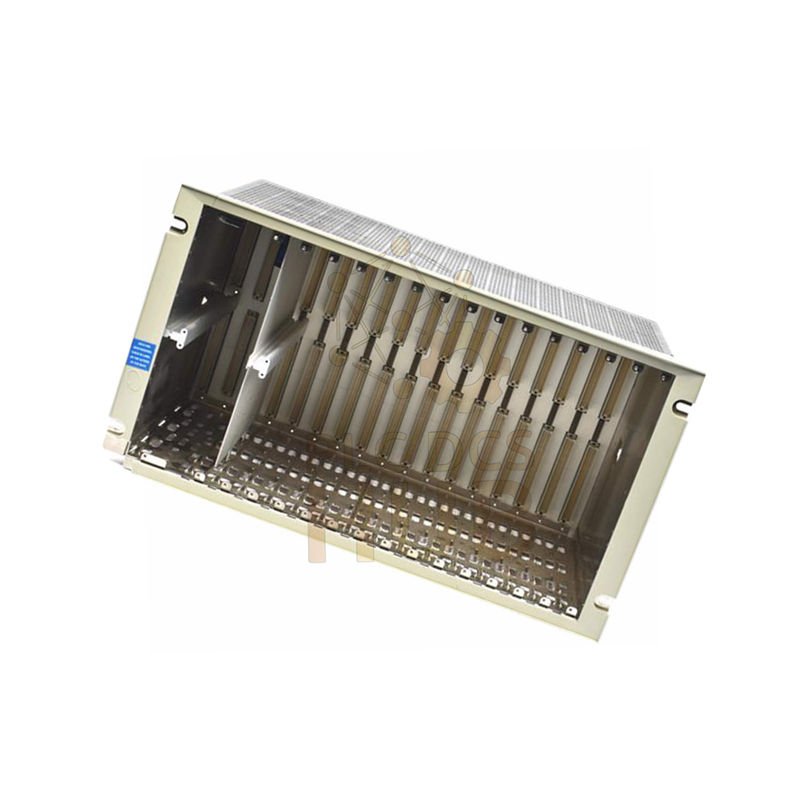

3500/05-01-01-00-00-01 Bently Nevada 3500 Rack System Monitoring Chassis

Description

Product Overview

• Brand: Bently Nevada
• Model: 3500/05-01-01-00-00-01
• Series: 3500
• Product Type: System Rack Chassis
• This rack is the core of the 3500 monitoring system.
• It houses power, communication, and monitoring modules.
• The design supports protection and condition monitoring.

Main Product Advantages

• High system capacity for multi-channel monitoring.
• Modular structure for flexible expansion.
• Integrated backplane for stable data flow.
• Industrial reliability for critical assets.

Rack Dimensions and Mounting

• Mounting Type: 19-inch rack mount
• Height: 265.94 mm
• Width: 482.6 mm
• Depth: 246.38 mm
• Rack Size: Full-size chassis

Power and Electrical Data

• Input Voltage: 100 to 240 VAC
• Input Frequency: 50 or 60 Hz
• Maximum Power Use: 200 W
• Power Supply: Supports redundant options
• Power Distribution: Through internal backplane

Environmental Conditions

• Operating Temperature: 0 °C to 50 °C
• Storage Temperature: −40 °C to +85 °C
• Humidity: Up to 95 percent non-condensing
• Cooling: Natural air convection

System Capacity and Communication

• Module Slots: Up to 14 total slots
• Monitoring Capacity: Up to 12 active modules
• Local Interface: Display and keypad support
• Network Protocols: Modbus TCP/IP and EtherNet/IP
• System Integration: Easy link to plant networks

Ordering Code Structure

• 3500/05-01-01-00-00-01
  • 3500/05 → 3500 series system rack
  • 01 → 19-inch rack, 14 module slots
  • 01 → Panel mount, full-size version
  • 00 → No agency approval selected
  • 00 → No reserved option
  • 01 → CE compliance for Europe

Additional Technical Highlights

• Designed for continuous operation.
• Supports hot-swappable modules.
• Strong mechanical frame reduces vibration impact.
• Clear slot layout simplifies maintenance.

Typical Applications

• Turbine monitoring systems
• Compressor protection platforms
• Power generation assets
• Oil and gas rotating equipment

Professional FAQ

• Does this rack support redundant power supplies?
• Yes. Redundant power options increase system uptime.
• How many modules can run at one time?
• Up to twelve monitoring and protection modules.
• Is this rack suitable for retrofit projects?
• Yes. It fits standard 19-inch cabinets.
• What should be checked before ordering?
• Confirm slot count, power needs, and approval codes.
• Buying advice for system expansion?
• Plan spare slots for future monitoring needs.

Packaging, Warranty and Shipping

• Supplied in protective industrial packaging.
• Warranty: 12 months.
• Worldwide shipping via FedEx, UPS, or DHL.
