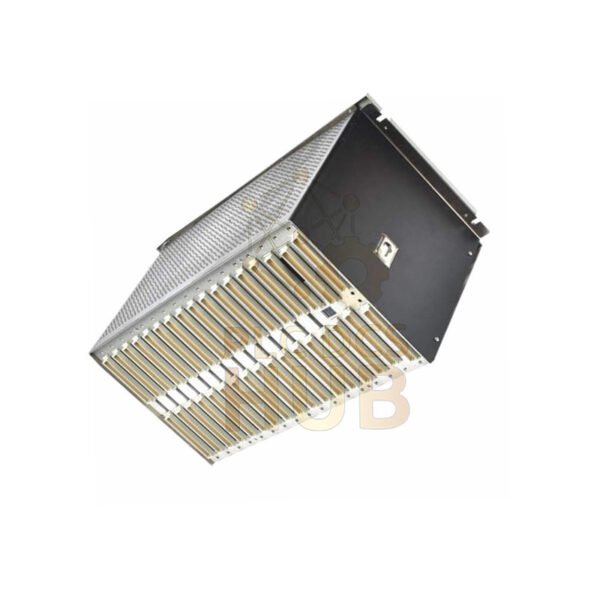

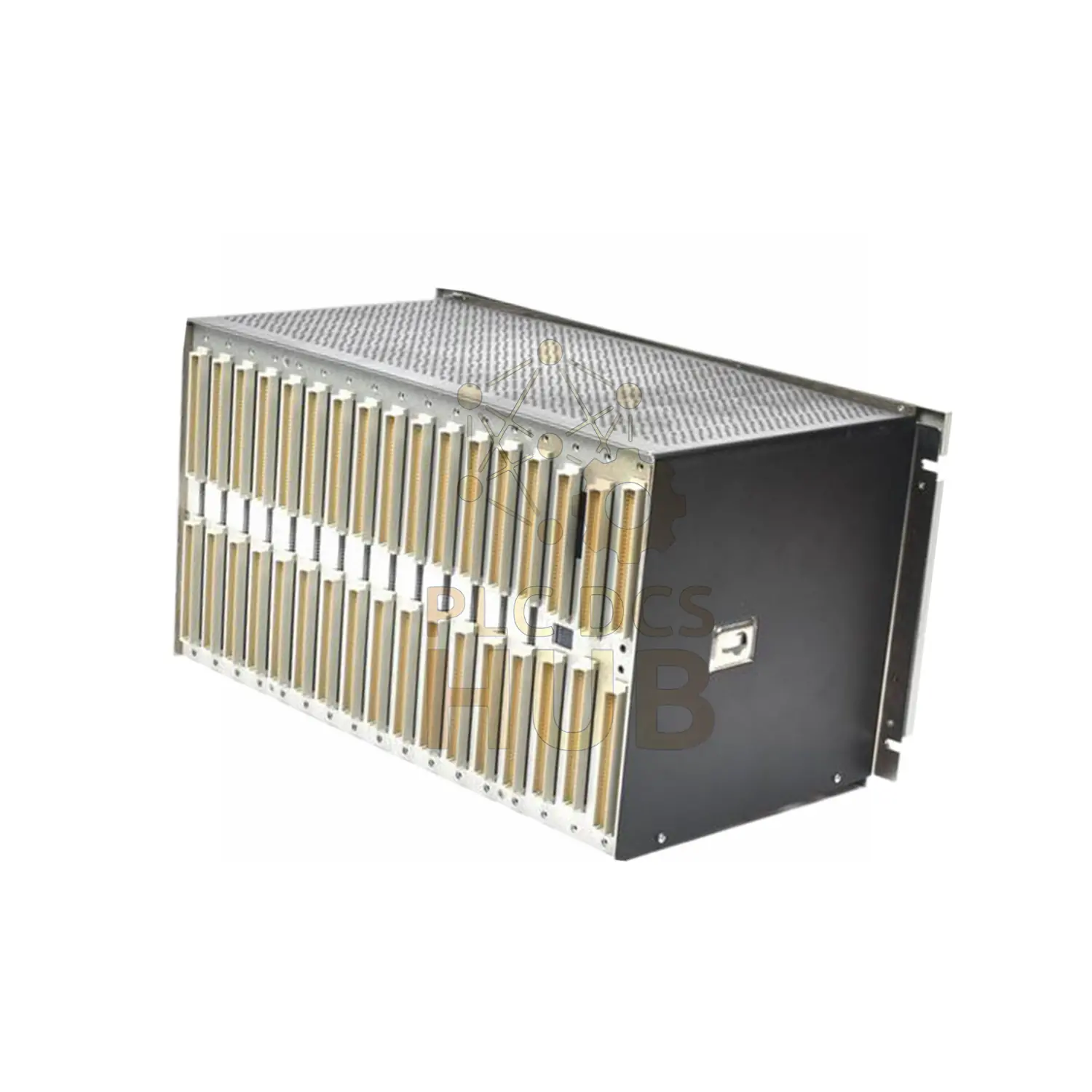

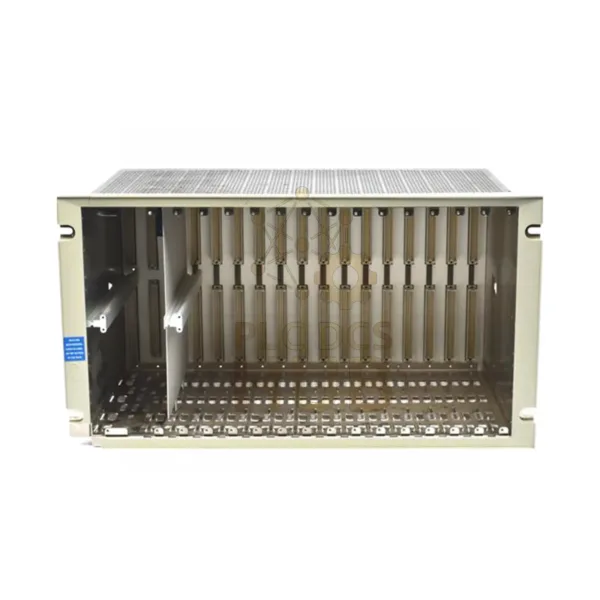

3500/05-01-03-00-00-00 Bently Nevada 3500 Rack Bulkhead Mount System

Description

Manufacturer and Basic Details

• Brand: Bently Nevada
• Part Number: 3500/05-01-03-00-00-00
• Series: 3500
• Product Type: System Rack
• Origin: Made in U.S.A

Product Positioning

• This rack is the base of the 3500 monitoring system.
• It holds power, control, and monitoring modules.
• It is built for long-term industrial use.

Ordering Code Structure

• 3500/05-01-03-00-00-00
  • 3500/05
    • 3500 system rack family
  • -01
    • 19-inch rack
    • 14 full module slots
  • -03
    • Bulkhead mount option
    • Not for mini-rack use
  • -00
    • No agency approval selected
  • -00
    • Reserved code, not assigned
  • -00
    • No European compliance option

Mounting and Mechanical Data

• Rack Width: 482.60 mm
• Rack Height: 349.25 mm
• Rack Depth: 265.94 mm
• Mounting Style: Bulkhead mount
• Weight: 6.5 kg

Extended Technical Parameters

• Module Capacity: Up to 14 slots
• Active Monitoring Slots: Up to 12
• Backplane Type: Integrated signal and power bus
• Frame Material: Reinforced metal structure
• Vibration Resistance: Suitable for rotating equipment areas
• Cooling Method: Passive air flow

Key Selling Points

• High slot density for complex systems.
• Bulkhead mounting improves stability.
• Made in USA ensures build quality.
• Flexible layout for future expansion.
• Proven platform used worldwide.

Typical Use Scenarios

• Turbine protection systems
• Compressor health monitoring
• Power plant machinery
• Oil and gas rotating assets

Professional FAQ

• Is this rack suitable for high vibration areas?
• Yes. The bulkhead mount improves mechanical stability.
• Can this rack be expanded later?
• Yes. Empty slots allow future module addition.
• What should engineers check before purchase?
• Confirm mounting type and slot requirements.
• Is this rack compatible with all 3500 modules?
• Yes. It supports standard 3500 series cards.
• Buying advice for long-term projects?
• Choose extra slots to reduce future downtime.

Warranty and Shipping

• Warranty: 12 months.
• Each unit is tested before shipment.
• Shipping via FedEx, UPS, or DHL.
