Description
Product Overview

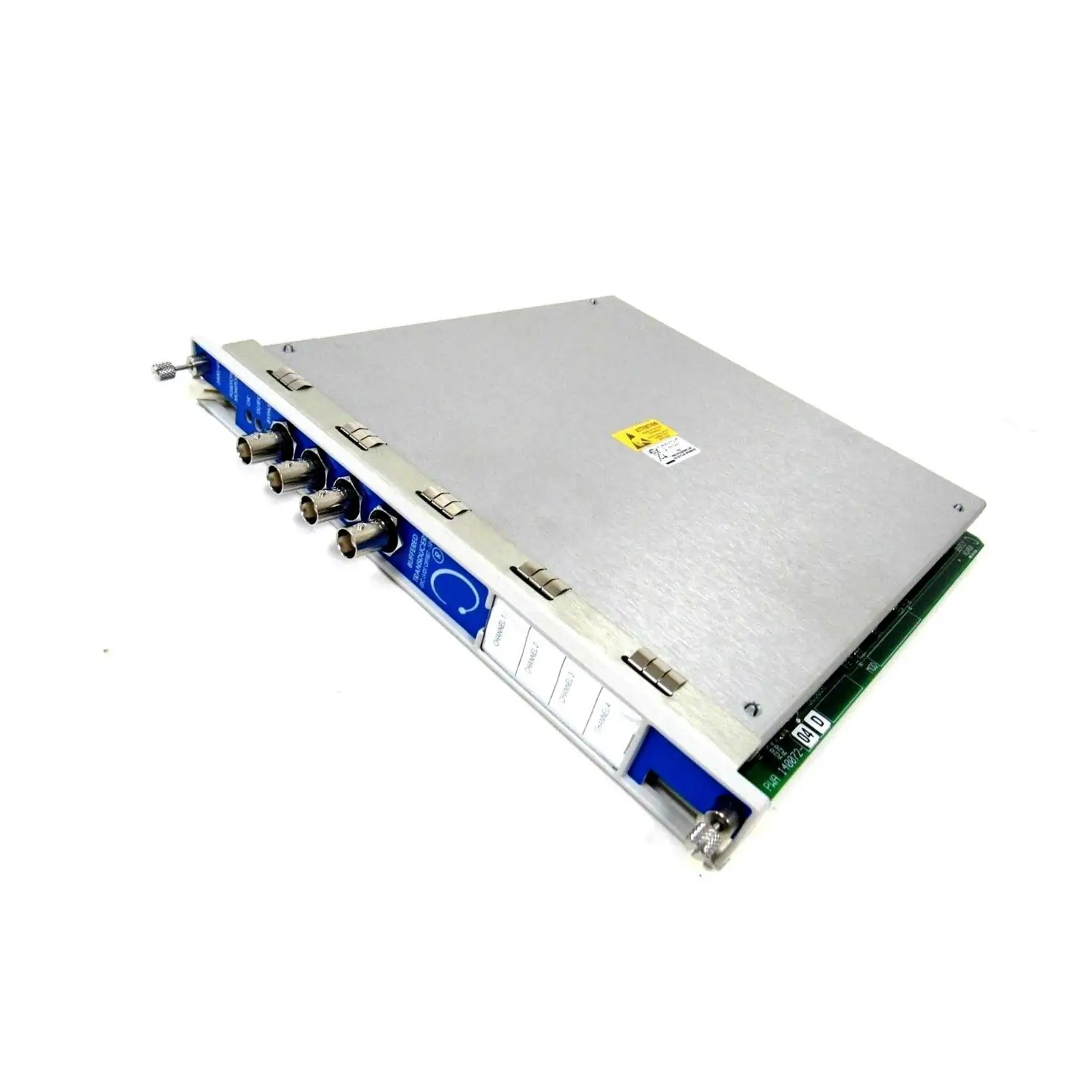

The Bently Nevada 3500/22M-01-01-00 Transient Data Interface Module is a critical component of the 3500 series monitoring system, designed to bridge the system with diagnostic software like System 1. This module combines rack interface functionality with advanced data collection, enabling real-time monitoring in industrial applications. Sold as new with original factory packaging and a 12-month warranty.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | 3500/22M-01-01-00 (includes 288055-01 + 146031-01) |
| Interface Type | 01 – Standard monitoring |
| I/O Module | 01 – 10Base-T/100Base-TX Ethernet |
| Dimensions (TDI) | 241.3mm × 24.4mm × 241.8mm |
| Weight (TDI) | 0.91 kg (2.0 lbs) |
Environmental & Operational Limits
- Operating Temp: -30°C to +65°C (-22°F to +149°F)
- Storage Temp: -40°C to +85°C (-40°F to +185°F)
- Humidity: 95% non-condensing
- Battery Life: 38 years (powered @50°C) / 12 years (unpowered)
Key Features
- Ethernet connectivity for seamless integration
- Captures static and transient dynamic data
- Compatible with 3500 series monitors and software
- Rack-mounted design for easy installation
Industrial Applications
- Power Plants: Turbine vibration monitoring
- Oil & Gas: Compressor diagnostics
- Manufacturing: Predictive maintenance systems
Contact: For technical queries, email sales@ubestplc.com.
