Description
Product Overview

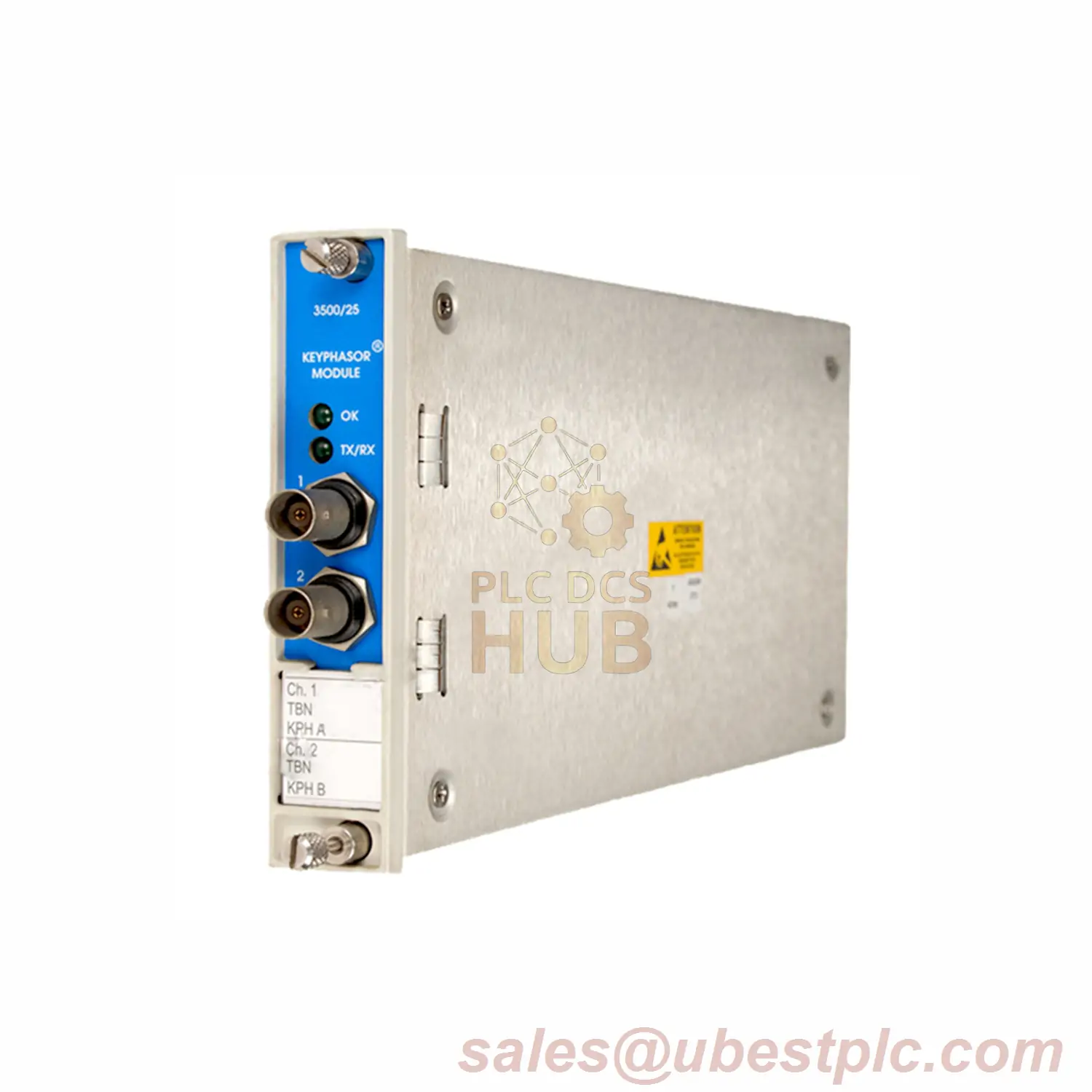

The Bently Nevada 3500/25-01-01-02 Enhanced Keyphasor Module is a precision-engineered component designed for critical machinery monitoring. Manufactured in the U.S.A., this module provides reliable phase reference signals for vibration analysis in industrial applications, ensuring accurate timing synchronization for rotating equipment.
Technical Specifications
- Part Number: 3500/25-01-01-02
- Form Factor: Half-height, two-channel module
- Input Signal Range:
- Non-isolated I/O: +0.8V to -21.0V
- Isolated I/O: +5V to -11V
- Power Consumption: 3.2 Watts (typical)
- Buffered Outputs: 2 channels, 504Ω max impedance
- Power Supply: -24VDC, 40mA per channel
Key Features
- Supports two transducer signals simultaneously
- Internal terminations for simplified installation
- Certified for Class 1, Division 2 hazardous areas
- Compact design for space-optimized rack integration
Certifications & Compliance
| Certification | Details |
|---|---|
| cNRTLus | Class 1, Div 2 compliance (hazardous environments) |
Industrial Applications
- Power Generation: Steam/Gas turbine phase monitoring
- Oil & Gas: Compressor and pump shaft timing
- Manufacturing: High-speed rotor synchronization
Contact Support: For technical inquiries or certifications, email sales@ubestplc.com.
