Description
Overview

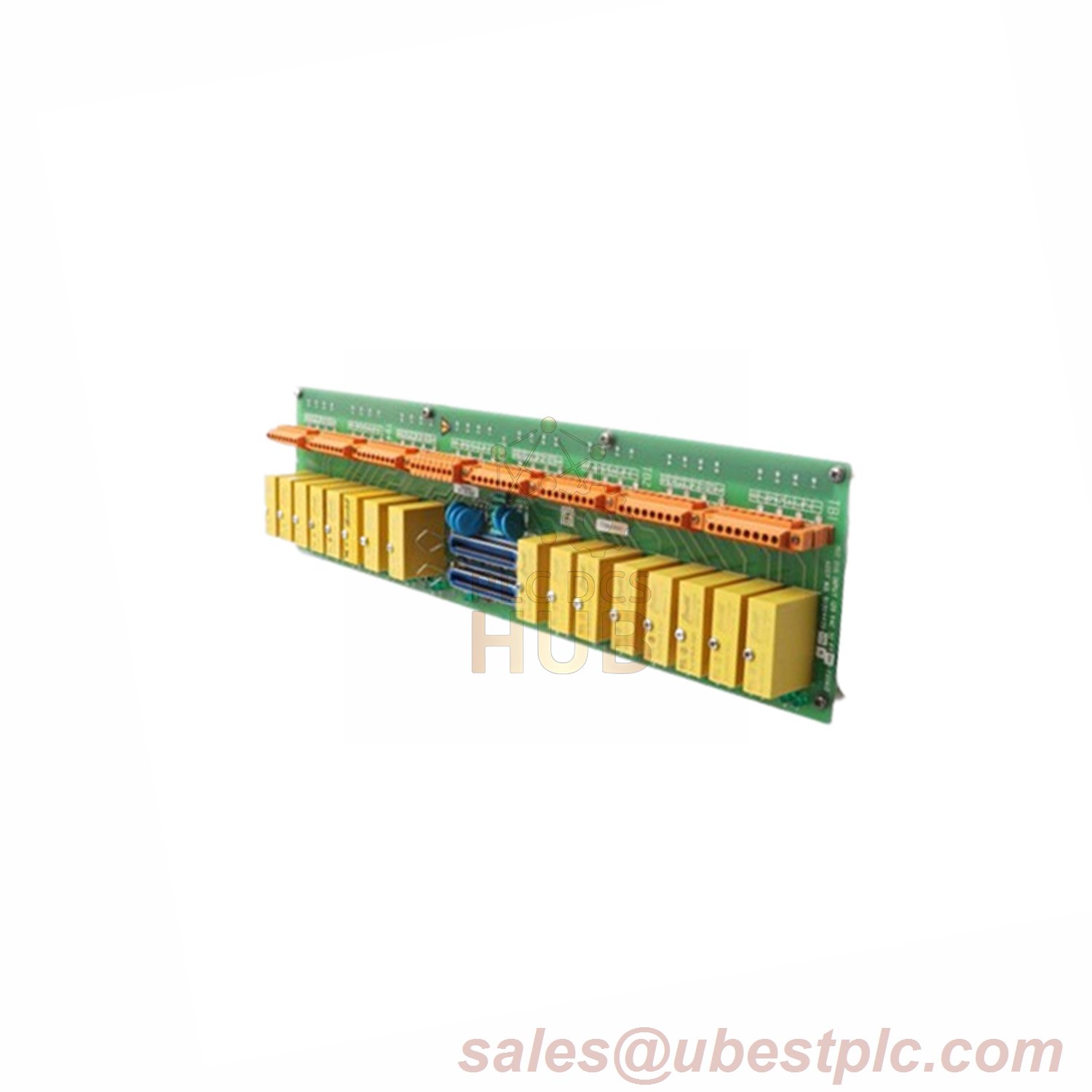

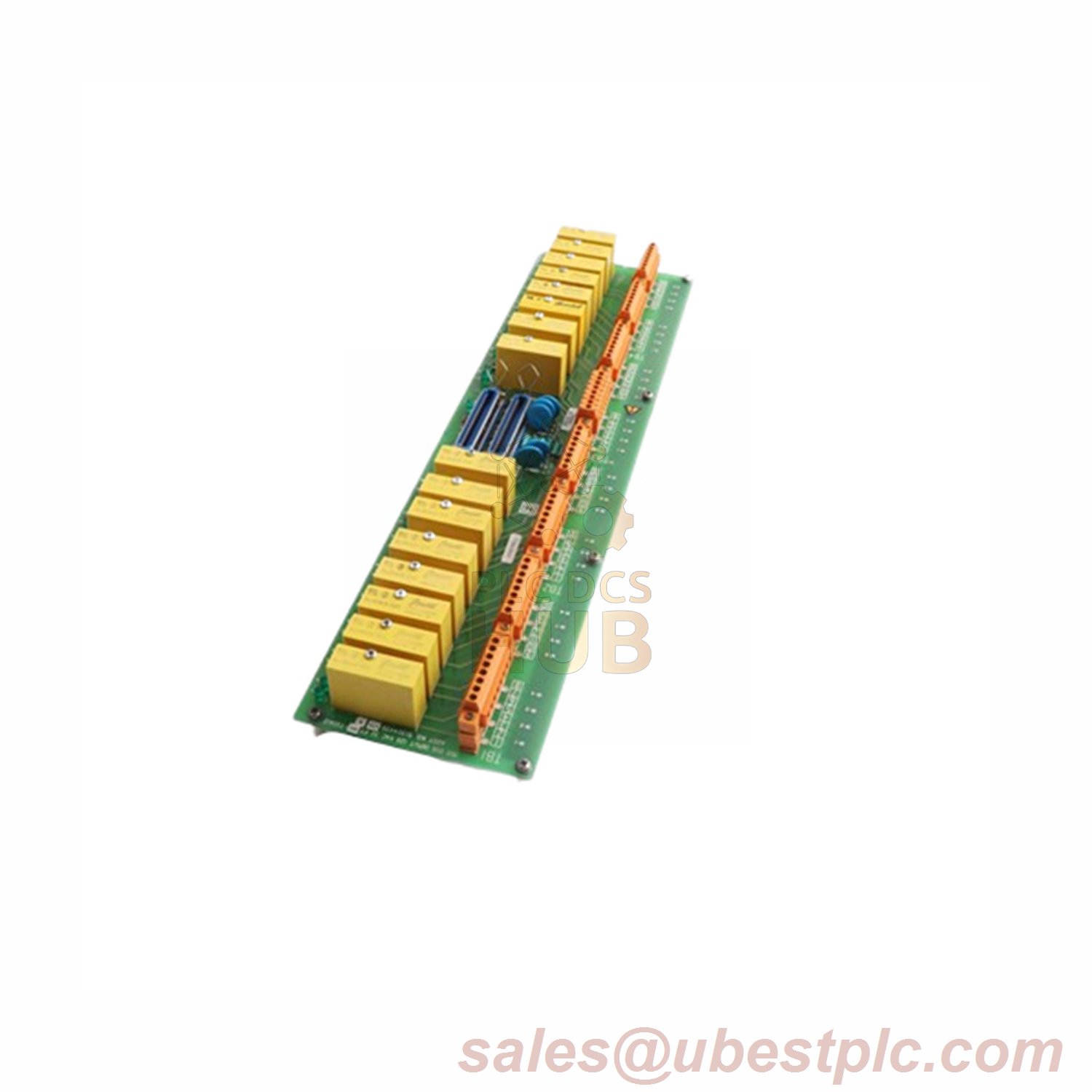

The Honeywell MC-TDIA12 Isolated Digital Input Board (part number: 51304439-175) is designed to provide reliable and safe input signal processing for industrial automation applications. With 32 input channels and robust isolation capabilities, this board is perfect for systems requiring precise signal handling in environments with varying voltage conditions. Manufactured in the USA, this board supports a wide input voltage range, ensuring adaptability in diverse setups.
Technical Specifications:
| Attribute | Details |
|---|---|
| Brand | Honeywell |
| Model | MC-TDIA12 |
| Part Number | 51304439-175 |
| Dimensions | 46.2 cm x 12 cm x 5 cm |
| Weight | 1.14 kg |
| Country of Origin | USA |
| Input Channels | 32 |
| Input Range (24 Vdc FTA) | 20-30 Vdc |
| Input Range (120 Vac/125 Vdc FTA) | 90-132 Vac rms |
| Input Range (240 Vac FTA) | 180-264 Vac rms |
| Isolation Voltage | 1000 VDC |
| Response Time | 5 ms |
| Operating Temperature | -20°C to 60°C |
| Humidity | 5% to 95% RH, non-condensing |
