70085-1010-041 AI-TEK Magnetic Sensor | 4.2V Low Speed Guarantee

Description

Product Snapshot

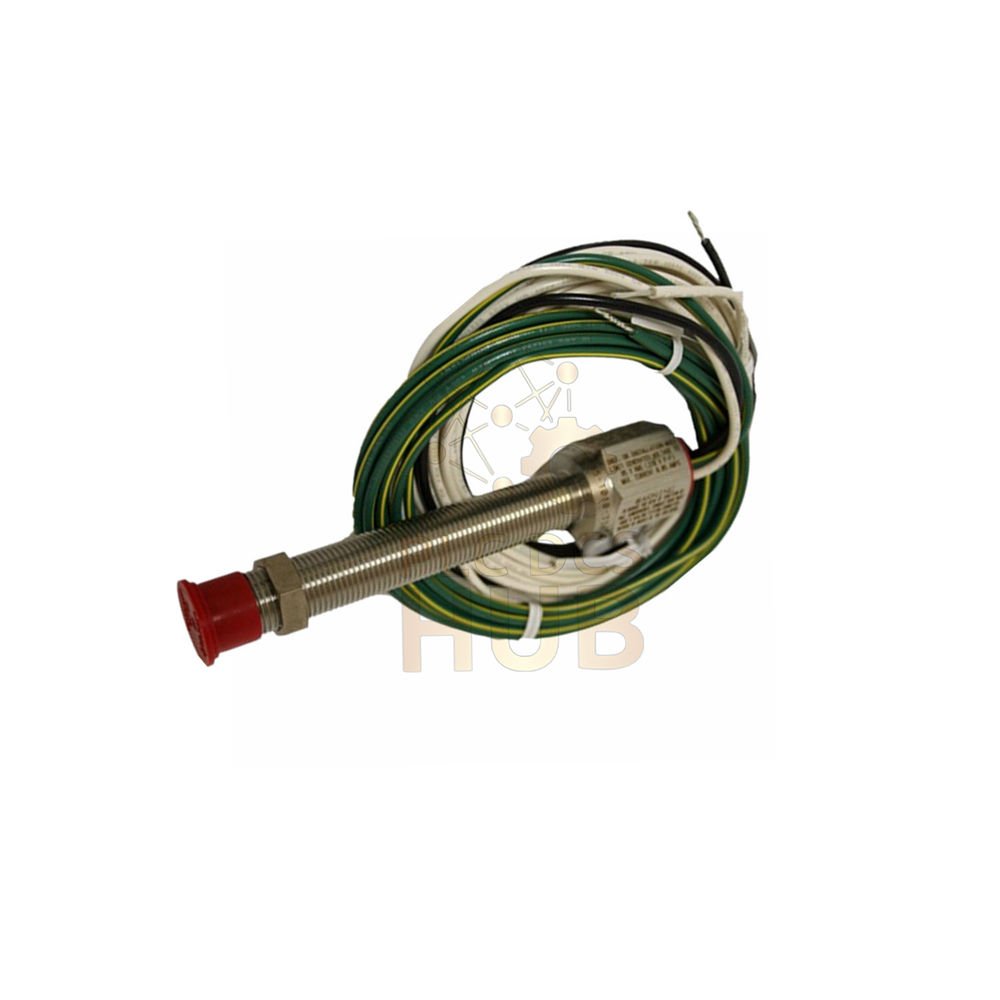

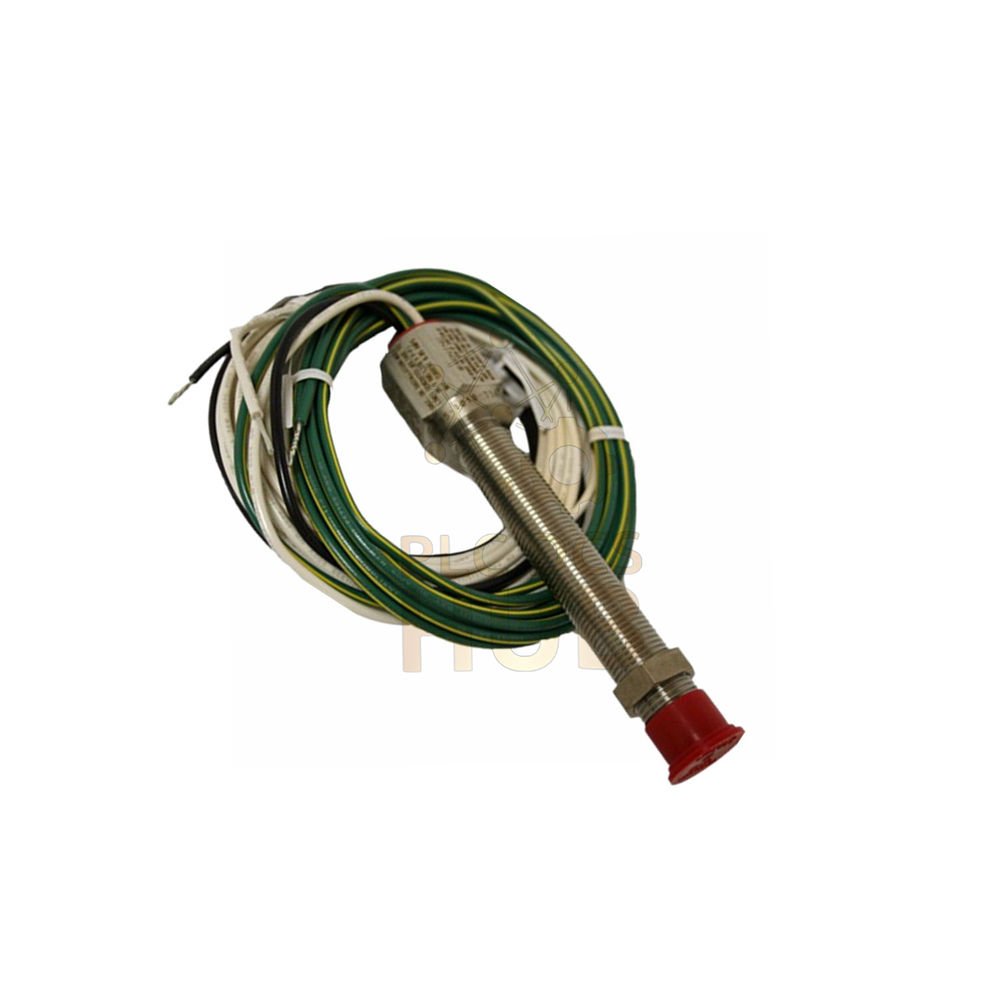

• AI-TEK 70085-1010-041 – compact magnetic speed sensor.
• No power needed. Self-powered output.
• Works with ferrous metal targets like small gears.
• Ideal for tight spaces and light-duty sensing.

Technical Data (Hierarchical Format)

• Brand & Model
  • Brand: AI-TEK
  • Part Number: 70085-1010-041
• Thread & Mounting
  • Thread Size: 3/8-24 UNF (small thread)
  • Thread Length: 0.812 inch
  • Sensor Length: 1.252 inch
  • Very compact for tight mounting spots
• Electrical Output
  • Standard Output: 55 V (P-P) at high speed
  • Guaranteed Output: 4.2 V (P-P) at low speed
  • Output Polarity: White lead is positive
• Internal Coil Specs
  • DC Resistance: 960 ohms max
  • Typical Inductance: 125 mH (reference)
• Wire & Cable Options
  • Termination: Wires (flying leads)
  • Lead Length (-086): 18 inches (45.7 cm)
  • Cable Length (-355): 40 inches (101.6 cm)
• Temperature & Weight
  • Operating Temp: -55°C to +107°C
  • Net Weight: 2 oz max (very light)
  • Agency Approval: None (standard use)

Key Benefits

• Small 3/8-24 thread fits tiny holes.
• Light weight: only 2 ounces.
• Low speed guarantee: 4.2V P-P output.
• Choice of 18″ leads or 40″ cable.
• Works from -55°C to +107°C.

Installation Tips

• Tap a 3/8-24 hole before mounting.
• Set air gap: 0.005 to 0.015 inch from gear tooth.
• White wire = positive signal. Connect correctly.
• Keep wires away from high heat sources.

Shipping & Warranty

• Warranty: 12 months from purchase date.
• Covers coil failure and internal defects.
• Shipping: FedEx, UPS, DHL express available.
• Tracking number sent within 24 hours.

5 Professional FAQs

• Why guaranteed output is 4.2V but standard is 55V?
  4.2V is at very low speed. 55V happens at high speed. Both are normal.
• Can I use this sensor with a 3/8-24 hole?
  Yes. Thread size exactly matches. Do not force into different thread.
• Experience tip: signal drops when wires move.
  Check internal wire crimp. Add a small strain relief near sensor body.
• Which lead length to choose: -086 or -355?
  Pick -086 (18″) for tight panels. Pick -355 (40″) for longer reach.
• Buying guide: small gear or fine pitch?
  This 70085-1010-041 works best with small diameter gears. Lower voltage is fine.

Quick Selection Guide

• Need tiny sensor? Choose 70085-1010-041 with 3/8-24 thread.
• Very light weight requirement? This is only 2 ounces.
• Want flying leads? This model has wires, no connector.
• For standard temps (-55 to 107°C) – perfect match.

Typical Applications

• Small engine RPM sensing.
• Compact pump speed monitoring.
• Light industrial gear counters.
• Lab equipment speed feedback.
• Robotics joint speed detection.
