Bently Nevada 21504-00-24-05-02 Proximity Vibration Probe – New & Original
Condition: New in Factory Packaging | Warranty: 12 Months | Shipping: FedEx, UPS, DHL
Product Description

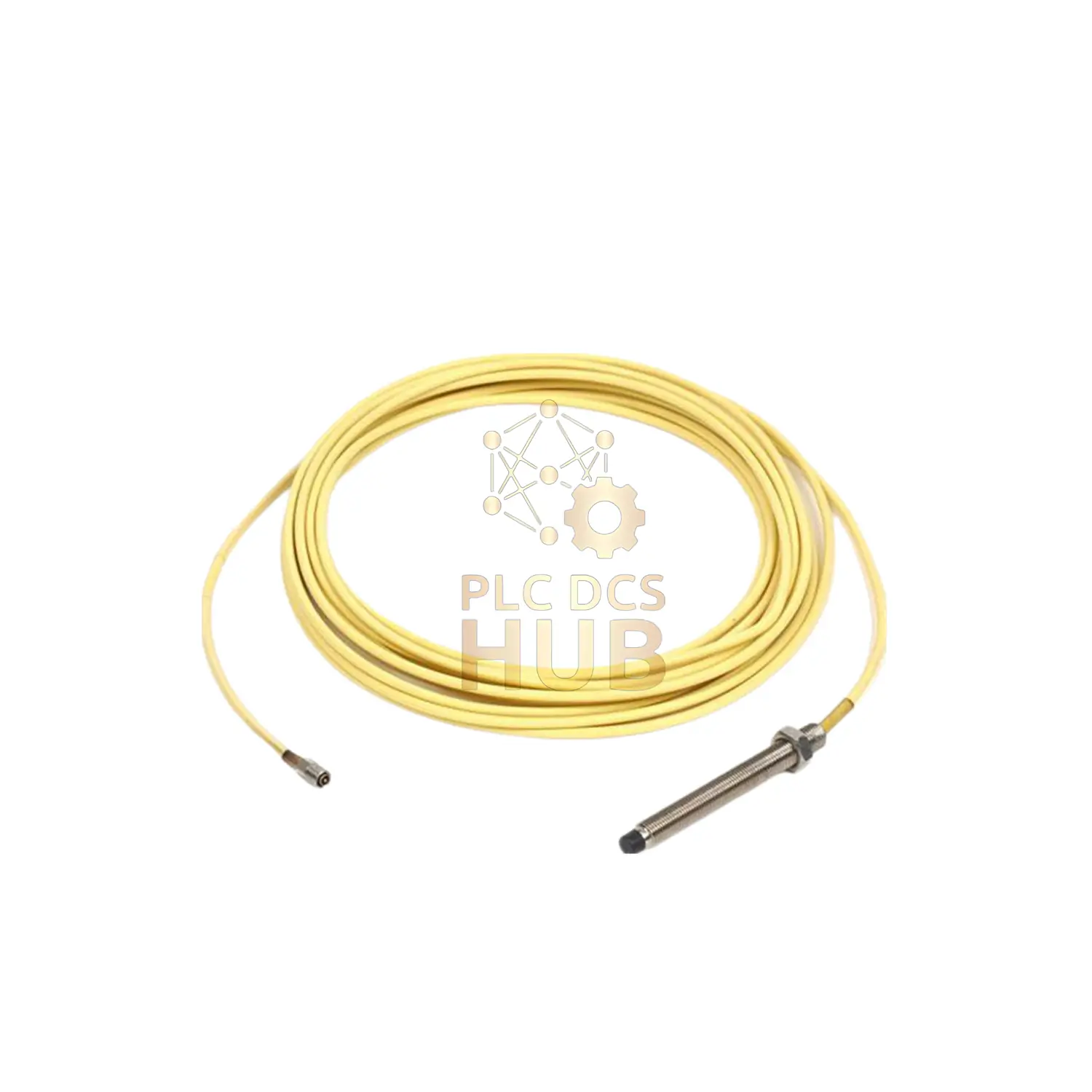

The Bently Nevada 21504-00-24-05-02 proximity vibration probe offers ultra-compact design with a 2.4-inch case and 0.5m cable. Ideal for space-limited installations, it features flush mounting (0mm unthreaded length) and resists chemicals like sulfuric acid. Perfect for high-precision vibration monitoring.
Technical Data
- Brand: Bently Nevada
- Model: 21504-00-24-05-02
- Measurement Range: 80 mils (2.0 mm)
- Output Signal: 200 mV/mil ±9.5%
- Frequency Response: 0-10 kHz (-5% at 10 kHz)
- Operating Temp: Probe: -34°C to +177°C | Proximitor: -51°C to +100°C
Suffix Breakdown (21504-)
- 00: 0mm Unthreaded Length (Flush Mount)
- 24: 2.4-inch Case Length
- 05: 0.5m Cable Length (±5in Tolerance)
- 02: Miniature Male Coaxial Connector
Applications
Use Case 1: Steam turbine shaft monitoring in power plants (high humidity environments).
Use Case 2: Paper mill roller alignment systems (corrosion-resistant performance).
Installation Tips
Secure using 3/8-24 threads. Calibrate at 10 mils (0.25mm) initial gap. Avoid cable stress during routing.
FAQ
Q: Can this probe handle steam exposure?
A: Yes, resists non-condensing humidity up to 95%.
Q: Is calibration required?
A: For ±4% accuracy, system calibration is recommended.
Safety Notes
Do not exceed -26V DC input. Replace if cable insulation is damaged.
