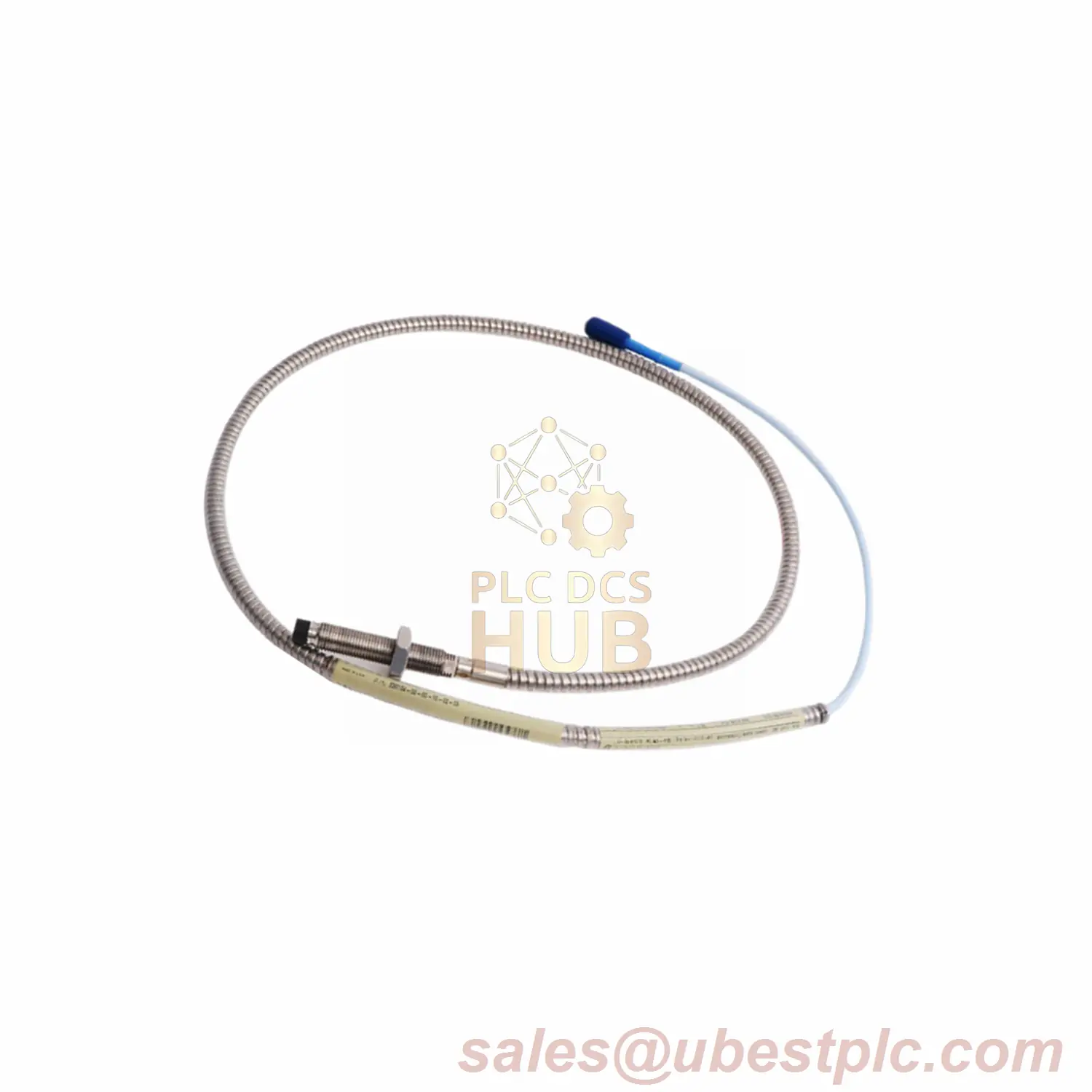

Bently Nevada 3300 XL 8 mm Proximity Probe
The Bently Nevada 3300 XL 8 mm Proximity Probe (Part No. 330103-00-03-10-02-00) is engineered for precision gap measurement and vibration analysis in demanding industrial environments. Featuring an M10x1 threaded design, a PPS probe tip, and a stainless steel case, this probe delivers reliable performance in high-temperature and high-pressure applications. Ideal for machinery requiring compact installation with a short unthreaded length.
Technical Data
- Brand: Bently Nevada
- Model: 330103-00-03-10-02-00
- Suffix Details: Unthreaded Length (00=0mm), Case Length (03=30mm), Total Length (10=1.0m), Connector (02=ClickLoc), Agency (00=None)
- Linear Range: 0.25 mm to 2.3 mm (10–90 mils), starting at -1 Vdc
- Output Signal: -1 to -17 Vdc (Optimal Gap: -9 Vdc / 1.27 mm)
- Resistance: 7.59Ω ±0.50 at 1.0m cable length
- Temperature Range: -52°C to +177°C (Standard); Extended: Tip up to +218°C, Cable up to +260°C
- Cable: 1.0m standard; supports 305m (1000ft) with shielded triad cable (16–24 AWG)
- Weight: 323 g/m (11.4 oz/ft)
Installation Guidelines
- Max thread engagement: 15 mm for M10x1.
- Avoid ambient temperatures below -34°C (-30°F) to prevent seal degradation.
- Use shielded triad cable for EMI protection.
Compatibility
Integrates with 3300 XL Proximitor Sensors. Compatible with AEx/Ex ia IIC T5 barriers (Drawing 141092) or non-incendive circuits (Drawing 140979).
Certifications
- ATEX/IECEx: AEx/Ex ia IIC T5-T1 Ga (Zone 0); AEx/Ex ec IIB+H2 T3-T1 Gc (Zone 2)
- Complies with IEC 68-2-3 humidity standards (3% ASF variation at 93% RH)
Application Examples
- Steam Turbines: Monitors shaft eccentricity and thrust position in power plants.
- Hydroelectric Turbines: Measures bearing vibration in high-moisture environments.
- Paper Manufacturing: Tends roll alignment in heavy-duty paper mills.
Contact: sales@ubestplc.com for pricing or custom pressure-seal testing requests.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
