Description
Description

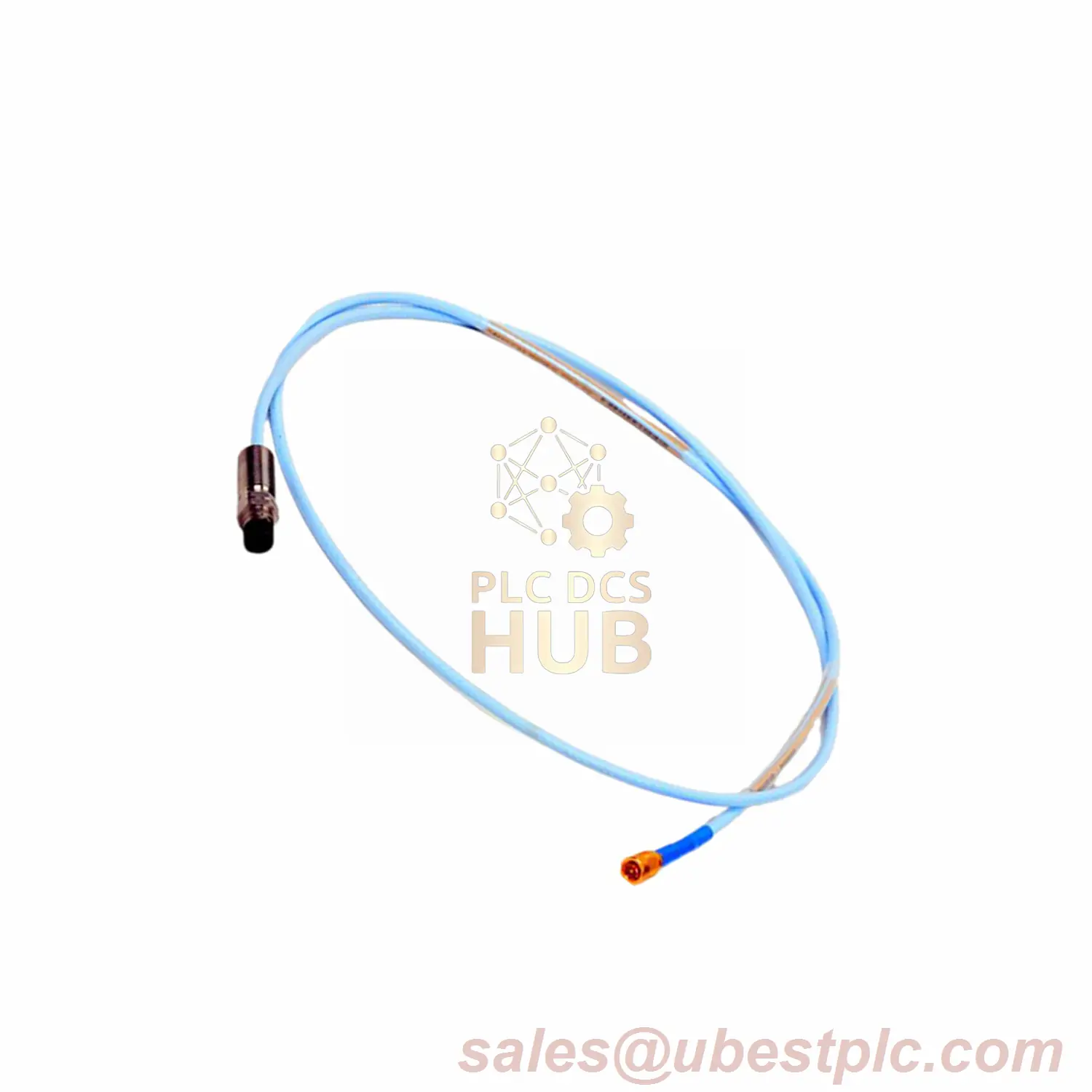

The Bently Nevada 330103-00-05-10-01-00 is a 3300 XL 8 mm Proximity Probe designed for precise vibration and position monitoring in industrial applications. Featuring an M10x1 threaded stainless steel case and a PPS probe tip, it ensures durability in harsh environments. The probe includes a Vitron® O-ring seal for pressure differential resistance and comes with a 1.0-meter ClickLoc coaxial cable for reliable connectivity.
Technical Data
- Brand: Bently Nevada
- Model: 330103-00-05-10-01-00
- Suffix Details:
- Unthreaded Length: 00 mm
- Case Length: 50 mm
- Total Length: 1.0 meter (3.3 feet)
- Connector: Miniature ClickLoc with protector
- Linear Range: 0.25–2.3 mm (10–90 mils)
- Output Signal: -1 to -17 Vdc (Recommended Gap: -9 Vdc @ 1.27 mm)
- Accuracy: Probe Resistance 7.59Ω ±0.50Ω at 1.0m
- Temperature Range:
- Standard: -52°C to +177°C
- Extended Tip: +218°C; Cable: +260°C
Installation Guidelines
- Wiring: Use 16–24 AWG shielded triad cable (max 305 meters).
- Thread Engagement: Max 15 mm for M10x1 threads.
- Avoid temperatures below -34°C to prevent seal damage.
Compatibility
Compatible with 3300 XL Proximitor Sensors. For intrinsic safety, pair with zener barriers (Drawing 141092) or galvanic isolators.
Certifications
- ATEX/IECEx: Class I Zone 0 (AEx/Ex ia IIC), Zone 2 (AEx/Ex nA/ec IIC)
- Compliant with IEC 68-2-3 humidity standards..
Contact Information
For inquiries: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
