Description

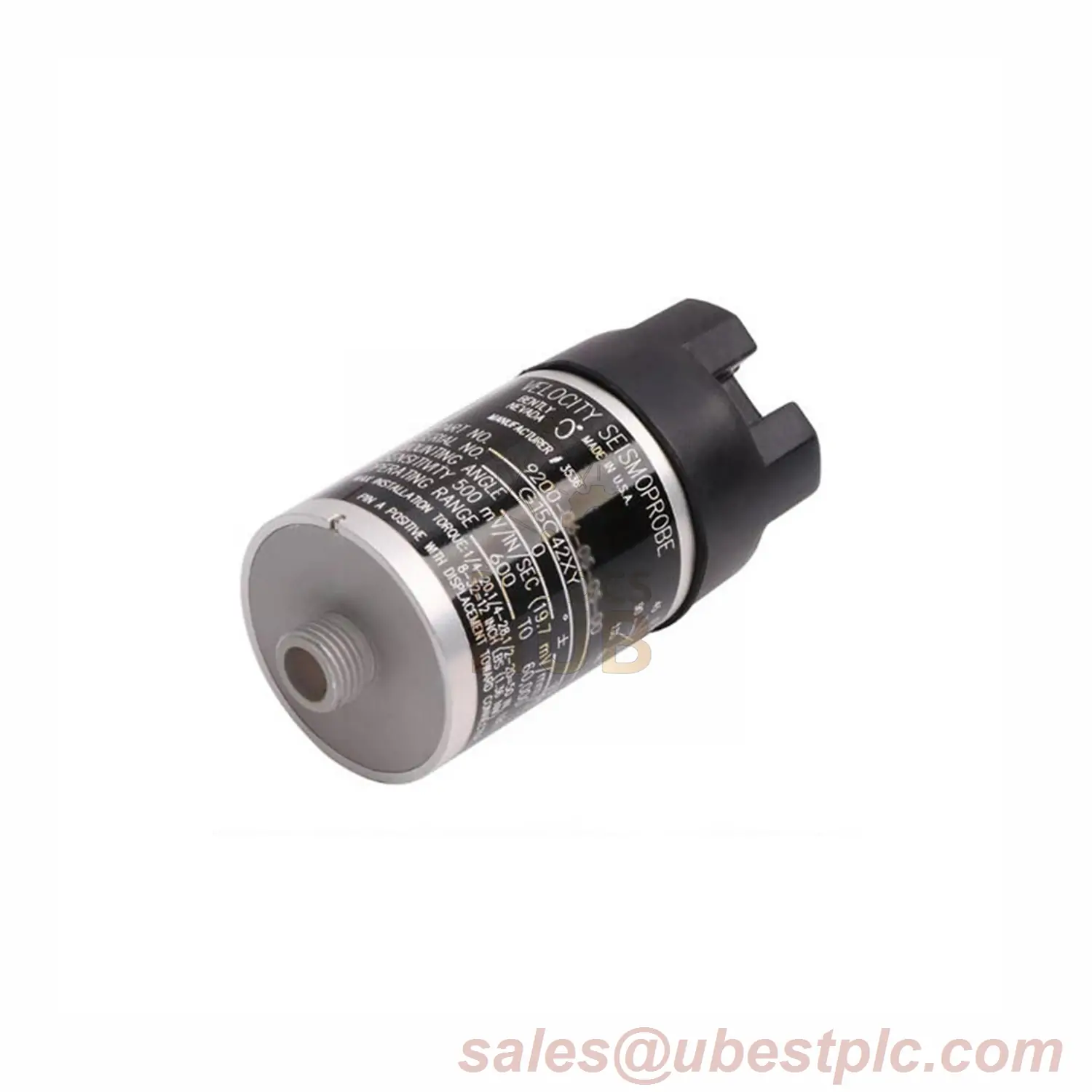

Bently Nevada 9200-01-01-10-00 Vibration Transducer
New original unit with 12-month warranty. Ready for immediate shipment worldwide.
Core Features
- Horizontal mounting (0° ±2.5°)
- M10×1 metric mounting stud
- Top-mounted connector
- 4.5Hz low-frequency detection
Model Number Breakdown
- 9200 – Base transducer model
- 01 – Horizontal mounting (0°)
- 01 – Top connector
- 10 – M10×1 stud base
- 00 – Standard version
Technical Specifications
- Frequency Range: 4.5Hz to 100Hz
- Sensitivity: 20mV/mm/s ±5%
- Operating Temp: -29°C to +121°C
- Weight: 300g (10.5oz)
- Housing: Anodized aluminum
Installation Guide
- Use M10×1 threaded mounting
- Ensure horizontal orientation
- Connect to 10kΩ terminal
- Keep connector accessible
Frequently Asked Questions
Q: Can this monitor gearbox vibrations?
A: Yes, ideal for gear mesh frequency monitoring
Q: Is it suitable for outdoor use?
A: Yes, dust/moisture resistant (non-submerged)
Q: What’s the difference between M10 and 1/4-20 mounts?
A: M10 is metric thread, 1/4-20 is imperial – choose based on your equipment
Q: How does horizontal mounting affect performance?
A: Must be installed within ±2.5° of horizontal for accurate readings
Package Contents
- 9200 transducer unit
- M10×1 mounting stud
Maintenance & Care
- Expected lifespan: 7+ years
- Inspect every 12 months
- Clean with dry cloth only
- Check connections annually
Important Notes
- Do not exceed 2.54mm displacement
- Maximum 95% relative humidity
- Requires proper termination
