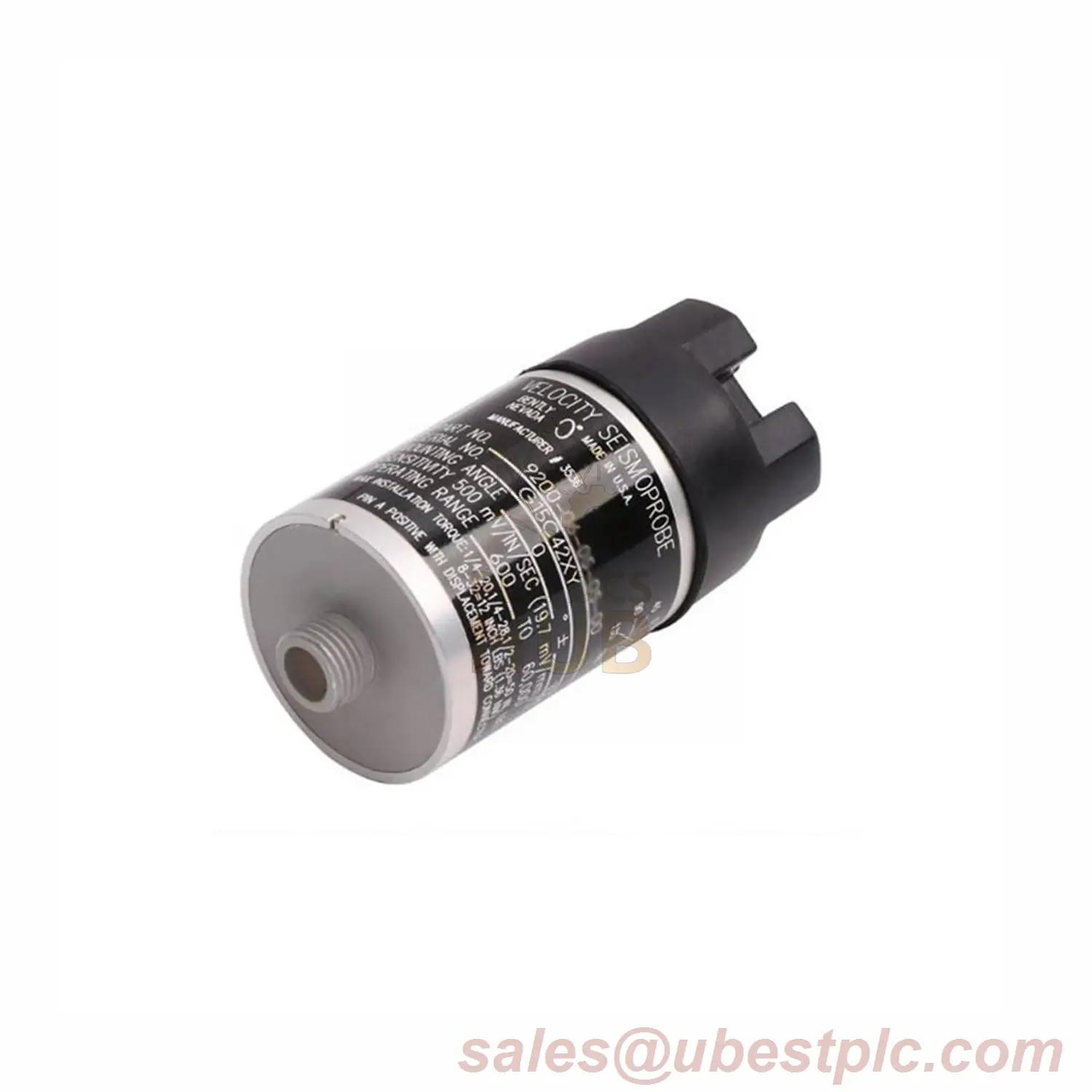

Bently Nevada 9200-03-05-10-00: Your Go-To Two-Wire Vibration Sensor for Industrial Precision
Why Choose This Transducer?
Factory-fresh, fully sealed, and backed by a 12-month warranty—this Bently Nevada sensor delivers reliable velocity measurements for pumps, motors, and gearboxes. Built tough for industrial use, it’s your partner in preventing costly machine failures.
Key Specs at a Glance
Brand: Bently Nevada | Model: 9200-03-05-10-00
Measurement: Up to 25 mm/s velocity (1 in/s) at 100 Hz; 2.54 mm peak-to-peak displacement
Output: 20 mV/mm/s (500 mV/in/s) ±5% (10 kΩ load)
Frequency Range: Starts at 4.5 Hz (270 cpm)
Temp Range: -29°C to +121°C (-20°F to +250°F)
Size: 102 mm tall (4 in), 41 mm wide (1.6 in) | Weight: 300g (10.5 oz)
What’s in the Model Suffix?
03: 90±2.5° mounting angle, 4.5 Hz min frequency
05: Top-mount terminal block connector
10: Circular base with M10X1 stud
00: No special agency approvals needed
Easy Installation Steps
Mount at 90±2.5° for best accuracy.
Use the M10X1 stud on its circular base.
Connect via the top terminal block; ensure 10 kΩ load between pins “A” & “B”.
Works with Your Setup
Compatible with most vibration systems. For extreme heat (up to +204°C/+400°F), pair with 74712 models.
Package & Delivery
Shipped in original factory packaging. Choose Fedex, UPS, or DHL for fast delivery.
Where It Shines
Perfect for:
Manufacturing (pumps, fans)
Energy (turbines, generators)
Transportation (motors, gearboxes)
Stay Safe
Max humidity: 95% (non-condensing) or 100% with integral cable.
Keep temp below +121°C (+250°F).
Use 10 kΩ load for correct readings.
Quick Answers
Q: Warranty length? A: 12 months.
Q: Min frequency? A: 4.5 Hz (270 cpm).
Q: High-temp option? A: 74712 handles up to +204°C (+400°F).
