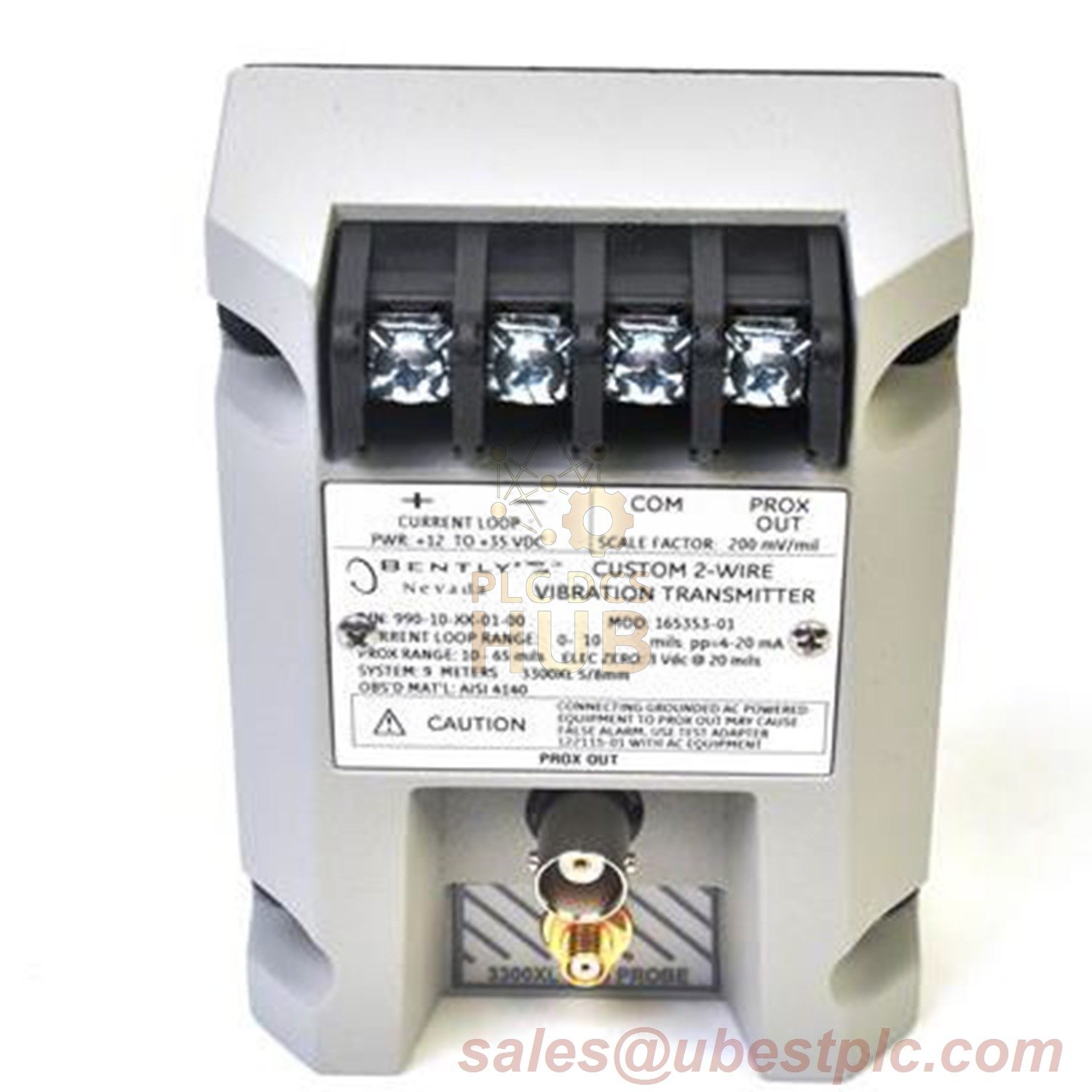

The Bently Nevada 990-05-70-03-00 2-Wire Vibration Transmitter is engineered for measuring vibration using a 3300 NSv Proximity Probe. It features a high level of accuracy, temperature stability, and wide frequency response. This transmitter is ideal for applications that require robust monitoring in environments with a risk of explosion or hazardous conditions.
Technical Data
Here is a detailed breakdown of the specifications:
| Specification | Value |
|---|---|
| Brand | Bently Nevada |
| Model | 990-05-70-03-00 |
| Suffix Information | 05 = 0-5 mils pp (0-125 µm pp) |
| Power Input | +12 to +35 Vdc |
| Signal Output | 4-20 mA |
| Accuracy | ±1.5% over full-scale range |
| Probe Gap | 0.5 to 1.75 mm (20 to 55 mils) |
| Frequency Response | 5 Hz to 6,000 Hz +0, 3 dB |
| Temperature Stability | ±10% from 0°C to +70°C (+32°F to +158°F) |
| Operating Temperature | -35°C to +85°C (-31°F to +185°F) |
| Storage Temperature | -52°C to +100°C (-62°F to +212°F) |
| Weight | 0.43 kg (0.9 lbm) |
| Dimensions | 100 x 73.9 x 53.3 mm |
Suffix Details:
- 05: Full-scale range of 0-5 mils pp (0-125 µm pp).
- 70: System length of 7.0 meters (23.0 feet).
- 03: DIN clips and screws
- 00: Not required
