Description:

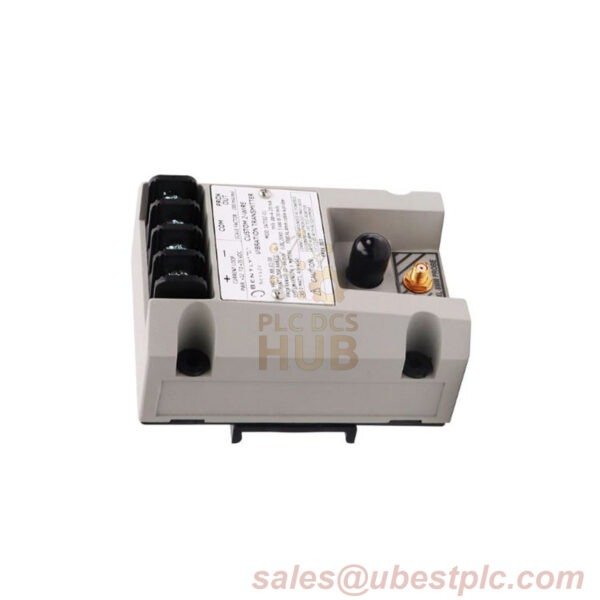

The Bently Nevada 990-05-XX-03-CN Vibration Transmitter is designed to monitor vibration conditions with high accuracy. It is ideal for applications that require precise vibration monitoring, such as rotating machinery, industrial automation systems, and predictive maintenance solutions. Made in the U.S.A, this transmitter is compatible with the 3300 NSv Proximity Probe and comes with various customization options to suit different system requirements. With an input range of 12-35 Vdc and a 4-20 mA output signal, this transmitter offers a reliable solution for vibration measurement in both non-hazardous and hazardous locations.
Technical Data:
| Specification | Value |
|---|---|
| Brand | Bently Nevada |
| Model | 990 Vibration Transmitter |
| 990-05-XX-03-CN
Suffix Information |
XX: System Length (50 = 5.0m, 70 = 7.0m) |
| 03: Mounting (DIN clips and screws) | |
| CN: Agency Approval (Chinese Country Specific) | |
| Input | Accepts 1 non-contacting 3300 NSv Probe |
| Power Supply | 12 to 35 Vdc |
| Signal Output | 4 to 20 mA |
| Output Impedance | 10 kΩ for 10 MΩ load |
| Probe Gap | 0.5 – 1.75 mm |
| Loop Resistance | Max 1,000 Ω |
| Current Limiting | 23 mA typical |
| Frequency Response | 5 Hz to 6,000 Hz |
| Temperature Range | Operating: -35°C to +85°C (Storage: -52°C to +100°C) |
| Weight | 0.43 kg |
| Dimensions | 100 x 73.9 x 53.3 mm |
