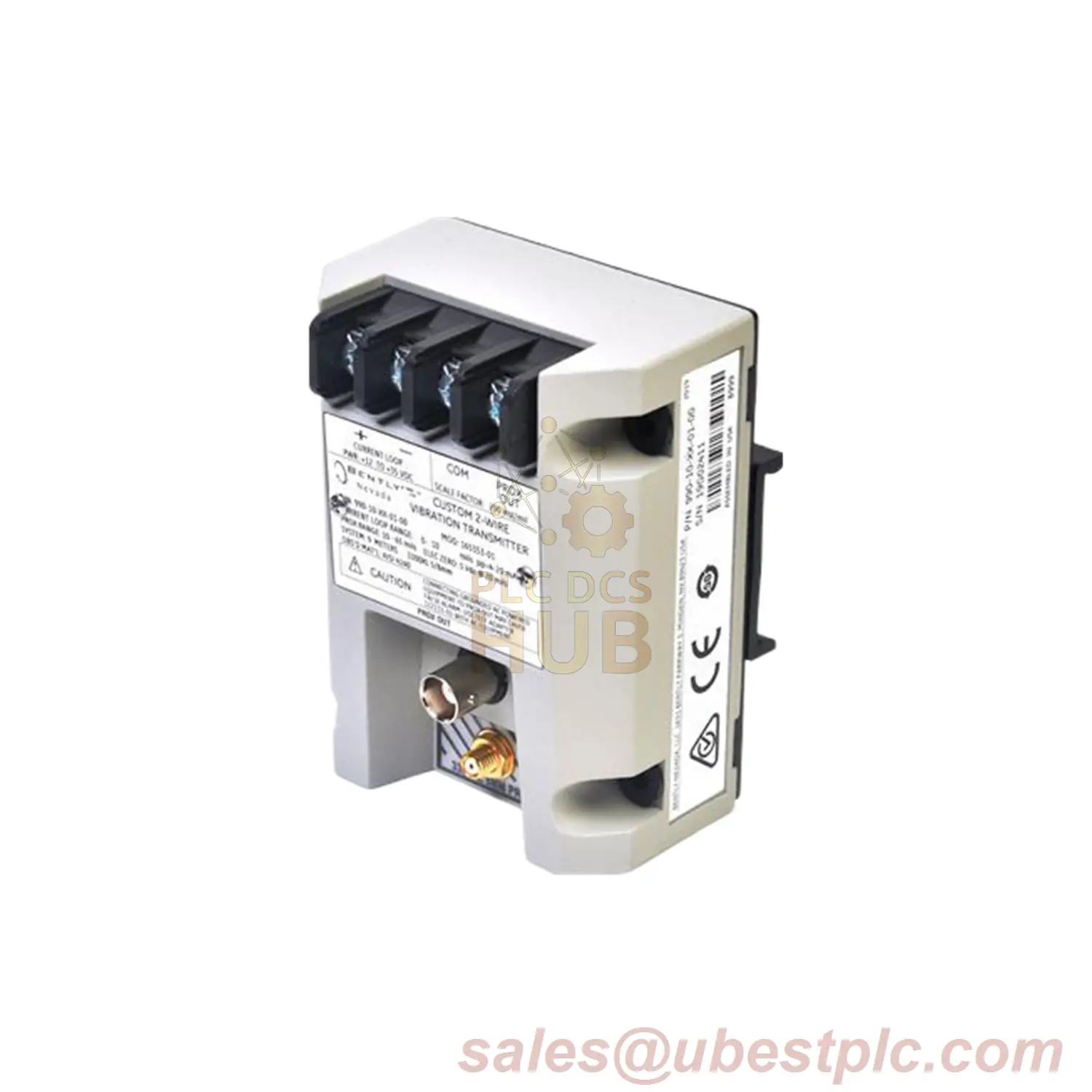

990-08-50-01-01 – Bently Nevada 990 Vibration Transmitter 12-35VDC

Description

Bently Nevada 990 Vibration Transmitter: Heavy-Duty CSA-Certified Monitor

Built for Demanding Facilities

→ Measures 0-8 mils (200μm) vibrations
→ Pre-mounted on 35mm DIN rail (clips included)
→ CSA Division 2 certified (model 990-08-50-01-01)

Critical Numbers for 990-08-50-01-01

⚡ Power: 12-35VDC (28V ideal)
???? Accuracy: ±1.5% full range
❄️ Temp Range: -40°C to +85°C
???? Cable Limit: 3m BNC connections
⏱️ Response: 5Hz-6kHz frequency

Works Best In

• Wind turbine gearboxes
• Food packaging lines
• Automotive assembly robots
• Plastic extrusion systems

3-Step Setup

1. Snap onto DIN rail
2. Set probe 0.5-1.75mm gap
3. Connect 28V power

Global Support

✓ 12-month full warranty
✓ Ships via FedEx/DHL/UPS
✓ Optional COO documents

Technical Edge

• Handles 1000Ω loop resistance
• Auto-fault detection (<3.6mA in 100μs)
• Works with 9.5mm+ metal targets

Common Questions

Q: CSA approval details?
A: Certified for Division 2 areas
Q: Waterproof rating?
A: Non-hazardous zones only
Q: Replacement parts?
A: Available through authorized dealers
