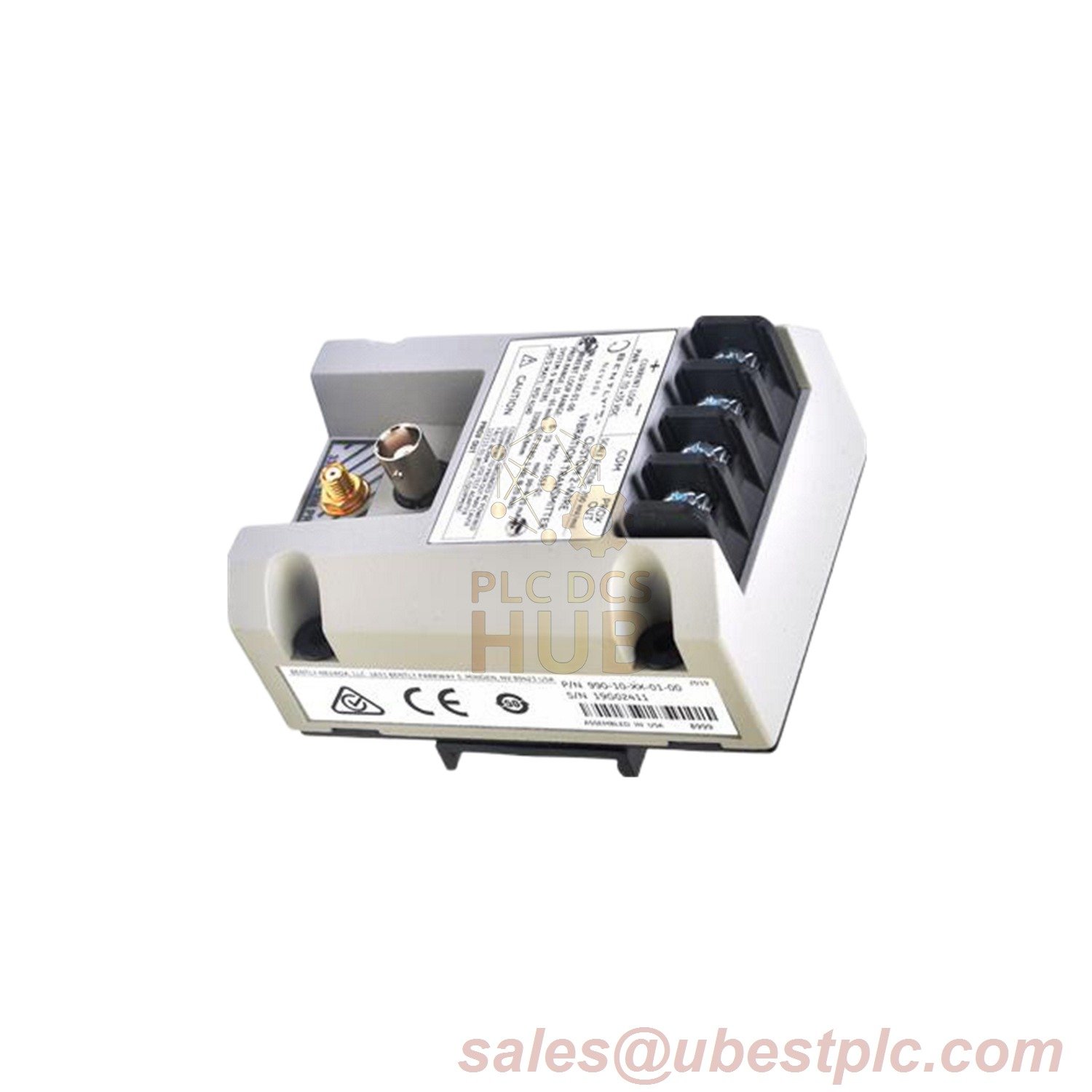

Bently Nevada 990-08-70-01-00 | Heavy-Duty Vibration Monitoring Simplified
???? Key Metrics
- Full Scale: 08 (0-8 mils pp / 0-200 µm pp)
- System Length: 70 (7.0 meters / 23.0 feet)
- Mounting: 01 (35 mm DIN rail clips)
- Compliance: 00 (No certifications required)
???? Power & Performance for 990-08-70-01-00
- Voltage: +12 to +35 Vdc
- Output Signal: 4-20 mA (2-wire)
- Accuracy: ±1.5% at 250Ω load
- Response Time: <3.6 mA within 100 µs during faults
- Frequency Range: 5 Hz–6,000 Hz (±3 dB)
⚙️ Installation & Compatibility
- Probe Type: 3300 NSv Proximity Probe
- Min Target Size: 9.5 mm (0.375″)
- Probe Gap: 0.5–1.75 mm (20–55 mils)
- Cable Limit: 3 meters (10 ft) from BNC
???? What’s in the Box?
- Transmitter unit
- 35 mm DIN rail clips
- User manual
- 12-month warranty
- COO (add-on option)
???? Fast Global Delivery
FedEx | UPS | DHL | 3-5 business days
???? Real-World Uses
- Paper Mills: Monitor roller vibrations to prevent sheet breaks.
- Water Treatment: Track pump health in non-hazardous zones.
❓ Quick Answers
Q: Works in hazardous areas?
A: No – rated for non-hazardous zones only.
Q: Power consumption?
A: 23 mA max at 35V.
Q: Warranty coverage?
A: Defects covered for 12 months.
