Description
Overview

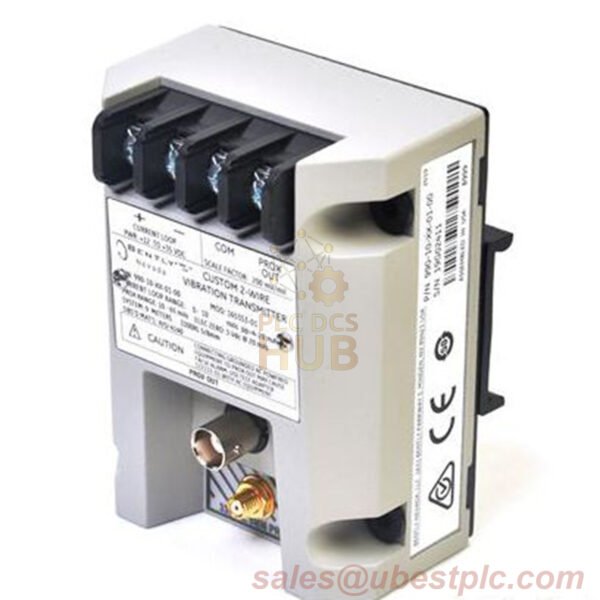

The Bently Nevada 990-10-XX-01-00 Vibration Transmitter is a high-performance vibration monitoring device designed to provide precise measurements for rotating machinery in industrial settings. It accepts input from the 3300 NSv Proximity Probe and extension cables, delivering highly accurate vibration data. This transmitter is ideal for critical machine monitoring applications, offering reliable output for maintenance and condition monitoring systems..
Technical Data
| Specification | Value |
|---|---|
| Brand | Bently Nevada |
| Model | 990 Vibration Transmitter 990-10-XX-01-00 |

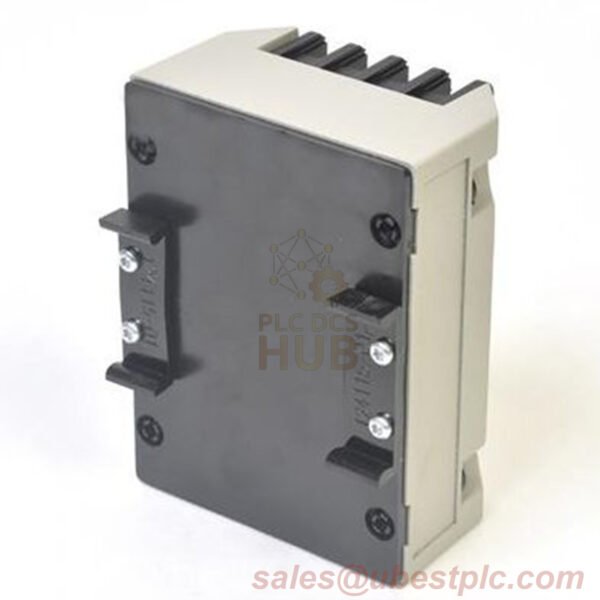

| Suffix Information | 01: 35mm DIN rail clips (mounting) |
| Input | Accepts 1 non-contacting 3300 NSv Proximity Probe |
| Power Supply | +12 to +35 Vdc |
| Output | 4 to 20 mA DC signal in 2-wire configuration |
| Loop Resistance | Max 1,000 Ω at 35 Vdc |
| Probe Gap | 0.5 to 1.75 mm (20 to 55 mils) |
| Temperature Operating Range | -35°C to +85°C (-31°F to +185°F) |
| Storage Temperature | -52°C to +100°C (-62°F to +212°F) |
| Weight | 0.43 kg (0.9 lbs) |
| Dimensions | 10073.953.3 mm |
| Frequency Response | 5 Hz to 6,000 Hz ±0.3 dB |
| Maximum Target Size | 9.5 mm (0.375 in) diameter |
| Temperature Stability | ±10% of scale factor from 0°C to +70°C (+32°F to +158°F) |
