Description
Overview

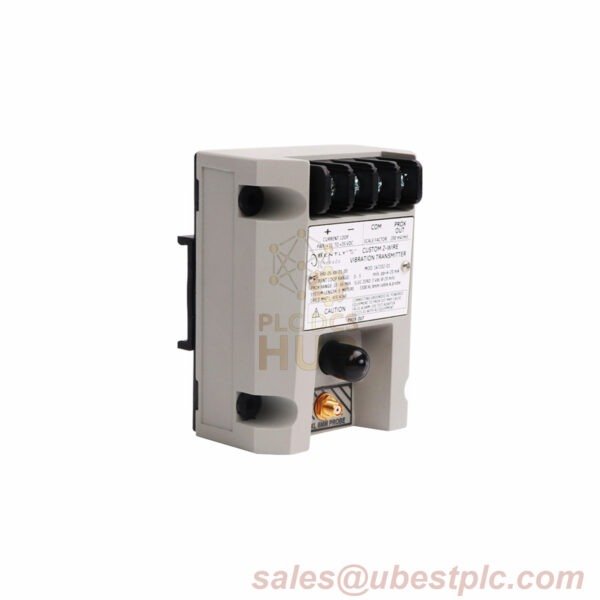

The Bently Nevada 990-10-XX-02-00 Vibration Transmitter is an advanced, high-performance vibration monitoring device designed for industrial applications requiring precise vibration measurements. Made in the U.S.A., this transmitter is engineered to work seamlessly with the 3300 NSv Proximity Probe and extension cable, ensuring reliable and accurate performance across various conditions.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 990 Vibration Transmitter |
| 990-10-XX-02-00 Suffix Information | 10:0-10 mils pp (0-250 μm pp) XX: Custom system length (50/70); 02: Bulkhead screws 00: Not required |
| Full-Scale Range | 0-8 mils pp (0-200 μm pp) |
| Mounting Option | DIN clips and screws |
| Power Input | +12 to +35 Vdc |
| Signal Output | 4-20 mA |
| Probe Gap | 0.5 to 1.75 mm (20 to 55 mils) |
| Target Size | Min. 9.5 mm (0.375 in) |
| Operating Temp. | -35°C to +85°C (-31°F to +185°F) |
| Storage Temp. | -52°C to +100°C (-62°F to +212°F) |
| Weight | 0.43 kg (0.9 lbm) |
| Dimensions | 100 x 73.9 x 53.3 mm |
