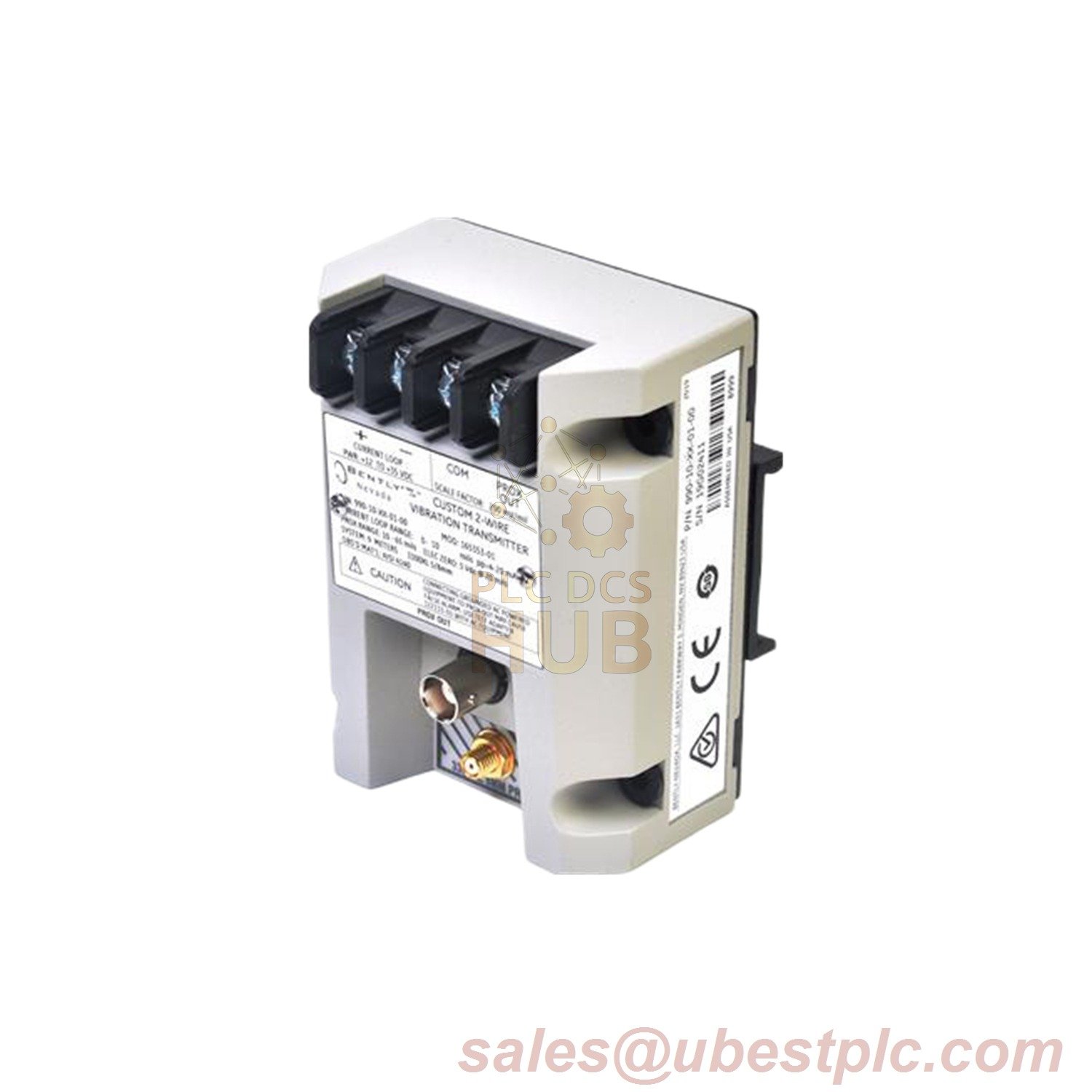

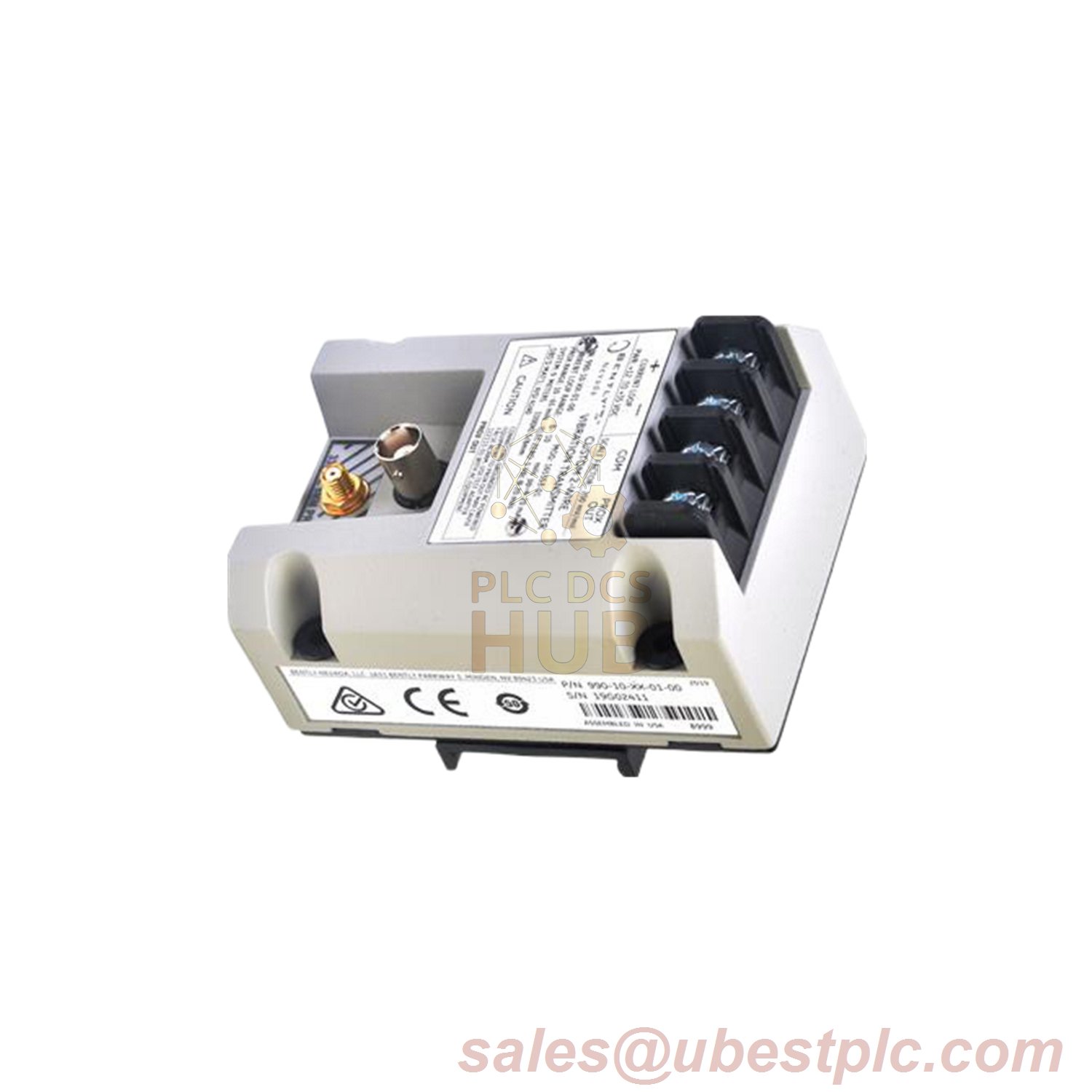

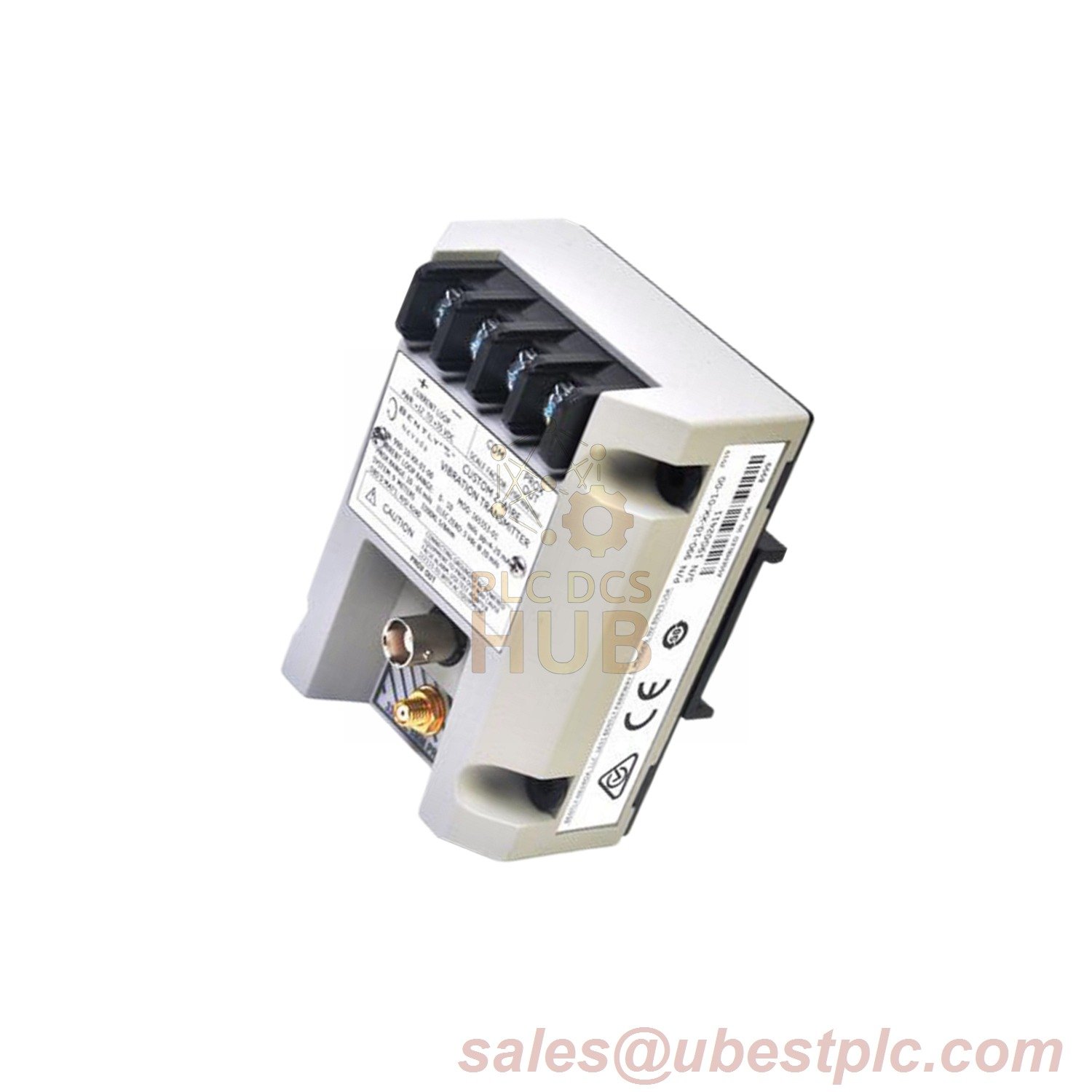

990 Vibration Transmitter 990-04-XX-03-00 Bently Nevada

Bently Nevada Vibration Transmitter

Description: The Bently Nevada 990-04-XX-03-00 is a high-precision vibration transmitter designed for industrial machinery monitoring. It integrates a non-contacting 3300 NSv proximity probe for accurate displacement measurement, supporting 4-20mA output in a rugged, compact design. Ideal for predictive maintenance in harsh environments.

Technical Data

• Brand: Bently Nevada
• Model: 990-04-XX-03-00
• Suffix Details:
  • -04: 0-4 mils pp (0-100 μm pp) full-scale range
  • -XX: Customizable probe length
  • -03: DIN clips & screws mounting
  • -00: No agency approval required
• Weight: 0.43 kg (0.9 lbm)
• Operating Voltage: +12 to +35 Vdc
• Output Signal: 4-20 mA (2-wire), ±1.5% accuracy
• Frequency Response: 5 Hz – 6,000 Hz (±3 dB)
• Probe Gap Range: 0.5–1.75 mm (20–55 mils)
• Temperature Range: -35°C to +85°C (-31°F to +185°F)
• Dimensions: 100 × 73.9 × 53.3 mm
