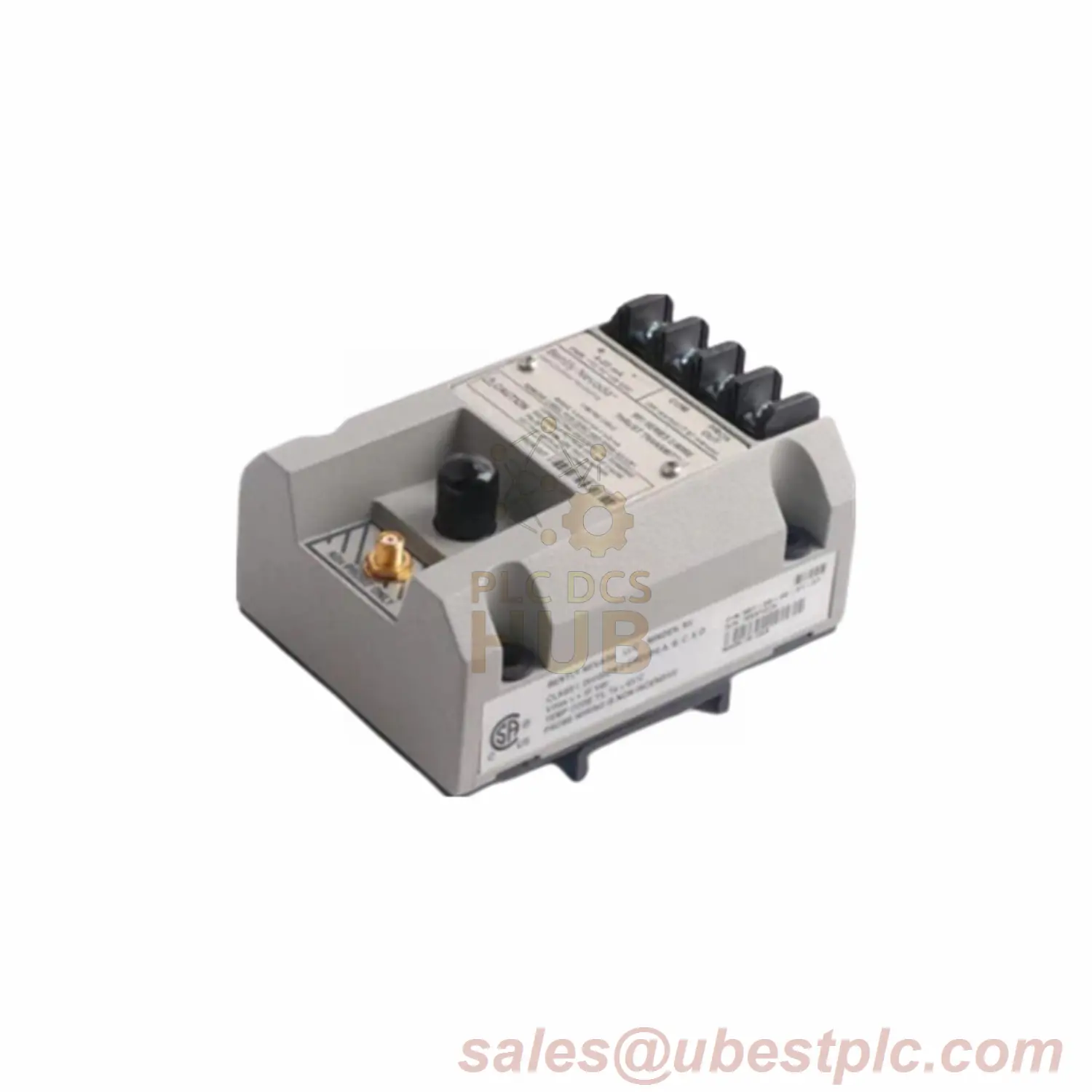

991-06-50-02-00 Bently Nevada 991 – Thrust Transmitter 5.0 Meters

Description

Bently Nevada 991-06-50-02-00 Vibration Transmitter

⚡ INDUSTRIAL-GRADE AXIAL MONITORING | 4-20mA OUTPUT | MADE IN USA

Model Decoded: 991-06-50-02-00

• 06: 0.6-0-0.6mm Full-Scale Range
• 50: 5.0m (16.4ft) System Cable
• 02: Bulkhead Screw Mount
• 00: No Agency Certifications Required

Core Specifications

• Output: 4-20mA Two-Wire Signal
• Accuracy: ±1.5% of Full Scale
• Range: 0.25-1.65mm (0.01″-0.065″)
• Power: 12-35VDC Input
• Weight: 0.43kg (0.9lbs)

Extreme Environment Ready

• Operates at -35°C to +85°C (-31°F to 185°F)
• Stores Safely at -51°C to +100°C (-60°F to 212°F)
• 1,000Ω Max Loop Resistance
• 23mA Overcurrent Protection

Safety & Diagnostics

• Auto Fault Detection: Drops to <3.6mA in 100µs
• Instant Recovery: Resumes in 0.1s Post-Fault
• Non-Interacting Zero/Span Adjustments
• 3300 NSv Probe Compatibility

Key Applications

• Steam Turbine Thrust Monitoring
• Pipeline Compressor Shafts
• Hydroelectric Generator Alignment
• Marine Propulsion Systems
• Mining Conveyor Drive Units

Installation Guide

• DIN Rail or Bulkhead Screw Mount
• Use 18-24AWG Shielded Cables
• 250Ω Minimum Loop Resistance
• Test Fault Response Post-Install

Package Includes

• 991 Series Transmitter Unit
• Bulkhead Mounting Hardware
• 12-Month Warranty
