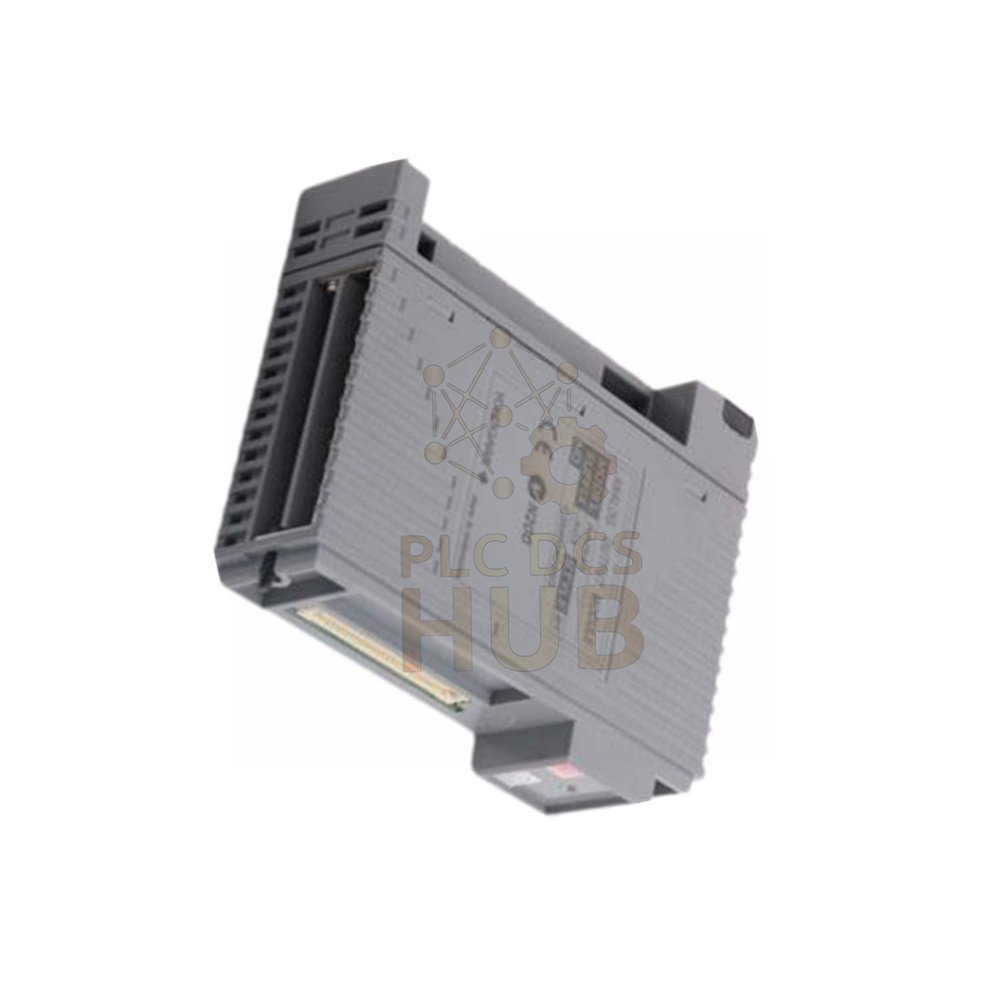

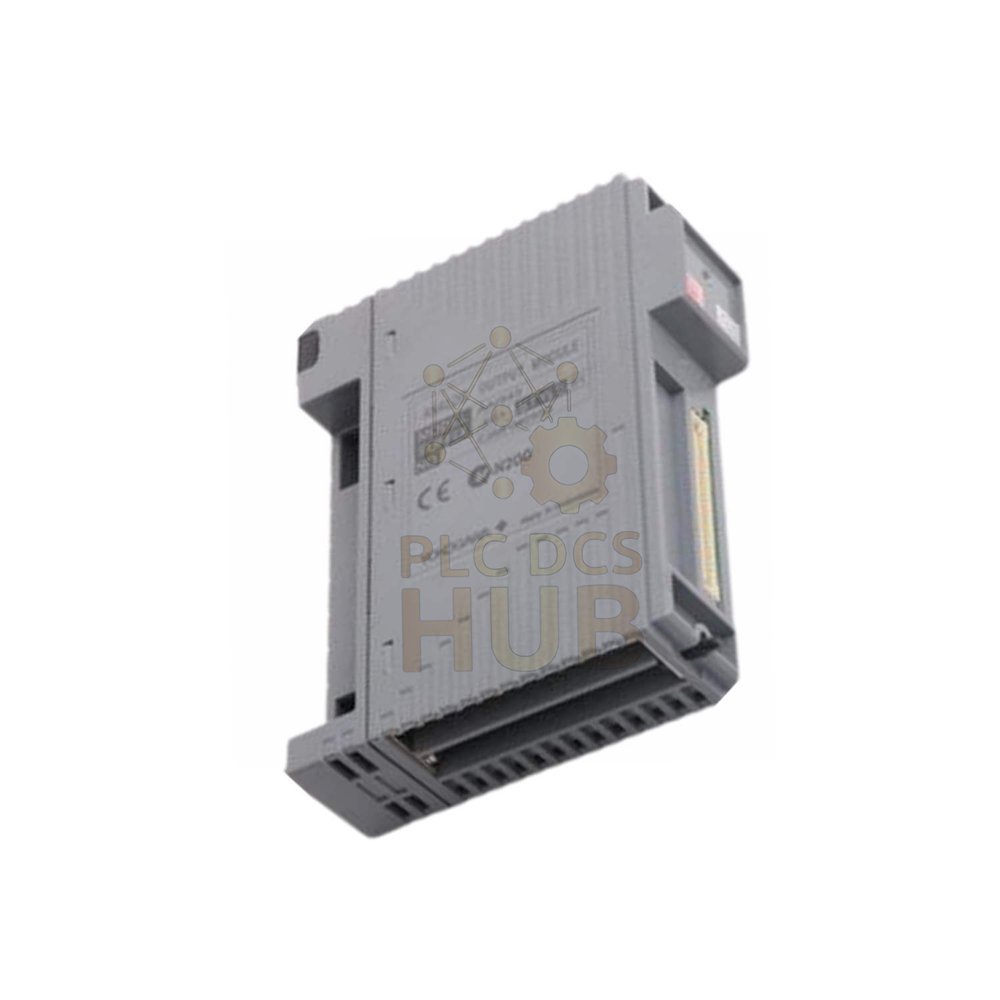

AAI543-S03 Yokogawa Current Output Module 16-Channel Isolated I/O

Description

Product Overview

• AAI543-S03 is a high-precision analog output module.
• Designed by Yokogawa for advanced industrial automation.
• Part of the reliable AAI500 series I/O platform.
• Supports 16 isolated current output channels.
• Each channel delivers stable 4-20 mA analog output.
• Optimized for process control systems including Yokogawa Centum VP.
• Fast 10 ms data refresh improves process response.
• Industrial design supports harsh environments.
• Excellent electrical isolation improves safety and signal stability.
• Ideal for distributed control and plant monitoring.

Core Functional Capabilities

• 16 independent output channels ensure flexible signal distribution.
• Each channel provides isolated analog current output.
• Supports standard 4-20 mA control loop.
• Fast update rate improves control loop performance.
• Stable operation in redundant controller systems.
• Low drift during ambient temperature change.
• Accurate current output for precise actuator control.

Technical Data

• Brand: Yokogawa
• Model: AAI543-S03
• Module Type: Analog Current Output Module
• Series: AAI500 I/O Series
• Output Channels: 16 isolated channels
• Output Signal Range: 4 to 20 mA
• Allowable Load Resistance: 0 to 750 Ω
• Accuracy: ±48 μA
• Temperature Drift: ±16 μA per 10°C
• Data Update Period: 10 ms
• Circuit Open Detection: Less than 0.65 mA
• Withstanding Voltage: 1500 V AC for 1 minute
• Power Consumption: 230 mA at 5 V DC
• 540 mA at 24 V DC
• Operating Temperature: -20°C to 70°C
• Environmental Protection: ISA Standard G3 option
• External Communication: KS cable interface or pressure clamp terminal
• Weight: Approximately 0.4 kg
• HART Communication: Not supported

Suffix Structure

• Model Hierarchy
  • AAI543
    • -S : Standard model
    • -0 : Standard switch-over response
    • -3 : ISA G3 environment + wide temperature

Option Configuration

• /A4S00
  • Pressure clamp terminal block
  • Terminal board model ATA4S-00
  • Reliable field wiring connection

Measurement and Signal Performance

• Measurement Range: 4-20 mA current output.
• Resolution: High precision current control.
• Linearity: Stable linear analog response.
• Temperature Range: −20°C to 70°C.
• Environmental Resistance: ISA G3 industrial environment.
• EMI Protection: Electrical isolation improves interference resistance.
• Maintains output stability during plant disturbances.

Installation Guidance

• Install the module inside compatible Yokogawa I/O racks.
• Ensure proper grounding before power connection.
• Connect field devices through the ATA4S terminal block.
• Use the dedicated KS cable interface adapter.
• Check wiring polarity before system startup.
• Follow plant electrical safety standards.

Commissioning and Maintenance

• Automatic channel detection during system startup.
• Fast configuration through control system interface.
• Supports simple replacement without rewiring.
• LED indicators assist channel diagnostics.
• Low maintenance design improves uptime.
• Routine inspection ensures long-term reliability.

System Compatibility

• Fully compatible with Yokogawa Centum VP control systems.
• Integrates with Yokogawa distributed control architecture.
• Works with KS cable interface adapters.
• Supports ATA4S terminal boards.
• Suitable for DCS analog output expansion.

Certifications and Industrial Compliance

• ISA Standard G3 environmental protection.
• Industrial electrical isolation standards.
• Designed for continuous process automation operation.
• Manufactured according to strict Yokogawa quality standards.

Typical Industrial Applications

• Oil and gas processing plants.
• Petrochemical production lines.
• Power generation facilities.
• Water treatment automation systems.
• Industrial manufacturing process control.
• Large distributed control system environments.

Diagnostics and Monitoring

• Built-in circuit open detection.
• Real-time output channel monitoring.
• Supports fast troubleshooting.
• Helps engineers detect wiring issues quickly.
• Improves overall system reliability.

Packing List

• 1 × AAI543-S03 Yokogawa Output Module
• Protective industrial packaging
• Product inspection verification
• Installation guidance reference

Shipping and Warranty

• Warranty: 12 months.
• Global shipping service available.
• Courier partners include FedEx, UPS, and DHL.
• Anti-static industrial packaging ensures safe transport.

FAQ

• Is the AAI543-S03 suitable for Centum VP systems?
• Yes. It integrates directly with Yokogawa DCS architecture.

• What output signals does the module support?
• Each channel outputs a standard 4-20 mA control signal.

• Can this module detect wiring faults?
• Yes. The module detects open circuits below 0.65 mA.

• How many field devices can connect?
• The module supports up to sixteen independent output loops.

• What environment suits this module?
• Industrial plants with ISA G3 contamination protection.

• How to select the correct Yokogawa analog output module?
• Confirm channel count, output type, and system compatibility.
• Check temperature rating and environmental protection level.
• Verify terminal board and cable adapter requirements.

• What experience helps ensure stable installation?
• Use shielded cables in high-noise environments.
• Separate analog lines from power cables.
• Perform loop testing during commissioning.
