Product Description
Brand: AB
Series: Stratix 5700
Model: 1783-BMS10CL

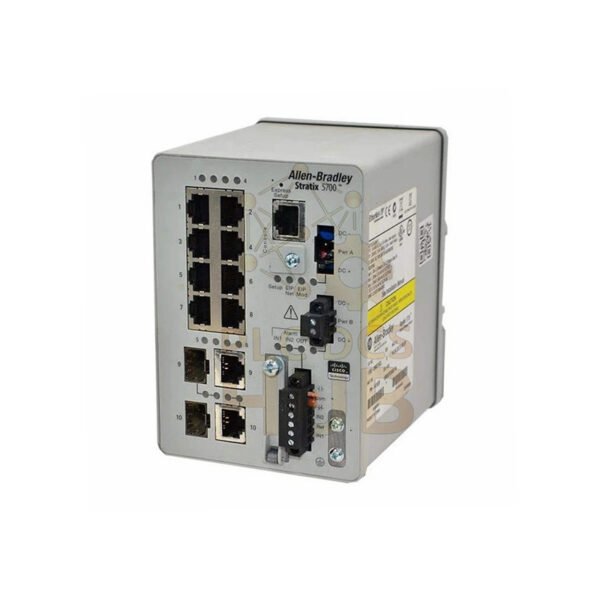

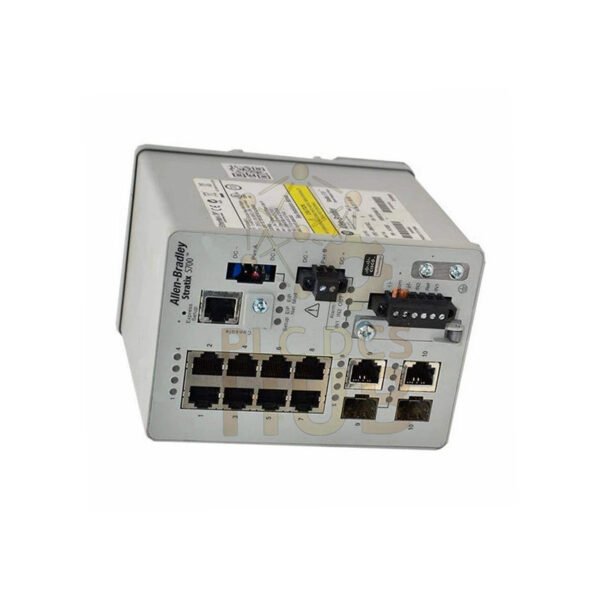

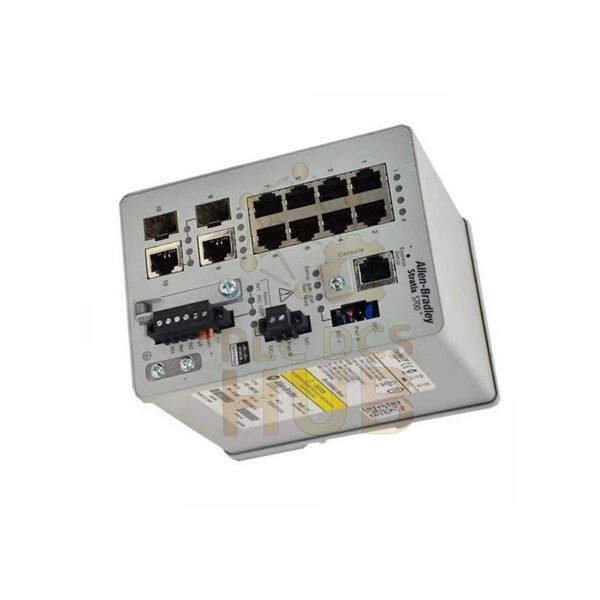

The AB 1783-BMS10CL Stratix 5700 switch is a compact industrial Ethernet solution.
It supports stable communication in harsh automation environments.
The unit fits control cabinets with limited space.
It delivers reliable data flow for factory and process networks.
The switch supports secure managed functions.
It operates with low power and high EMC resistance.
DIN rail mounting simplifies installation.
The Lite firmware meets essential network needs.
Core Advantages
- High reliability for industrial control systems
- Wide temperature range from -40°C to +60°C
- Strong EMC immunity against noise and surge
- Compact DIN rail design saves cabinet space
- Low power consumption reduces system heat
Technical Specifications
- Ethernet Ports: 8 × 10/100 Mbps RJ45
- Combo Ports: 2 × RJ45 / Mini-GBIC
- Total Ports: 10
- Network Type: Industrial Ethernet
- Management: Managed switch
- Firmware: Lite
- Layer Support: Basic switching functions
Electrical Performance
- Input Voltage: 12–48 V DC, Class 2 / SELV
- Max Power Draw: 17 W
- Power at 24 V DC: 12.5 W at 40°C
- Alarm Relay: 1 A at 30 V DC
- Isolation Voltage: 50 V
Environmental & EMC Resistance
- Operating Temperature: -40°C to +60°C
- Protection Rating: IP30
- ESD Immunity: 15 kV air, 8 kV contact
- Surge Protection: ±2 kV on Ethernet ports
- Shock Resistance: 30 g operating
Mechanical Design
- Width: 9.14 cm
- Height: 12.95 cm
- Depth: 11.67 cm
- Weight: Approx. 1.25 kg
- Mounting: DIN rail (top-hat)
Installation Guide
- Mount directly on standard DIN rail
- Connect DC power using 0.5 mm² wire
- Ensure proper grounding with 4 mm² cable
- Observe correct strip lengths for terminals
Commissioning & Maintenance
- Quick startup with default Lite firmware
- LED indicators support fast diagnostics
- No fan design reduces maintenance
- Stable operation lowers downtime risk
Compatibility
- Compatible with PLC and DCS systems
- Works with standard industrial Ethernet devices
- Supports copper and fiber connections
Certifications & Compliance
- IEC 61000-6-4 Class A emissions
- IEC 61000-4 EMC immunity standards
- Industrial-grade compliance
Typical Applications
- Factory automation networks
- Process control systems
- Machine-to-machine communication
- Industrial monitoring systems
Diagnostic Capabilities
- Port status monitoring
- Alarm relay output
- Fast fault isolation
Packing List
- 1 × ABB 1783-BMS10CL Ethernet Switch
- DIN rail mounting clip
- Quick reference guide
Warranty & Shipping
- Warranty: 12 months
- Shipping: FedEx, UPS, DHL
FAQ
- Is this switch suitable for harsh environments?
- Yes. It supports wide temperature and high EMC resistance.
- Can it work with fiber networks?
- Yes. Combo ports support Mini-GBIC modules.
- Is configuration complex?
- No. Lite firmware allows fast setup.
- What is a common selection tip?
- Choose Lite firmware for stable, simple networks.
