Description
Product Overview

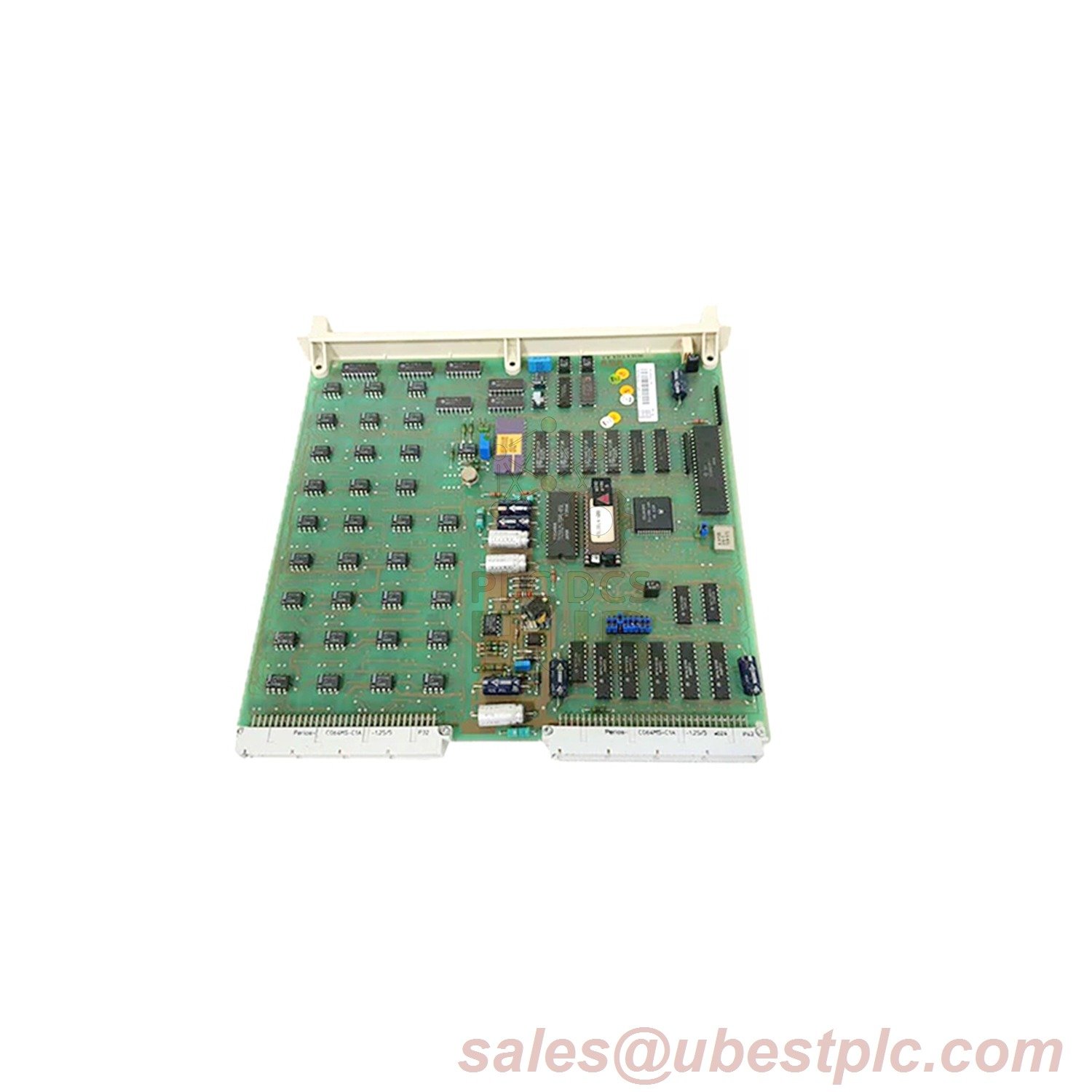

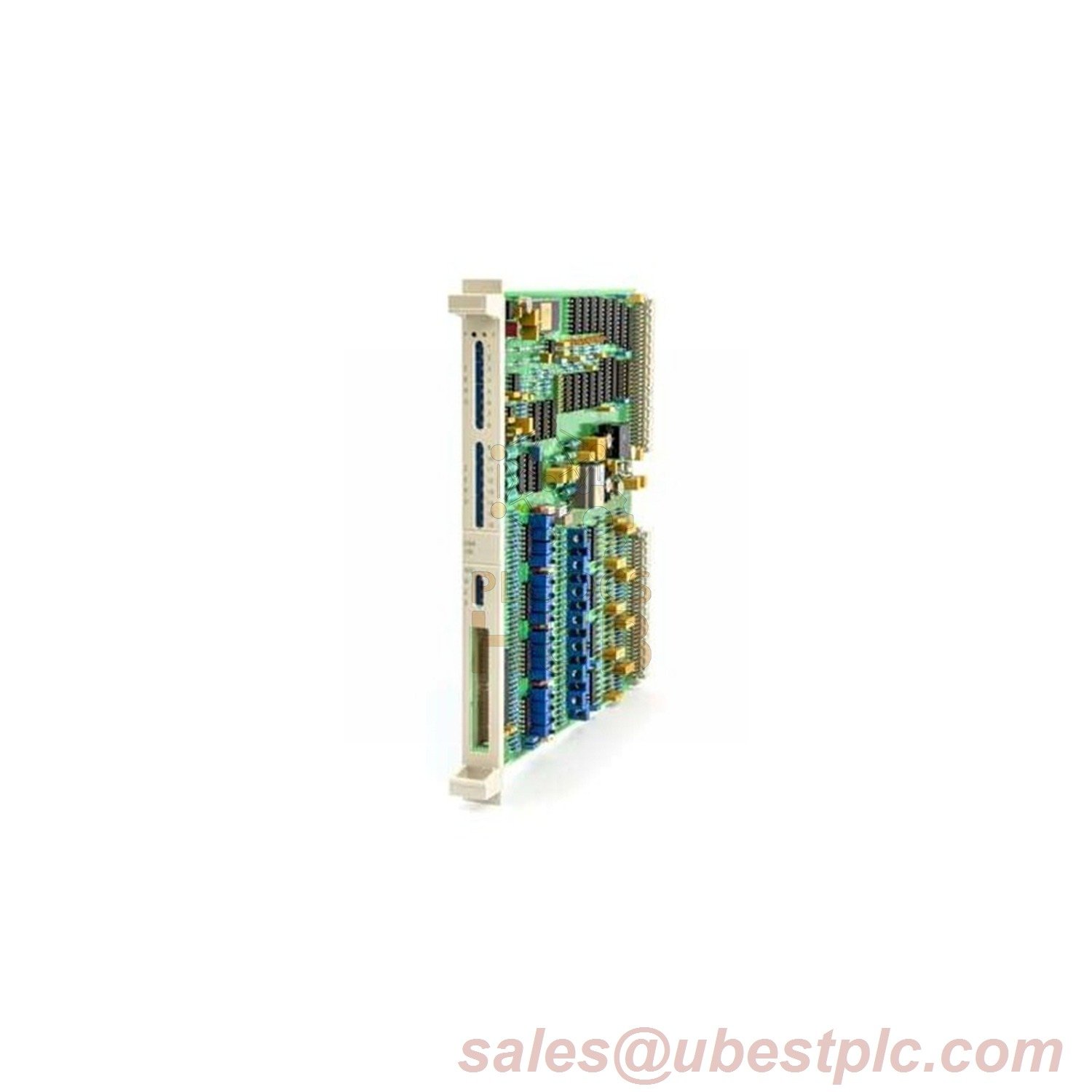

The DSAI 130D Analog Input Board (Product ID: 3BSE003127R1) is an advanced control system accessory designed for industrial automation applications. This board features 16 differential analog inputs, offering exceptional accuracy and versatile filtering capabilities. With a conversion time of just 20ms, it ensures rapid response for high-speed control systems. The device’s compact design makes it ideal for integration into space-constrained environments while maintaining high performance.
Technical Specifications
The DSAI 130D is a powerful, efficient solution for managing analog inputs in demanding environments. Below are the detailed specifications:
| Specification | Details |
|---|---|
| Brand | ABB |
| Model | DSAI 130D 3BSE003127R1 |
| Input Channels | 16 Channels |
| Input Type | Differential |
| Input Voltage | +/- 10V |
| Input Current | +/- 10mA |
| Resolution | 12-bit |
| Accuracy | 0.03% |
| Conversion Time | 20ms |
| Filter Time Sets | 4 Sets (Cutoff frequencies: 10Hz, 30Hz, 100Hz, 300Hz) |
| Dimensions (L x W x H) | 365mm x 261mm x 20mm |
| Weight | 0.475kg |
| RoHS Compliance | Yes, compliant with EU Directive 2011/65/EU |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| HS Code | 853890 |
| Customs Tariff Number | 85389091 |
Ordering Information
- Catalog Description: DSAI 130D Analog Input Board 16 CH.12
- Ordering Number: 3BSE003127R1
- HS Code: 853890
- Customs Tariff Number: 85389091
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
