Description
Product Overview

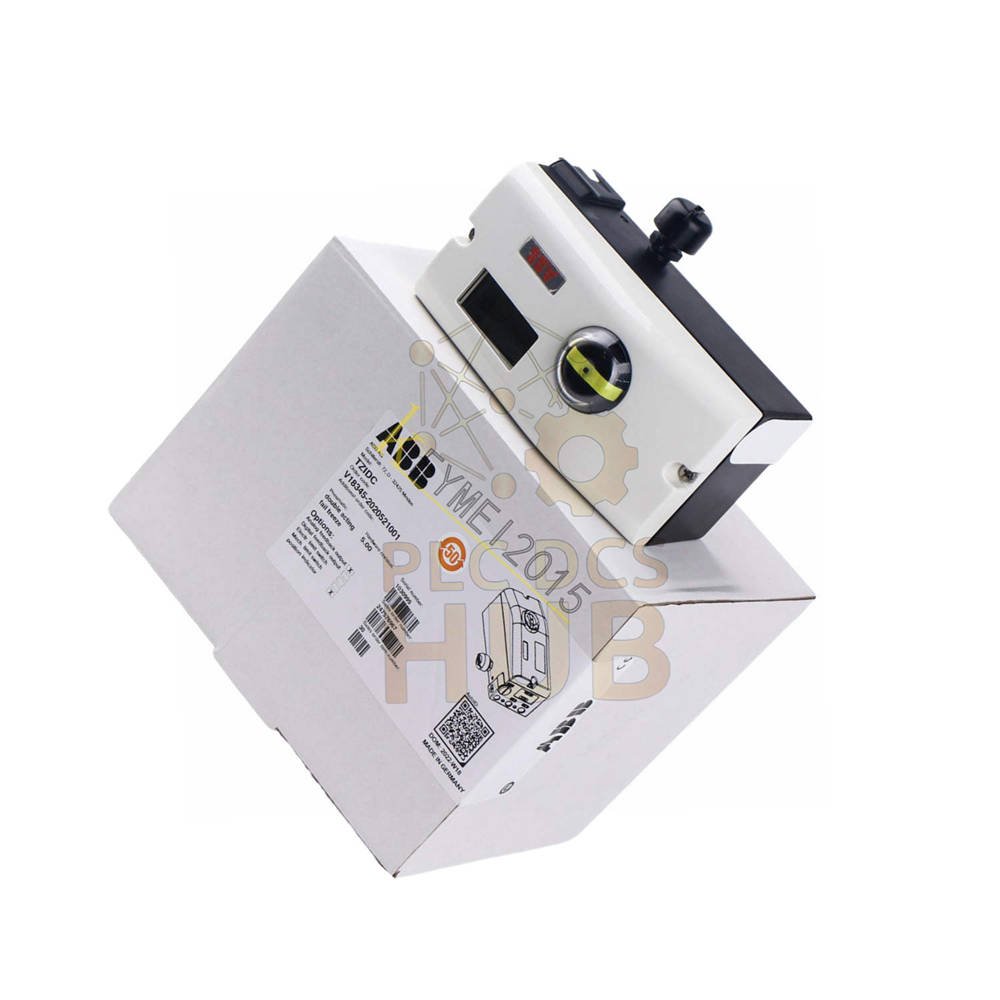

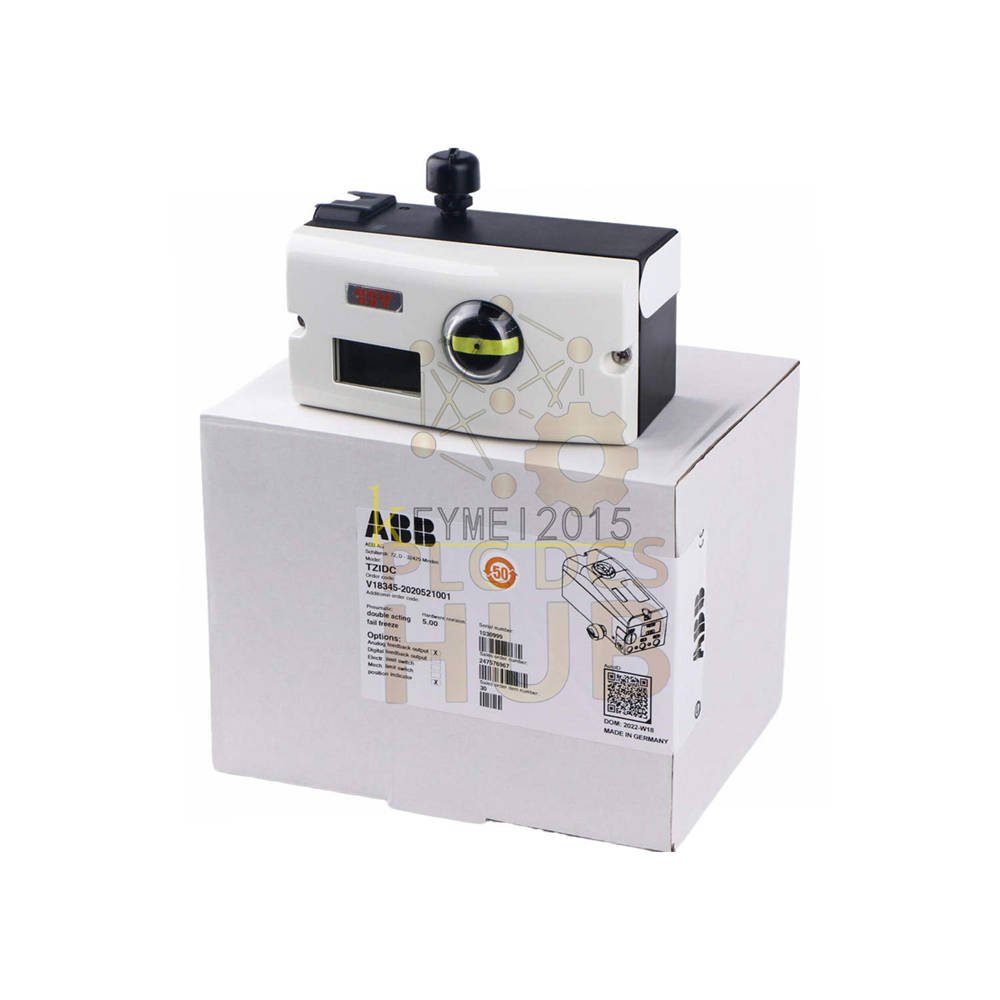

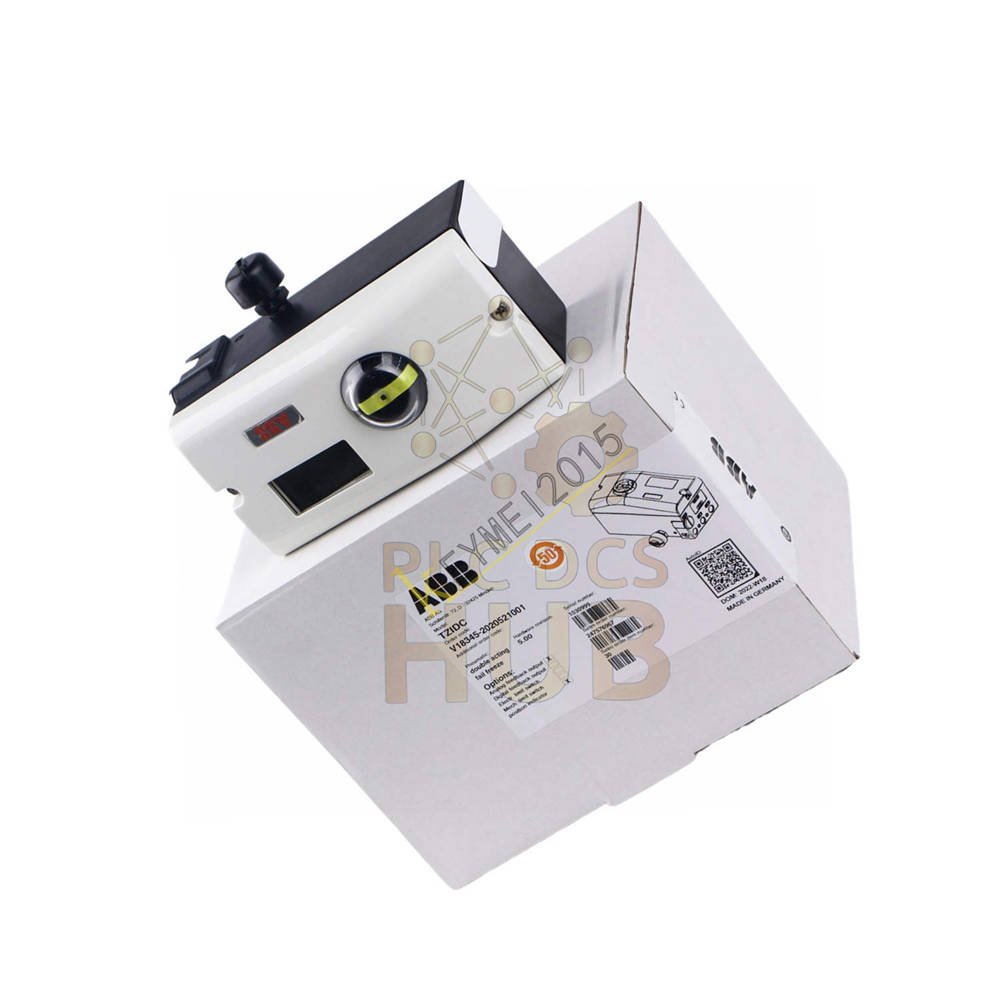

ABB V18345-2010420001 is a TZIDC Electro-Pneumatic Positioner. This smart device controls valve actuators precisely. It uses a 4-20 mA input signal. The unit has an indicator panel and a mechanical position indicator on the housing. Great for linear or rotary actuators.
Key Benefits
- Mechanical position indicator allows local reading without power
- Smart configuration with onboard operator panel
- HART Protocol 5.1 for digital communication
- Very low air consumption – below 0.03 kg/h
- Double acting with fail safe position
- IP65 / NEMA 4X aluminum housing
- Characteristic deviation below 0.5%
Technical Specifications
- Brand: ABB
- Model Number: V18345-2010420001
- Series: TZIDC
- Product Type: Electro-Pneumatic Positioner
- Input signal: 4-20 mA, two-wire
- Supply pressure: 1.4 to 6 bar (20 to 90 psi)
- Air consumption: Less than 0.03 kg/h (0.015 scfm)
- Output: Double acting, fail safe
- Weight: 1.7 kg
- Resolution (A/D): Over 4000 steps
- Sample rate: 20 ms
Order Code – Tree Structure
- V18345 = TZIDC intelligent positioner family
- 2 = Aluminum case, IP65, with mechanical position indicator
- 1 = 4-20 mA input with LKS adapter plug
- 0 = No explosion protection (base version)
- 4 = Double acting, fail safe output
- 2 = Cable: 1/2-14 NPT, Air: 1/4-18 NPT
- 0 = No analog feedback module
- 0 = No digital feedback kit
- 1 = Standard paint / coding
Input & Output Details
- Output signal (nominal): 4-20 mA
- Digital input – logic 0: 0 to 5 V DC
- Digital input – logic 1: 11 to 30 V DC
- Digital output supply: 5 to 11 V DC (to DIN 19234/NAMUR)
Performance Data
- Characteristic deviation: Less than 0.5%
- Tolerance band: 0.3 to 10% (adjustable)
- Dead band: 0.1 to 10% (adjustable)
- Temperature influence: Less than 0.5% per 10 K
- Vibration influence: Less than ±1% at 10 g / 80 Hz
- Mounting orientation influence: Not measurable
Characteristic Curves
- Linear
- Equal percentage 1:25 or 1:50
- Equal percentage 25:1 or 50:1
- Freely configurable with 20 reference points
Environmental & Housing
- Housing material: Aluminum, varnished black (RAL 9005)
- Protection class: IP65 / NEMA 4X
- Cover color: Pantone 420
- Coating: Epoxy electrostatic dipping, stove-hardened
- Pneumatic connections: G 1/4 or 1/4-18 NPT
- Seismic rating: Meets DIN/IEC 68-3-3 Class III (strong earthquakes)
Air Supply Requirements
- Oil-free, water-free, dust-free air per DIN/ISO 8573-1
- Class 3 purity: Max particle size 5 µm
- Max particle density: 5 mg/m³
- Oil content: Max 1 mg/m³
- Pressure dew point: 10 K below operating temperature
- Do not exceed actuator max pressure
Communication & Protocols
- HART Protocol 5.1 for digital communication
- Local LKS adapter port for PC connection
- HART communication via 4-20 mA signal line
- Optional FSK modem for remote access
Directives & Compliance
- EMC Directive 89/336/EWG
- CE conformity marked
Installation Guide
- Mount on linear actuators (DIN/IEC 534 / NAMUR)
- Mount on rotary actuators (VDI/VDE 3845)
- Mechanical indicator shows valve position locally
- Connect clean air supply at 1.4 to 6 bar
- Wire 4-20 mA input to terminals
- Set fail safe position before air connection
Setup & Commissioning
- Use onboard operator panel for configuration
- Auto-calibrate with push button
- Configure characteristic curves with 20 points
- Adjust dead band and tolerance band easily
- LKS adapter port for quick PC connection
- HART modem allows remote setup
Diagnostics & Maintenance
- Mechanical indicator works without power
- Very low air consumption means less wear
- Check air filter regularly for clean supply
- No routine lubrication needed
- Monitor deviation to detect valve wear
Compatibility
- Works with any actuator accepting 4-20 mA control
- Fits linear valves (DIN/IEC 534 standard)
- Fits rotary valves (VDI/VDE 3845 standard)
- Compatible with all HART-enabled DCS and PLC systems
Packing List
- 1x ABB V18345-2010420001 TZIDC positioner
- Operator manual
- Mounting kit (linear or rotary – specify when ordering)
- Original factory box
Warranty & Shipping
- 12-month factory warranty
- Fast delivery: FedEx, UPS, DHL
- Tracking number for all orders
Typical Applications
- Chemical and petrochemical valve control
- Power plant steam valve positioning
- Oil and gas pipeline regulation
- Water treatment flow control
- Seismic-prone areas (Class III rated)
5 Professional FAQs
- What is the advantage of the mechanical position indicator on this model?
- You can see valve position locally without power. Great during maintenance or power loss.
- Does this positioner support HART communication?
- Yes. It supports HART Protocol 5.1. Use FSK modem for remote access.
- Can I configure custom characteristic curves?
- Yes. You can set up to 20 reference points for custom curves.
- What happens if my air supply has oil or water?
- Dirty air damages internal parts. Always use filter regulator to meet Class 3 purity.
- Do you offer the analog feedback module for this unit?
- This model comes without feedback. Please contact us if you need 4-20 mA feedback option.
Selection Guide – Pick the Right TZIDC Positioner
- Step 1 – Need local visual position? Choose code 2 (this model) for mechanical indicator. Code 1 has no indicator.
- Step 2 – Explosion protection needed? Code 0 has no protection. For hazardous areas, pick codes 3, 5, or 6.
- Step 3 – Output type: Code 4 gives double acting fail safe. For single acting, pick other codes.
- Step 4 – Feedback needed? Code 0 has no feedback. Add code 1 for analog 4-20 mA feedback.
- Step 5 – Connection type: Code 2 gives NPT threads. For metric G threads, choose code 1.
- Pro tip: For HART networks, ensure your DCS has built-in HART multiplexer or external FSK modem.
