Description
Description

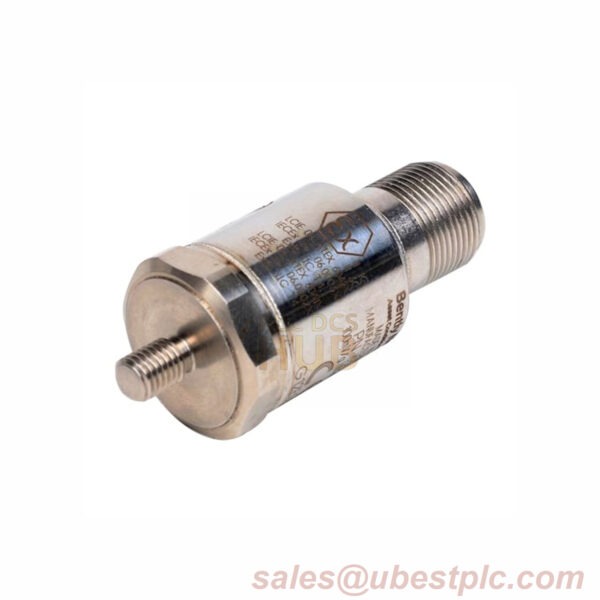

The 330425-01-CN is a high-precision accelerometer designed for regionally compliant vibration monitoring. Featuring a ¼-28 UNF integral stud mount and country-specific certifications, it delivers 10.2 mV/m/s² sensitivity in -55°C to +121°C extremes. Ideal for explosive environments requiring localized compliance, with IP68 sealing and 316L stainless steel construction.
Technical Specifications
| Model | 330425-01-CN |
|---|---|
| Sensitivity | 10.2 mV/m/s² ±5% (100 mV/g) |
| Frequency Response | 10 Hz – 15 kHz (±3 dB) |
| Acceleration Range | 490 m/s² (50 g) peak |
| Temperature Range | -55°C to +121°C (-67°F to +250°F) |
| Mounting Thread | ¼-28 UNF integral stud |
| Cable Length | 305 m (1000 ft) maximum |
Contact Information
For regional certification details or COO requests:
Email: sales@ubestplc.com
