Description
Product Overview
- Brand: Yokogawa

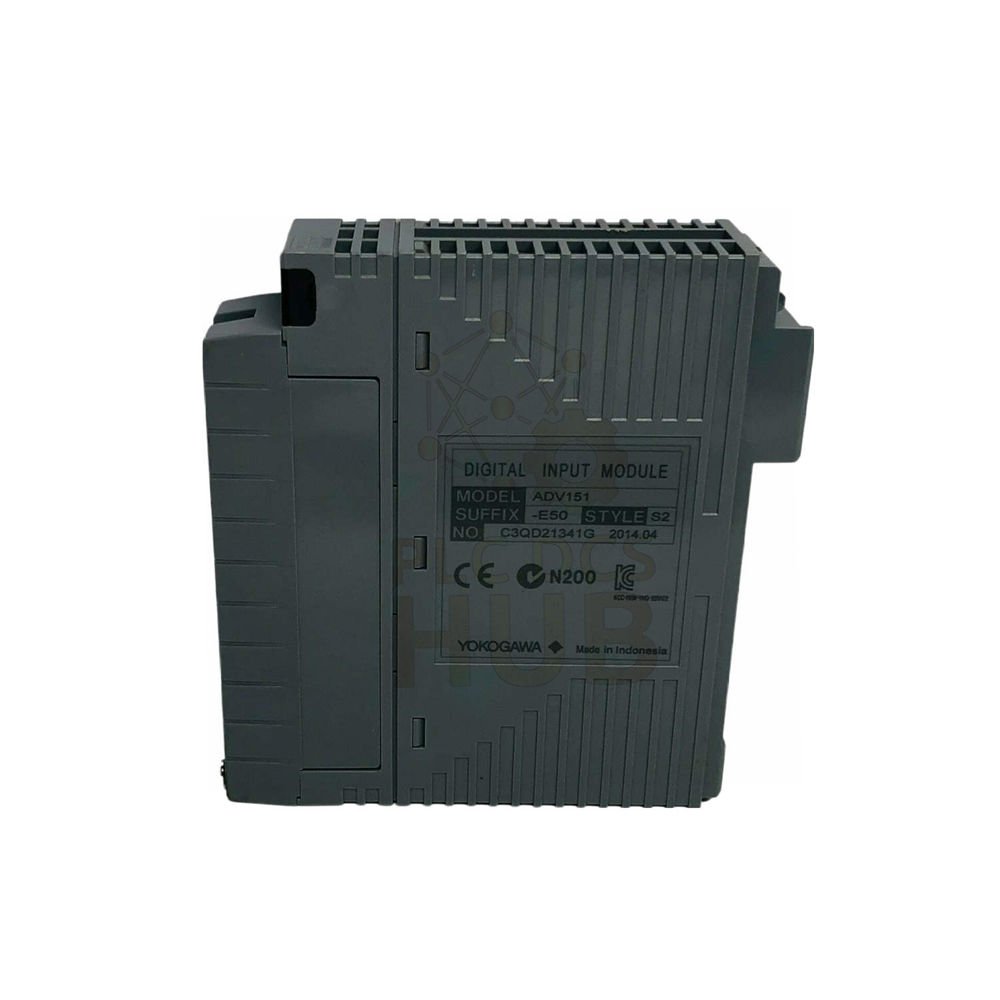

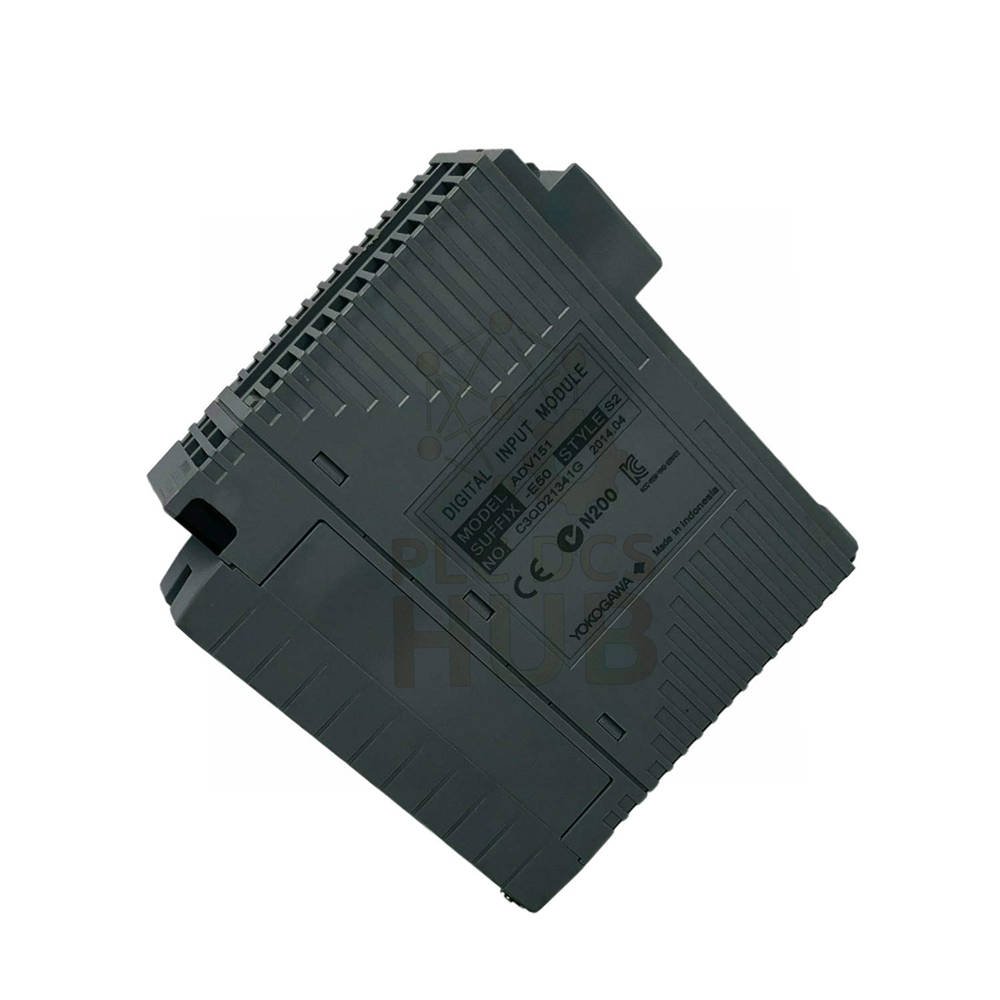

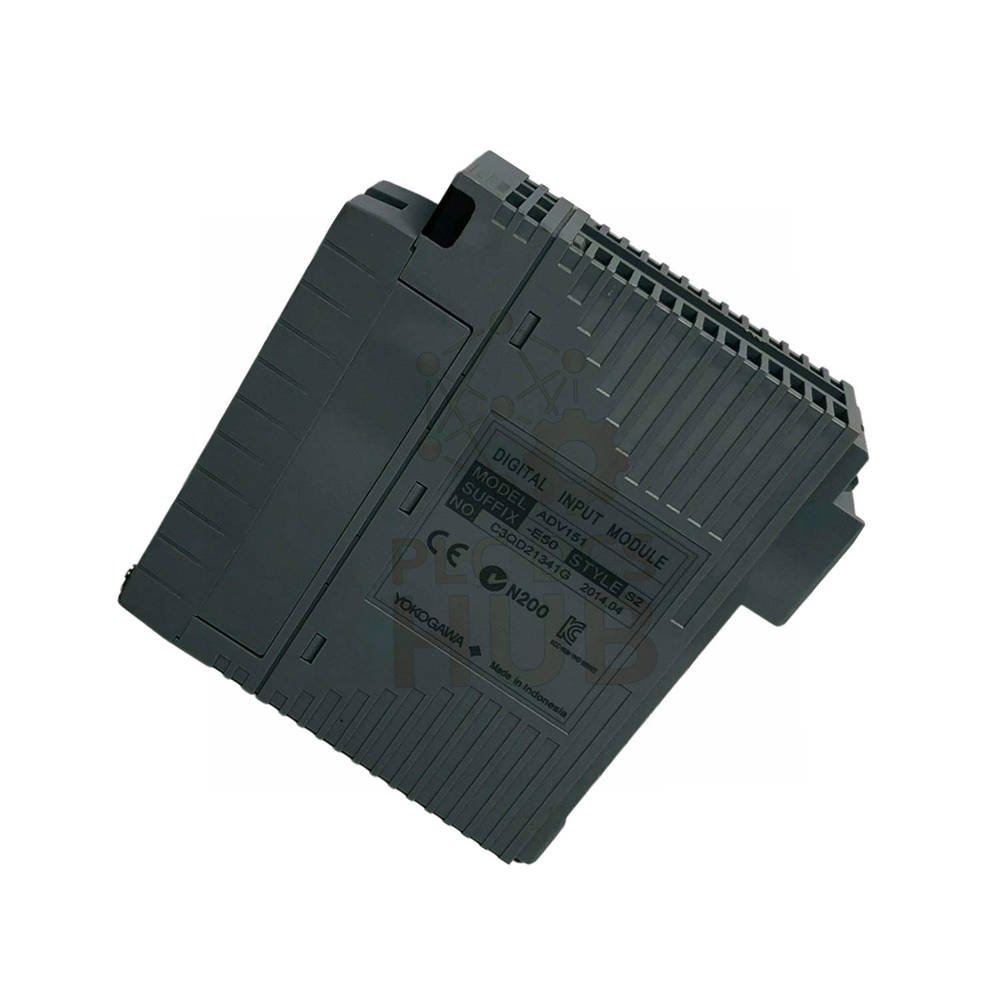

- Model: ADV151 Digital Input Module
- Series: FIO Digital I/O Module
- Designed for industrial digital signal acquisition.
- Supports installation in ESB Bus Node Units and Field Control Units.
- Works with ANB10, ANB11, AFV30, and AFV40 platforms.
- Compatible with Yokogawa Centum VP distributed control systems.
- Captures ON/OFF field signals with high reliability.
- Supports redundancy for critical processes.
- Ideal for continuous industrial operation.
Core Functional Description
- 32-channel digital input acquisition.
- Status monitoring detects equipment ON/OFF conditions.
- Pushbutton mode counts switching edges accurately.
- SOE function records sequence-of-events data.
- Electrical isolation improves signal stability.
- Designed for harsh automation environments.
Technical Specifications
- Brand: Yokogawa
- Model: ADV151-E50
- Module Type: Digital Input Module
- Input Channels: 32 isolated inputs
- Rated Voltage: 24 V DC sink/source
- Input ON Level: 18–26.4 V DC
- Input OFF Level: ≤5 V DC
- Input Current: 4.1 mA per channel
- Maximum Voltage: 30 V DC
- Response Time: ≤8 ms
- Minimum Detection Time: 20 ms
- Switching Frequency: Up to 25 Hz
- Power Consumption: Max 500 mA at 5 V DC
- Isolation Strength: 2 kV AC signal to system
- Weight: Approx. 0.30 kg
- Temperature Range: −20 to 70 °C optional
- Environmental Resistance: ISA Standard G3 option available
- Noise Immunity: High isolation against electrical interference
- Resolution: Digital ON/OFF detection accuracy
- Linearity: Stable switching threshold performance
Model Structure and Suffix Tree
- ADV151
- -P → Pushbutton input enabled
- -E → SOE capture enabled
- Display / Protection Options
- 5 → No display, standard protection
- 6 → With display, standard protection
- E → No display, explosion protection
- F → With display, explosion protection
- Environmental Options
- 0 → Basic type
- 3 → ISA G3 coating and wide temperature option
Installation Guidelines
- Install inside compatible ESB Bus Node Units.
- Use pressure clamp terminals or dedicated cables.
- Ensure correct sink or source wiring.
- Keep grounding reliable for noise reduction.
- Avoid exceeding maximum input voltage.
Commissioning and Maintenance Convenience
- Quick wiring reduces installation time.
- Status indicators simplify diagnostics.
- Modular replacement minimizes downtime.
- No recalibration required after replacement.
- Supports predictive maintenance workflows.
Compatibility
- ANB10S / ANB10D ESB Bus Node Units
- ANB11S / ANB11D Optical ESB Units
- AFV30S / AFV30D Field Control Units
- AFV40S / AFV40D Controllers
- Fully integrated with Yokogawa DCS architecture.
Certifications and Reliability
- Industrial-grade isolation protection.
- Optional explosion-protected configuration.
- Designed for continuous plant operation.
- Supports harsh chemical and offshore environments.
Packing List
- 1 × ADV151 Digital Input Module
- Terminal connector or cable option
- Product documentation
- Factory inspection certification
Warranty and Shipping
- Warranty: 12 months factory warranty
- Shipping via FedEx, UPS, or DHL
- Professional anti-static packaging
- Global delivery available
Typical Applications
- Oil and gas process monitoring
- Power generation plants
- Chemical automation systems
- Factory digital signal collection
- Safety interlock monitoring
Diagnostic Capabilities
- Real-time signal state monitoring.
- SOE recording for event analysis.
- Fast fault identification.
- Improves system troubleshooting speed.
FAQ
- Q: Can this module support redundant systems?
- A: Yes. ADV151 supports dual redundant configurations.
- Q: Is it suitable for noisy industrial environments?
- A: Yes. High isolation protects against electrical interference.
- Q: How fast does it detect input changes?
- A: Response time is 8 milliseconds or faster.
- Q: What should I check before purchasing?
- A: Confirm channel count, protection level, and controller compatibility.
- Q: Should I choose pushbutton or SOE version?
- A: Choose pushbutton for counting signals. Choose SOE for event tracking.
- Q: Does explosion protection matter?
- A: Required for hazardous zones like petrochemical plants.
Selection Guidance
- Choose suffix based on environment safety requirements.
- Select display option for easier field diagnostics.
- Use ISA G3 option in corrosive atmospheres.
- Verify system compatibility before ordering.
- Consult engineers for redundancy planning.
