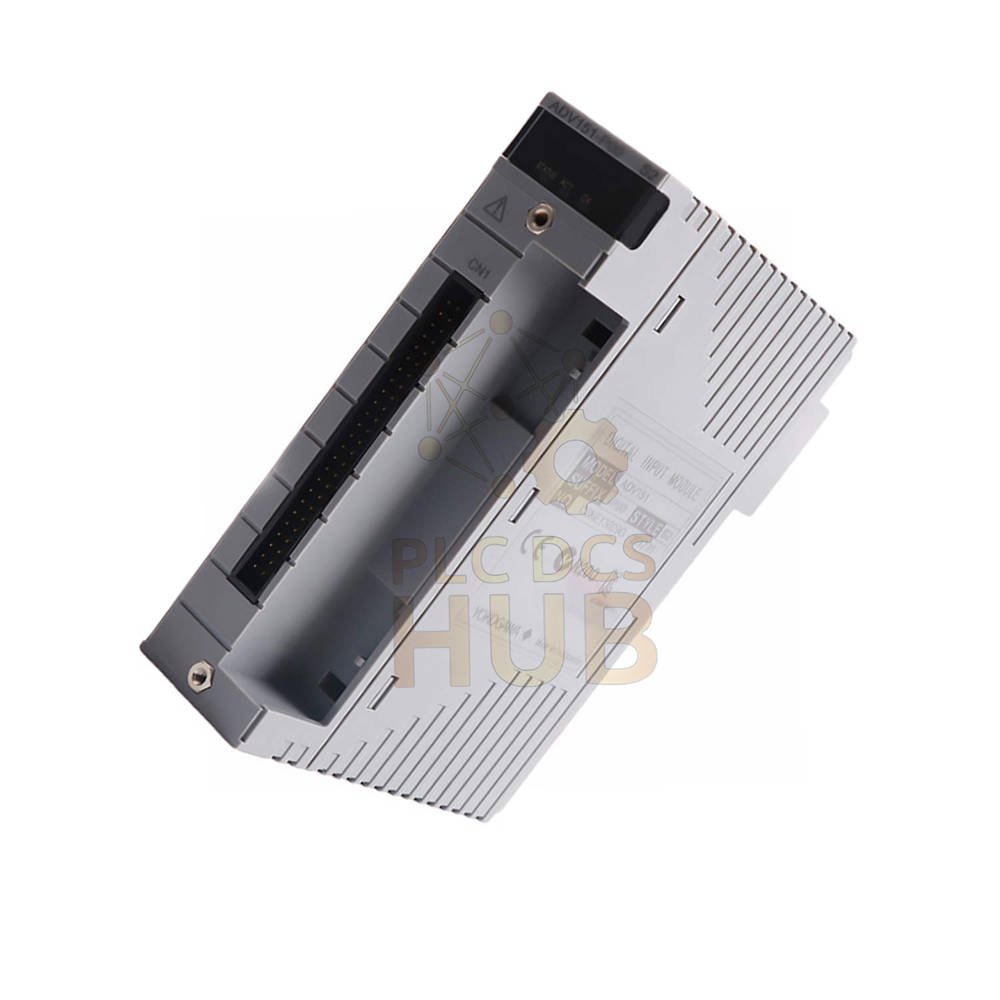

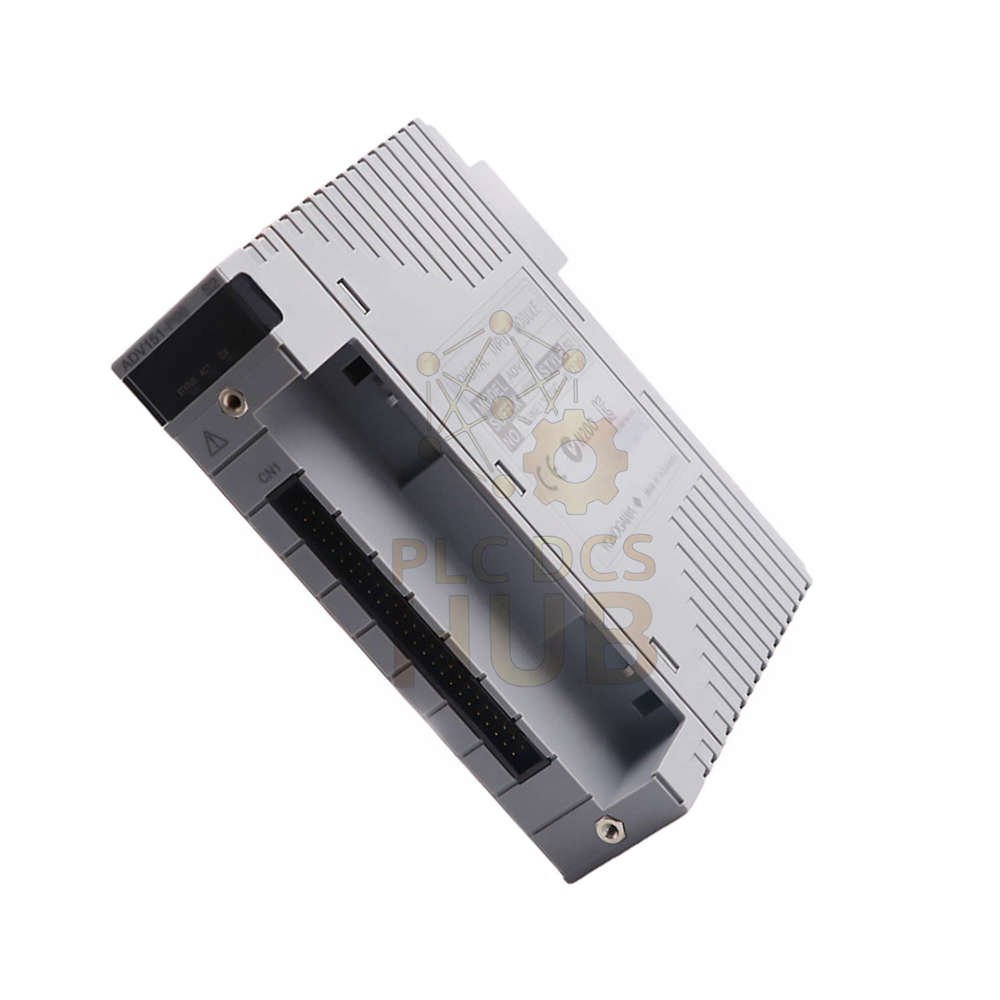

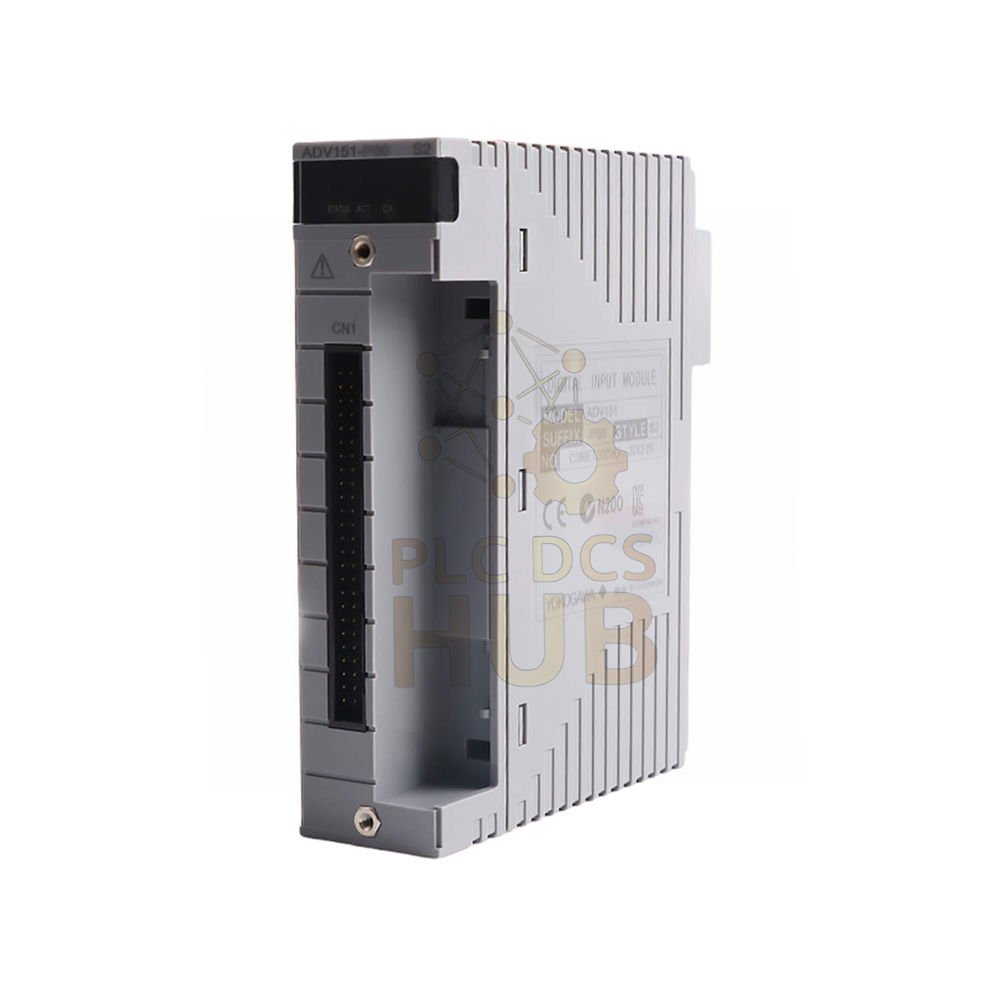

ADV551-P10 ADV Series 32CH Digital Output Module High Speed PLC Output

Description

Product Introduction

• Brand: ADV Series
• Model: ADV551-P10
• Type: Digital Output Module
• Output Channels: 32-channel transistor output
• This module provides fast and stable digital signal output.
• It supports industrial control tasks with high reliability.
• Isolated design protects system safety.
• Flexible output modes improve control accuracy.

Core Features

• Supports status ON/OFF output control
• Supports one-shot pulse output
• Supports time-proportional output
• Fast response time improves system speed
• Low leakage current ensures stable OFF state
• High load capacity per channel

Technical Specifications

• Model: ADV551-P10
• Channels: 32 outputs
• Rated Voltage: 24 V DC
• Voltage Range: 20.4 to 26.4 V DC
• Output Type: Current sink
• Max Load Current: 100 mA per channel
• Output ON Voltage: ≤2 V DC
• Leak Current: ≤0.1 mA
• Response Time: ≤3 ms
• Mixed Output Response: ≤10 ms
• Pulse Width Range: 8 ms to 7200 s
• Resolution: 8 ms
• Isolation Voltage: 2 kV AC
• Power Consumption: 700 mA at 5 V DC
• External Power: 24 V DC, 50 mA
• Operating Temperature: -20 to 70°C
• Anti-interference: Strong EMC resistance
• Connection: Clamp terminal / cable
• Dimensions: 130 × 107.5 × 32.8 mm
• Weight: 0.20 kg

Configuration Breakdown

• Base Model: ADV551
  • -P
    • Enable pulse and time-proportional output
  • Status / Protection Options
    • 5
      • No display
      • No explosion protection
    • 6
      • With display
      • No explosion protection
    • E
      • No display
      • Explosion protection
    • F
      • With display
      • Explosion protection
  • Environmental Option
    • 0
      • Standard type
    • 3
      • G3 coating
      • Extended temperature

Optional Accessories

• /D5A00: KS cable interface adapter
• /D5S00: Standard terminal block
• /D5S10: Terminal with surge protection
• /D5D00: Dual terminal block
• /D5D10: Dual with surge protection
• /CCC01: Connector cover

Compatibility

• Works with PLC and DCS systems
• Supports Yokogawa Centum VP
• Fits industrial automation networks

Application Scenarios

• Motor control systems
• Relay switching control
• Process automation
• Factory production lines
• Energy management systems

Packing and Warranty

• 1 × ADV551-P10
• Optional accessories
• User manual
• 12-month warranty
• Delivery: FedEx, UPS, DHL

FAQ

• What load type can this module drive?
• It supports DC loads like relays and solenoids.
• Can it handle high switching frequency?
• Yes, fast response supports frequent switching.
• How to choose display option?
• Select code 6 or F if status view is needed.
• Is surge protection necessary?
• Yes, use surge options in unstable power environments.
• How to select correct configuration?
• Check output type, environment, and protection level.
