Description

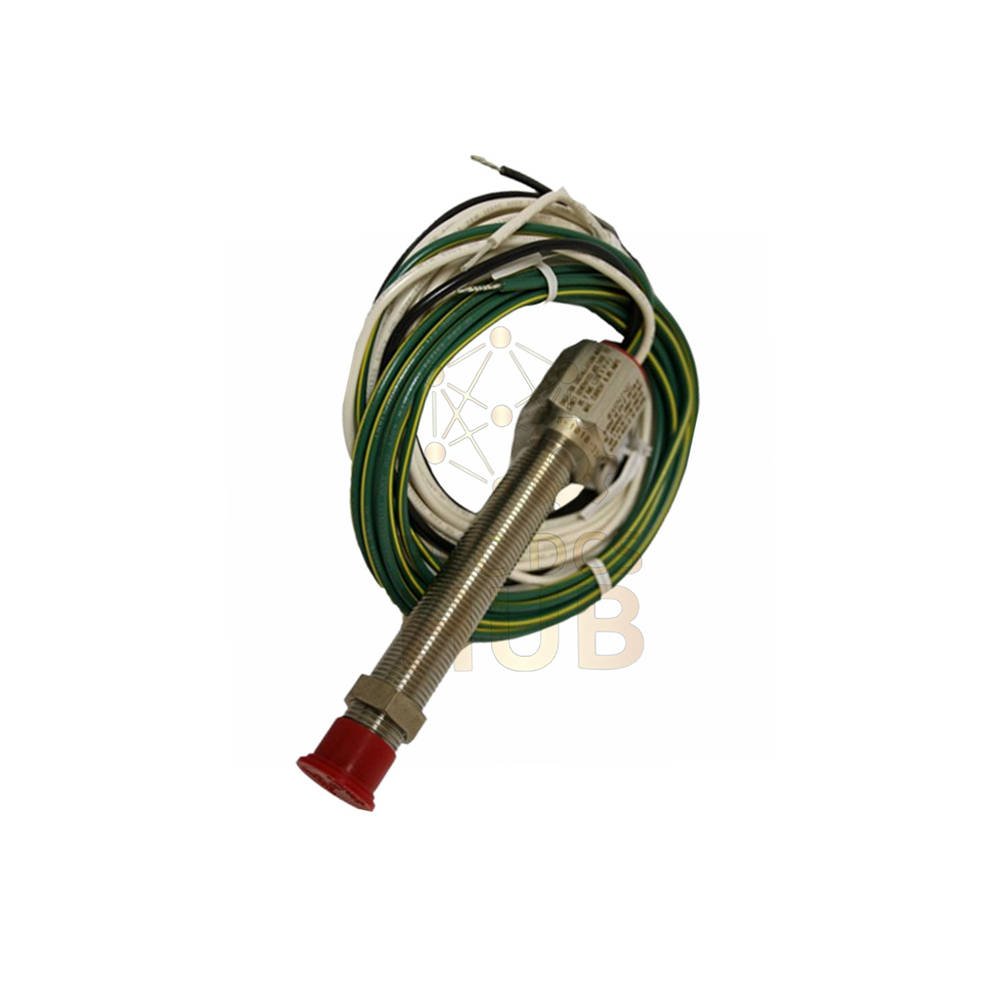

AI-TEK 70085-1010-007 Speed Sensor – Compact Magnetic Pickup
This small sensor detects speed in tight spaces. It works from -55°C to 107°C. The 3/8-24 thread fits many industrial machines. Use it for small engines, pumps, and gearboxes.
Tech Specs (easy to read)
- Brand & Model: AI-TEK, Part No. 70085-1010-007
- Output voltage
- Standard (P-P): 21 V
- Guaranteed (P-P): 1.6 V
- Thread & size
- Thread size: 3/8-24 UNF
- Thread length: 0.812 inch
- Sensor length: 1.252 inch
- Electrical data
- DC resistance: 125 ohms max
- Typical inductance: 22 mH ref.
- Output polarity: White lead positive
- Temperature range
- Operating: -55°C to +107°C
- Connection & weight
- Termination: Wires (bare leads)
- Lead length: 6 inches (15.2 cm)
- Net weight: 2 oz max.
- Certification
- Agency Approval: None (general use)
Quick Installation Guide
- Clean the 3/8-24 threaded hole before mounting.
- Screw sensor until it touches the gear tooth.
- Back off 1/2 turn for proper air gap.
- Connect white lead as positive signal.
- Keep leads away from high voltage cables.
Maintenance & Troubleshooting
- No regular maintenance needed.
- Check DC resistance: should be under 125 ohms.
- Low output? Adjust air gap smaller.
- Use oscilloscope to see signal waveform.
- Replace if coil shows open circuit.
Compatibility
- Works with PLCs, tachometers, frequency meters.
- Passive sensor – no external power required.
- Target must be ferrous metal (steel or iron).
- Fits standard 3/8-24 mounting holes.
Typical Applications
- Small diesel engine RPM sensing.
- Compact pump speed monitoring.
- Light industrial gearboxes.
- Conveyor rollers in tight spaces.
- Test stands for small motors.
Diagnostic Check
- Measure DC resistance between leads (max 125 ohms).
- Spin target gear by hand – check for AC voltage.
- Guaranteed output: at least 1.6 V P-P at specified gap.
- No signal means bad coil or wrong gap.
Frequently Asked Questions (FAQ)
- What is the difference between standard 21V and guaranteed 1.6V output?
- 21V is typical peak at high speed. 1.6V is the minimum you get at low speed. Your meter must detect 1.6V reliably.
- Can I extend the 6-inch wires?
- Yes, use twisted pair shielded cable. Keep total length under 15 meters. Solder and insulate joints well.
- Why does my sensor show zero output even with a steel gear?
- Air gap may be too large. Reduce gap to 0.005-0.015 inch. Also check gear rotation speed – very slow speed gives very low voltage.
- Experience: How does this handle vibration on a small engine?
- It works well because of short 1.25-inch body. Use thread locker on the 3/8-24 nut to prevent loosening.
- Selection guide: Which sensor for high temp or longer thread?
- This 70085-1010-007 works to 107°C. For higher temperature (150°C), pick AI-TEK 70085-20xx series. For longer thread, choose 70085-3030 models.
Packing List
- AI-TEK 70085-1010-007 speed sensor – 1 piece
- 6-inch wire leads pre-attached
- Quick reference card
- No mounting nut included (use standard 3/8-24 nut)
Warranty & Shipping
- 12-month warranty from invoice date. Covers defects.
- Fast delivery via FedEx, UPS, DHL – worldwide.
- Order ships in 2-3 business days.
