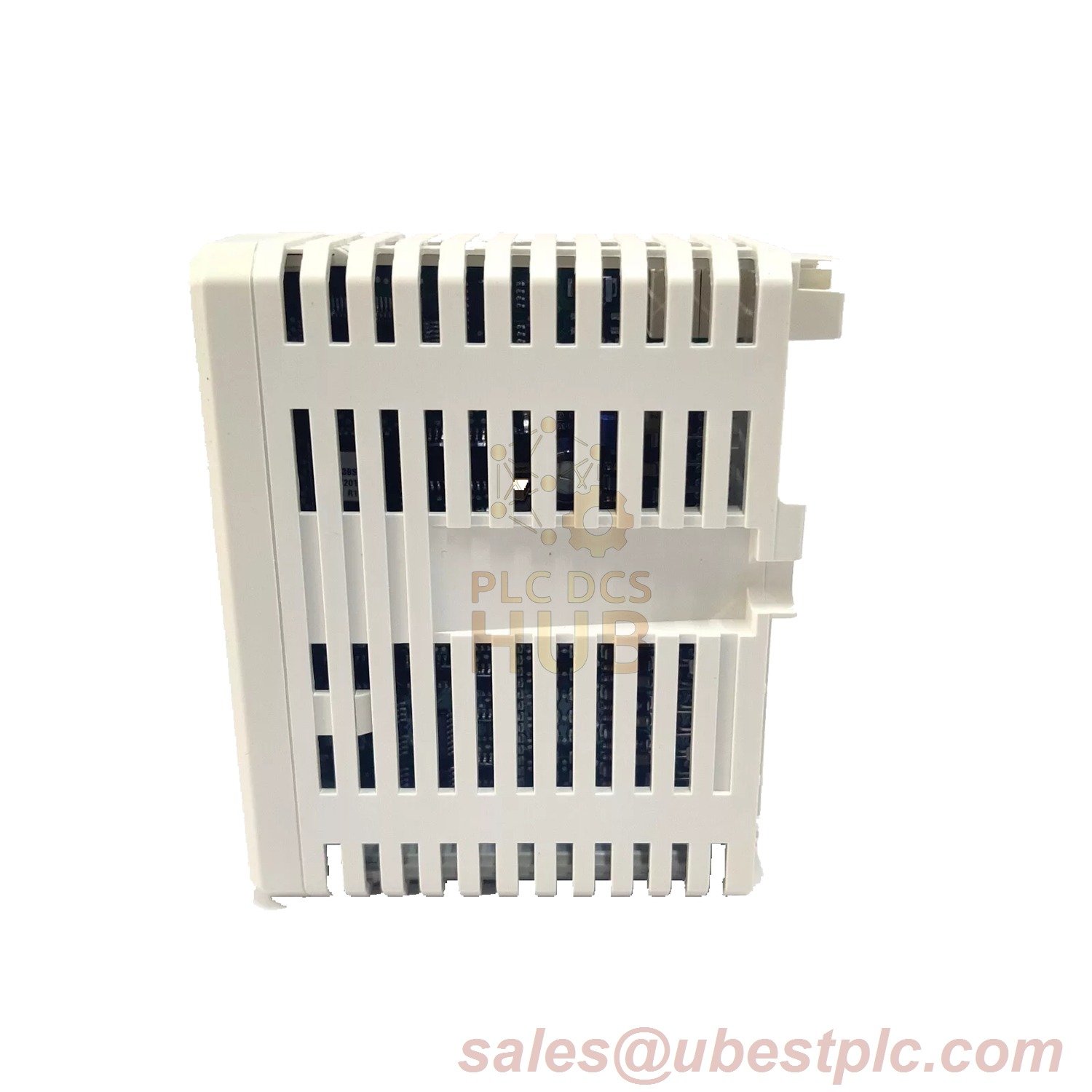

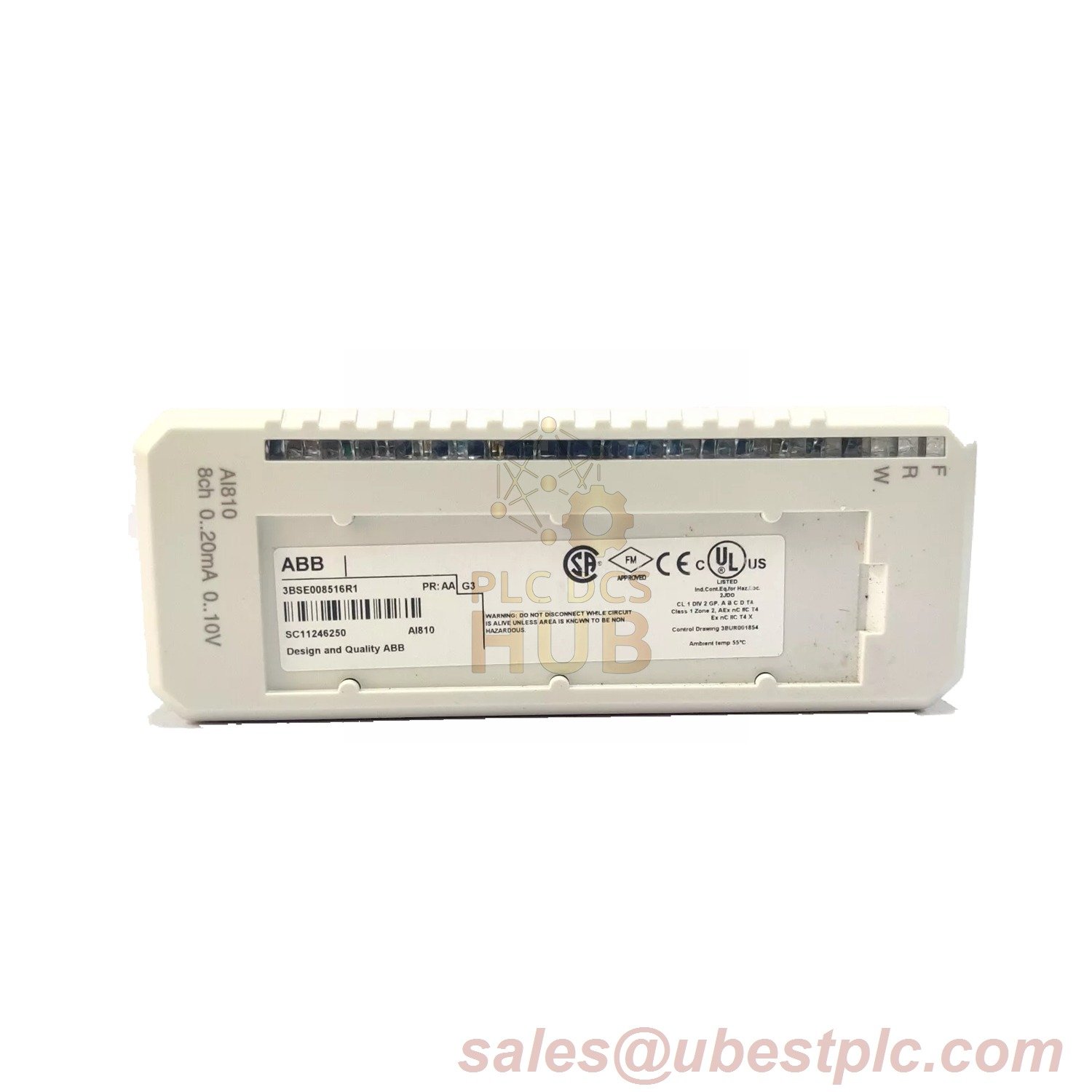

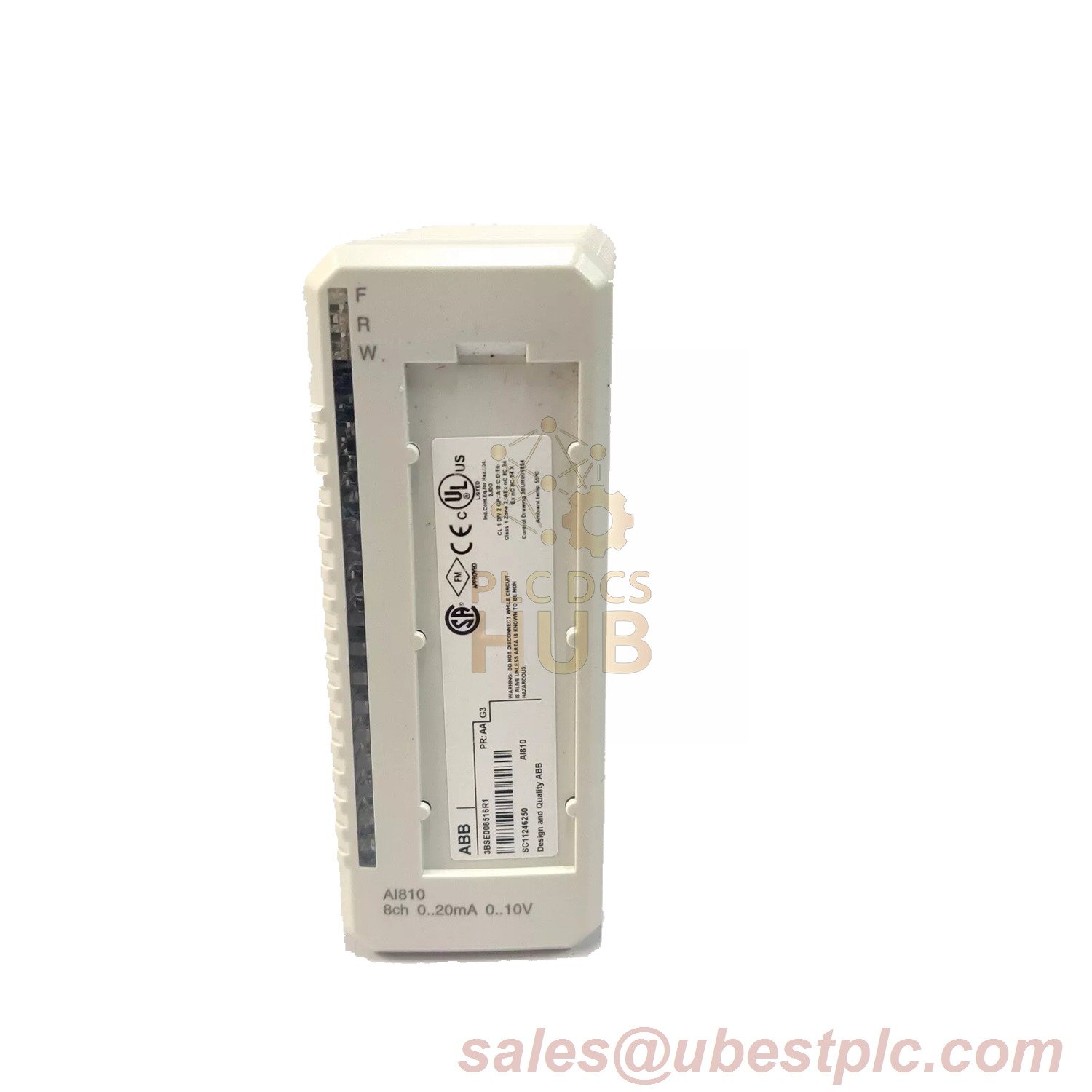

AI810 3BSE008516R1 Analog Input Module ABB

Description

Product Overview

The ABB AI810 (3BSE008516R1) analog input module delivers high-precision signal acquisition for industrial automation, featuring 8 channels compatible with 0–20 mA, 4–20 mA, 0–10 V, or 2–10 V DC inputs. Designed for the S800 series, it supports HART communication and offers 12-bit resolution with group isolation for reliable performance in harsh environments, including hazardous areas (ATEX Zone 2) and marine applications. Compact dimensions (45x119x102 mm, 0.2 kg) and IP20 protection ensure easy integration into control systems, while diagnostic LEDs (Fault, Run, Warning) simplify troubleshooting.

Technical Specifications

• Brand: ABB
• Model: AI810
• Article Number: 3BSE008516R1
• Input Channels: 8 single-ended, unipolar
• Signal Types:
  • Current: 0–20 mA, 4–20 mA
  • Voltage: 0–10 V, 2–10 V
• Resolution: 12-bit (±0.1% accuracy)
• Isolation: Group-isolated from ground
• HART Support: Yes (withstands HART signals)
• Update Cycle: 8 ms
• Input Protection:
  • Short-circuit protection to ZP/+24 V
  • PTC resistor protection up to 30 V
• Certifications:
  • Safety: CE, UL, ATEX Zone 2
  • Marine: ABS, BV, DNV, LR
  • Environmental: RoHS, WEEE
• Environmental Ratings:
  • Operating Temp: 0°C to +55°C
  • Storage Temp: -40°C to +70°C
  • Humidity: 5–95% (non-condensing)
  • Corrosion Protection: ISA-S71.04 G3
• Power:
  • +5V Modulebus: 70 mA
  • +24V Modulebus: 40 mA
• Dimensions: 45 mm (W) x 119 mm (H) x 102 mm (D)
• Weight: 0.2 kg (0.44 lbs)
