Description
???? Core Highlights

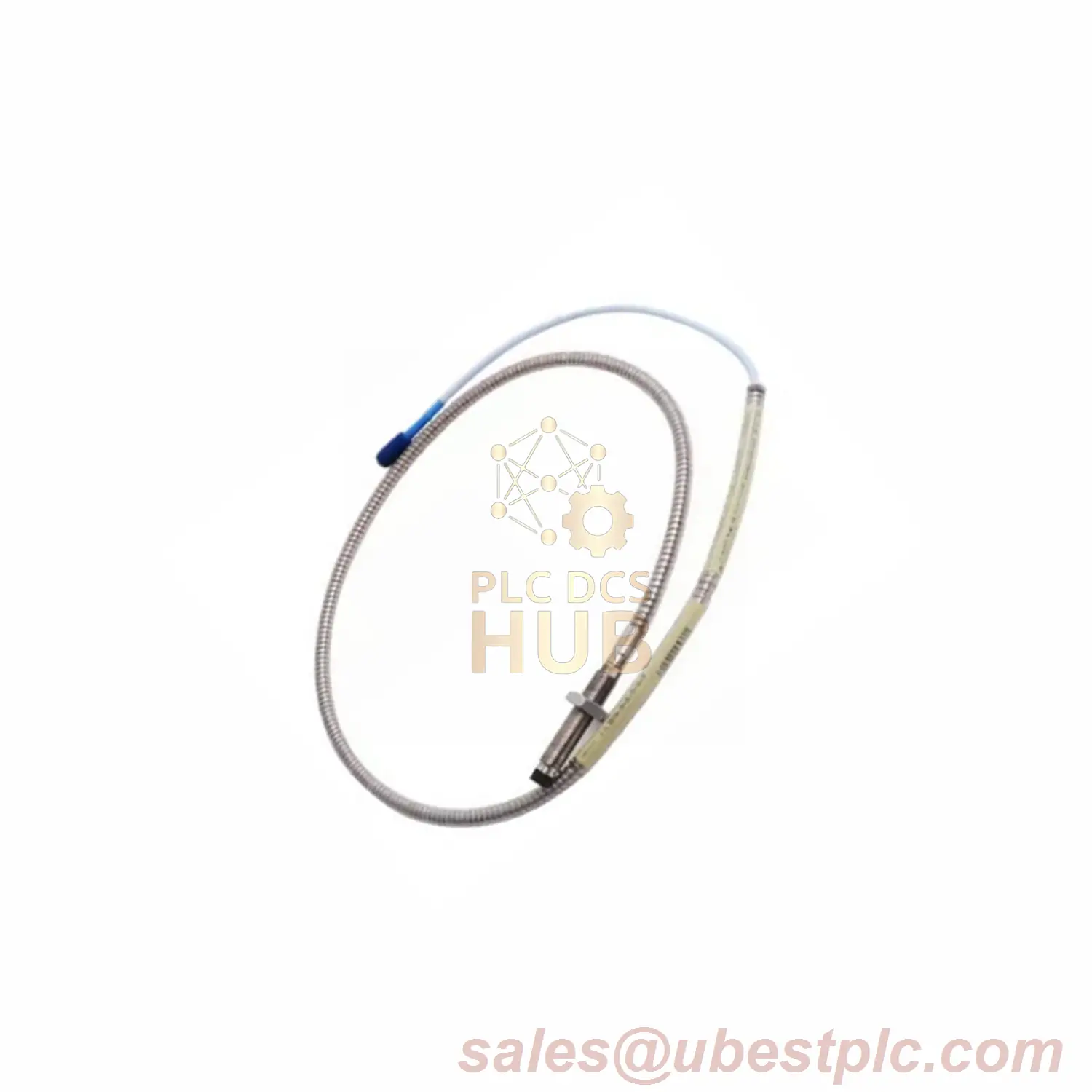

Bently Nevada 330905-00-10-05-12-05 – A high-performance 3300 NSv Proximity Probe engineered for precision industrial monitoring. New & Original with 12-month warranty and multi-agency certifications (-05).
???? Critical Specifications
Thread Type: M10X1 Unarmored | Case Length: 100mm (-10-)
Cable: 0.5m FluidLoc + Mini ClickLoc Connector (-12-)
Resistance: 4.0Ω ±0.5Ω | Linear Range: 0.25–1.75mm
ISF: 7.87 V/mm | DSL: ±0.06mm
⚡ Enhanced Features
Certifications: Multi-Agency Approved (-05)
Materials: PPS Tip + AISI 304 SST Case | Bend Radius: 25.4mm
Field Wiring: Up to 305m | Capacitance: 69.9 pF/m
Temp Range: -52°C to +177°C | Max Torque: 0.56 N•m
???? Installation & Compliance
Thread Engagement: 15mm Max | Seal: Viton O-Ring
Pressure Testing: Available on Request
Cable Shield: 0.066Ω/m | Target Size: Min 8.9mm Diameter
Interchangeability: Compatible with 3300 RAM Probes
