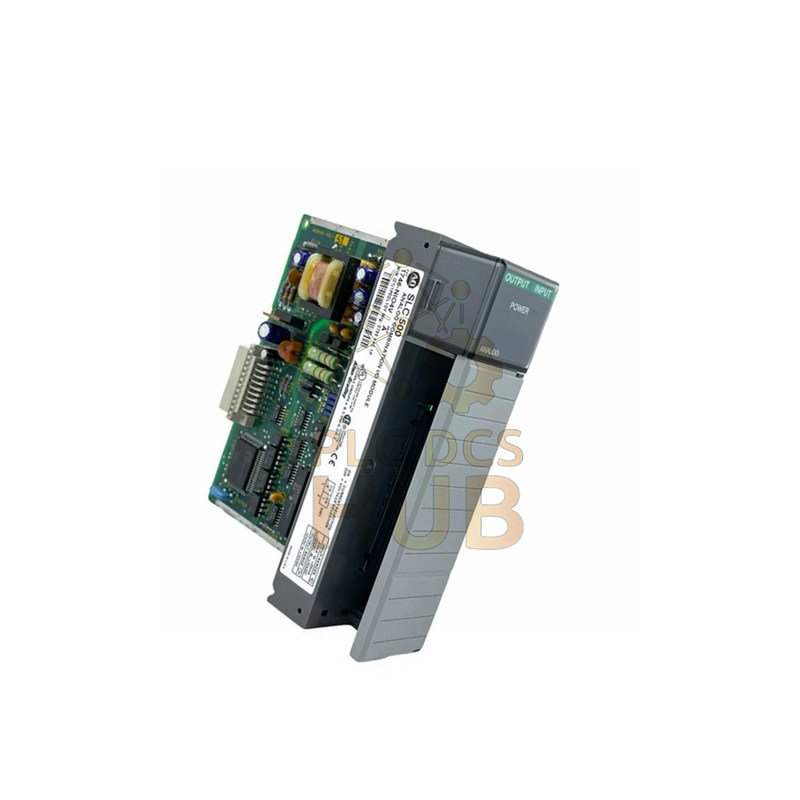

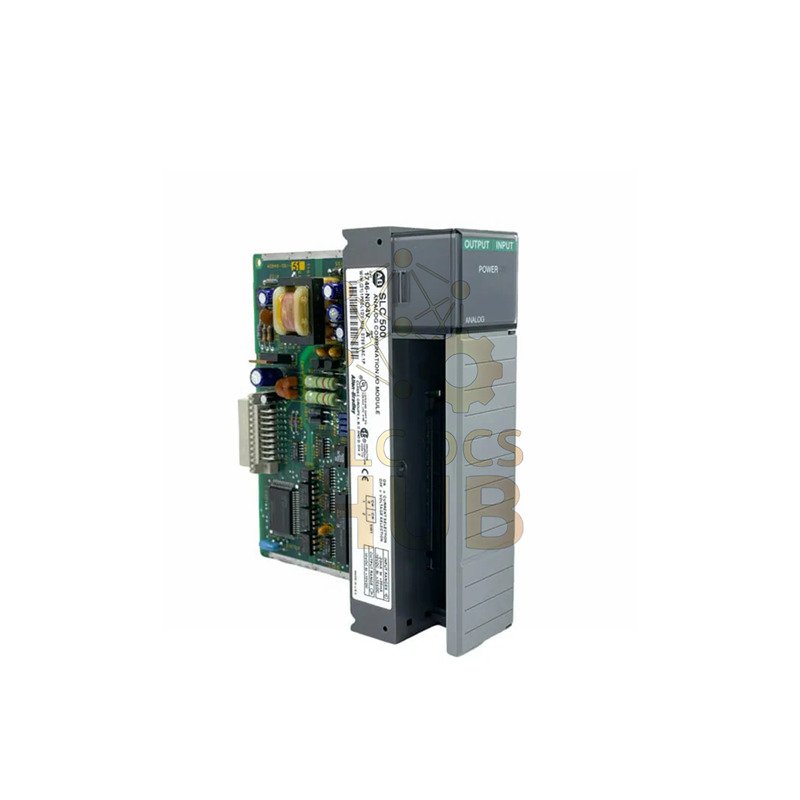

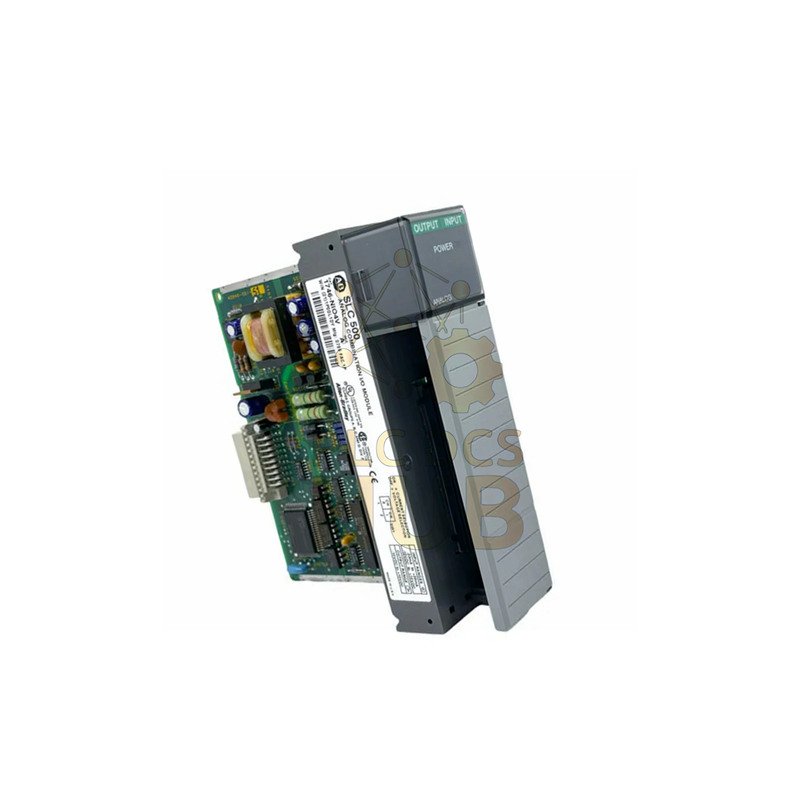

Allen-Bradley 1746-NIO4V: 2 Input / 2 Output Analog Combo Module

Compact Analog Control Solution

The Allen-Bradley 1746-NIO4V combines analog inputs and outputs in one module. It handles both voltage and current signals for your SLC 500 system. This 1746-NIO4V module offers high precision in a single slot design. It is perfect for applications needing both reading and control.

Key Technical Specifications

Brand: Allen-Bradley
Model: 1746-NIO4V
Type: Analog Combination I/O Module
Input Channels: 2 (configurable as voltage or current)
Voltage Input Range: -10 to +10V DC
Current Input Range: -20 to +20 mA
Input Resolution: 16-bit (305 µV / 1.22 µA per step)
Output Channels: 2 (voltage)
Output Range: -10 to +10V DC
Output Resolution: 14-bit
Response Time: 2.5 ms (output)
Isolation: 500V DC (field to backplane)
Backplane Power: 5V DC, 55 mA / 24V DC, 115 mA
Operating Temp: 0 to 60°C (32 to 140°F)
Connector: Removable terminal block
Recommended Cable: Belden #8761, 14 AWG

12 Month Warranty

We guarantee this 1746-NIO4V module for one full year. It covers any defects in materials or workmanship. We provide fast repair or replacement service. We ship worldwide using FedEx, UPS, and DHL.

Get The Complete Manual

• Learn wiring for both input and output channels.
• Understand configuration for voltage or current mode.
• Get calibration and accuracy specifications.
• Find programming examples for analog control.

Download SLC 500 Hardware Manual Here

Important Technical Questions

• Can inputs and outputs work at the same time?
  Yes. Both input channels and both output channels can operate simultaneously.
• What is the difference in resolution?
  Inputs have 16-bit resolution for high accuracy. Outputs have 14-bit resolution.
• How do I set voltage or current mode?
  You configure each input channel through software. No physical switches are needed.
• What controllers support this module?
  It works with SLC 500 controllers and can also be used with CompactLogix and ControlLogix systems.
• Is special wiring needed?
  Use shielded cable like Belden #8761. Keep wires away from power lines to avoid noise.
