Allen-Bradley 1746-OV16 | Digital Output | 24V DC Sinking Module

Description

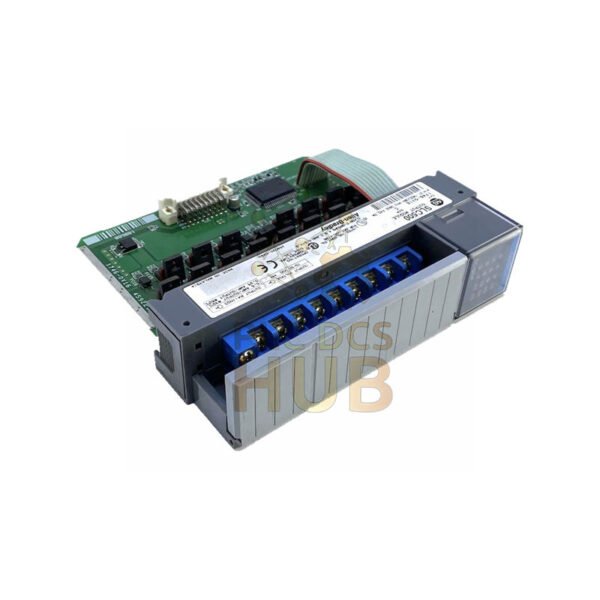

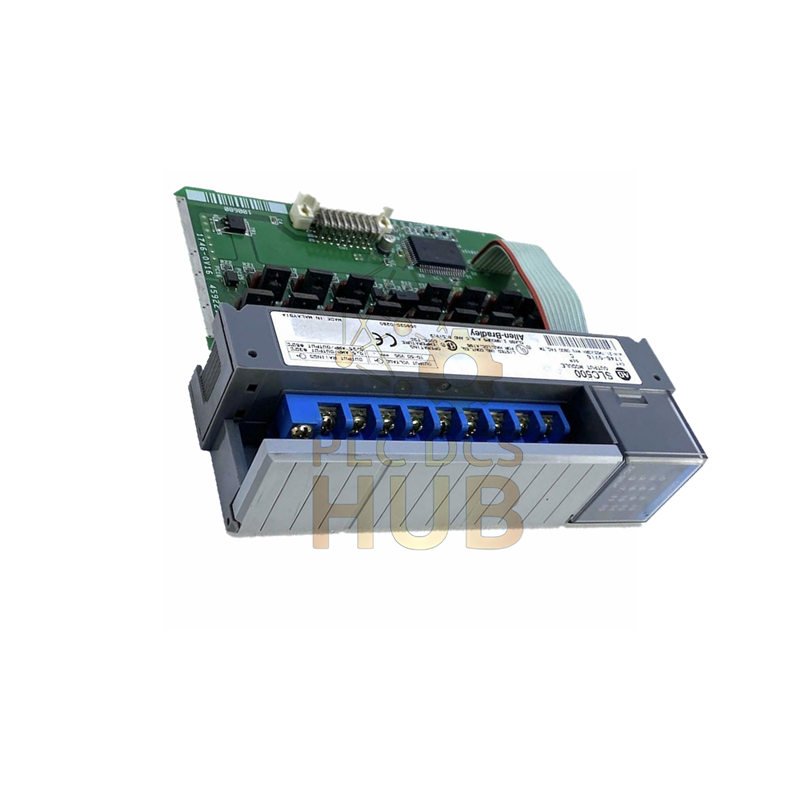

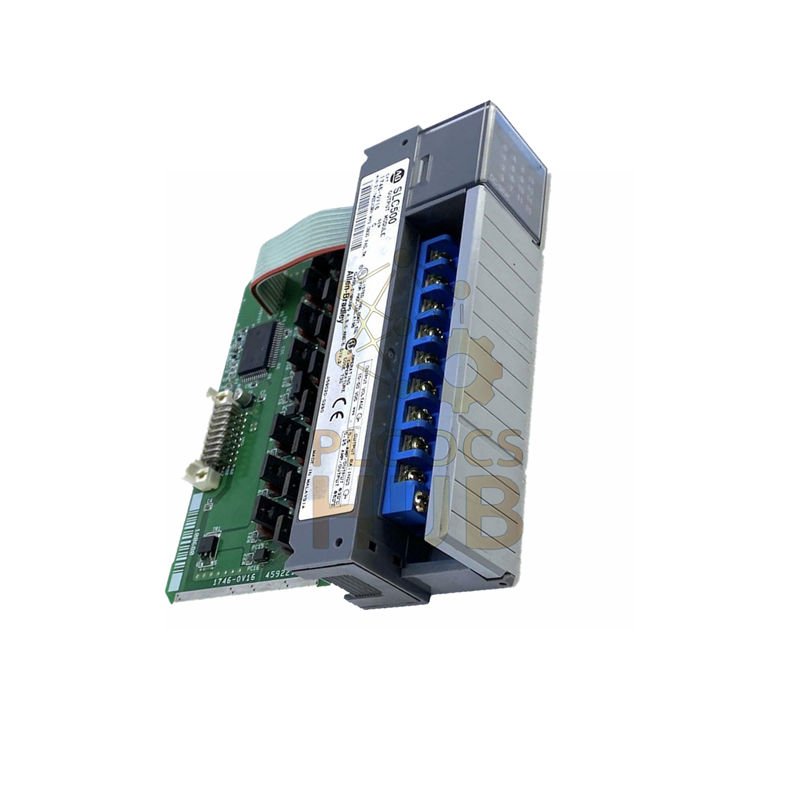

Allen-Bradley 1746-OV16 Sinking Output Module

The Allen-Bradley 1746-OV16 delivers high-density control for your SLC 500 system. This 16-channel sinking output module provides flexible 10-50VDC operation with excellent thermal performance. Its compact design makes it ideal for space-conscious panels requiring multiple output points.

Key Technical Specifications

• Brand & Manufacturer: Allen-Bradley / Rockwell Automation
• Model: 1746-OV16 (SLC 500 Series)
• Module Type: 24V DC Sinking Output
• Number of Outputs: 16 (Single group)
• Output Voltage Range: 10-50V DC
• Current Rating: 0.5A per point (8.0A total) @ 30°C / 0.25A per point (4.0A total) @ 60°C
• On-State Voltage Drop: 1.2V max. @ 0.5A
• Switching Speed: Turn ON: 0.1 ms / Turn OFF: 1.0 ms (Resistive Load)
• Surge Current: 3.0A for 10ms per point (repeatable every 1 second @ 30°C)
• Power Dissipation: 7.6 W Total (0.388 W per point)
• Backplane Current: 270 mA @ 5V DC
• Off-State Leakage Current: 1 mA maximum
• Minimum Load Current: 1 mA
• Operating Temperature: 0° to 60° C (32° to 140° F)
• Storage Temperature: -40° to 85° C (-40° to 185° F)
• Isolation Voltage: 1500V between I/O and logic

Installation & Compatibility

• Install in any SLC 500 modular chassis slot
• Features removable terminal block for easier wiring
• Compatible with all SLC 500 processors and hardware
• Single slot-width design saves panel space
• Requires external 10-50V DC power supply for output power

Packaging & Shipping

• Package includes: One (1) 1746-OV16 module with pre-installed terminal block
• We ship worldwide via FedEx, UPS, and DHL
• All items are carefully packed to ensure safe delivery

Warranty Information

• We provide a solid 12-month warranty on this module
• This warranty covers all defects in materials and workmanship
• Our support team will help you resolve any issues quickly

Frequently Asked Questions (FAQ)

• Q: What does “sinking output” mean for this module?
  A: Sinking configuration means the module provides a path to ground (-) when active, requiring positive (+) power to be supplied externally to the load.
• Q: Can I mix different output voltages within the same module?
  A: No, all 16 outputs share a common power supply and must operate at the same voltage within the 10-50VDC range.
• Q: How often can the surge current capability be used?
  A: At 30°C, you can use the 3A surge current for 10ms once every second; at 60°C, limit it to once every two seconds.
• Q: What wire size should I use for connections?
  A: We recommend using appropriate wire gauges for your current requirements, typically between 22-14 AWG for most applications.
• Q: Does this module provide short-circuit protection?
  A: No, you must provide external protection for short circuits and overload conditions to prevent damage to the module.

Download Complete User Manual

• For full installation, wiring, and specifications details: Download SLC 500 Hardware Manual Here
