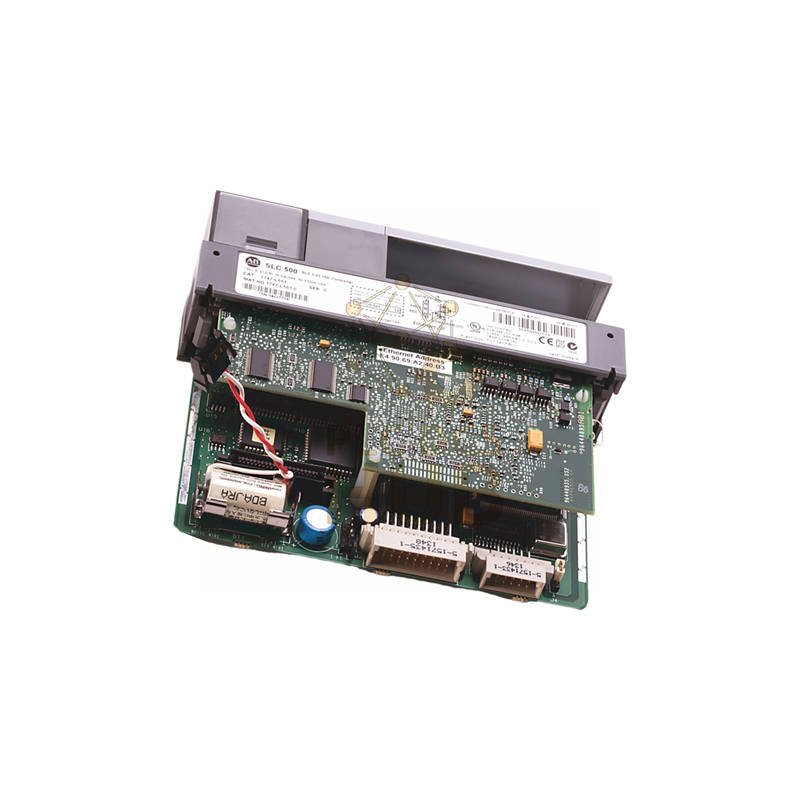

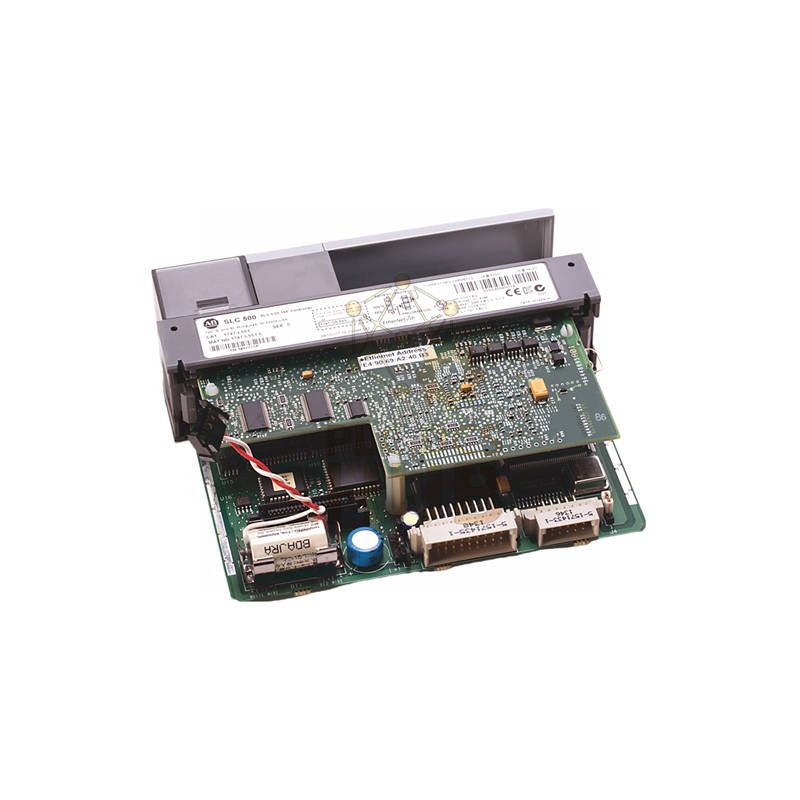

Allen-Bradley 1747-L552 SLC 5/05 Processor | Built-in Ethernet
Connect your automation system to the modern world with the 1747-L552 processor. This SLC 5/05 unit features integrated Ethernet for easy networking and IIoT readiness.
Important Documentation
- Complete installation and programming guide available
- Includes full specifications and wiring diagrams
- Download SLC 500 Manual Here
Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1747-L552
- Series: SLC 500
- Processor Type: SLC 5/05
- User Memory: 32,000 Words (32KB)
- Max Discrete I/O: 8192 Points
- Max Analog I/O: 480 Points
- Program Scan Time: 0.9 ms/K
- Bit Execution Time: 0.37 µs
- Communication Ports: Ethernet, RS-232
- Max Connections: 48 simultaneous
- Backplane Current: 1A @ 5V DC
- Battery Backup: 1747-BA Lithium Battery
- Battery Life: Approximately 2 years
- Operating Temperature: 32°F to 140°F (0°C to 60°C)
- Chassis Support: Up to 3 chassis, 30 module slots
- Programming Instructions: 107 instructions
Compatibility Notes
- Ideal for medium to large control applications
- Perfect for IIoT and enterprise integration
- Supports remote I/O topology
- Compatible with HMI, SCADA, and other network devices
Frequently Asked Questions
- Q1: What is the main advantage of the SLC 5/05 over other SLC processors?
- A1: The 1747-L552 features built-in Ethernet connectivity, making network integration much easier than with DH+ or DH485 protocols.
- Q2: How many devices can connect to the Ethernet port simultaneously?
- A2: The processor supports up to 48 incoming or outgoing connections, allowing communication with multiple devices on the network.
- Q3: What happens if the battery fails or is disconnected?
- A3: A capacitor provides about 30 minutes of backup power. You must reconnect the battery within this time to prevent program loss.
- Q4: Can I use this processor for remote I/O applications?
- A4: Yes, the 1747-L552 supports remote I/O topology, allowing you to distribute I/O modules across your facility.
- Q5: Is this processor BOOTP enabled?
- A5: Yes, the Ethernet interface is BOOTP enabled, allowing for flexible IP address assignment.
