Description
???? Description

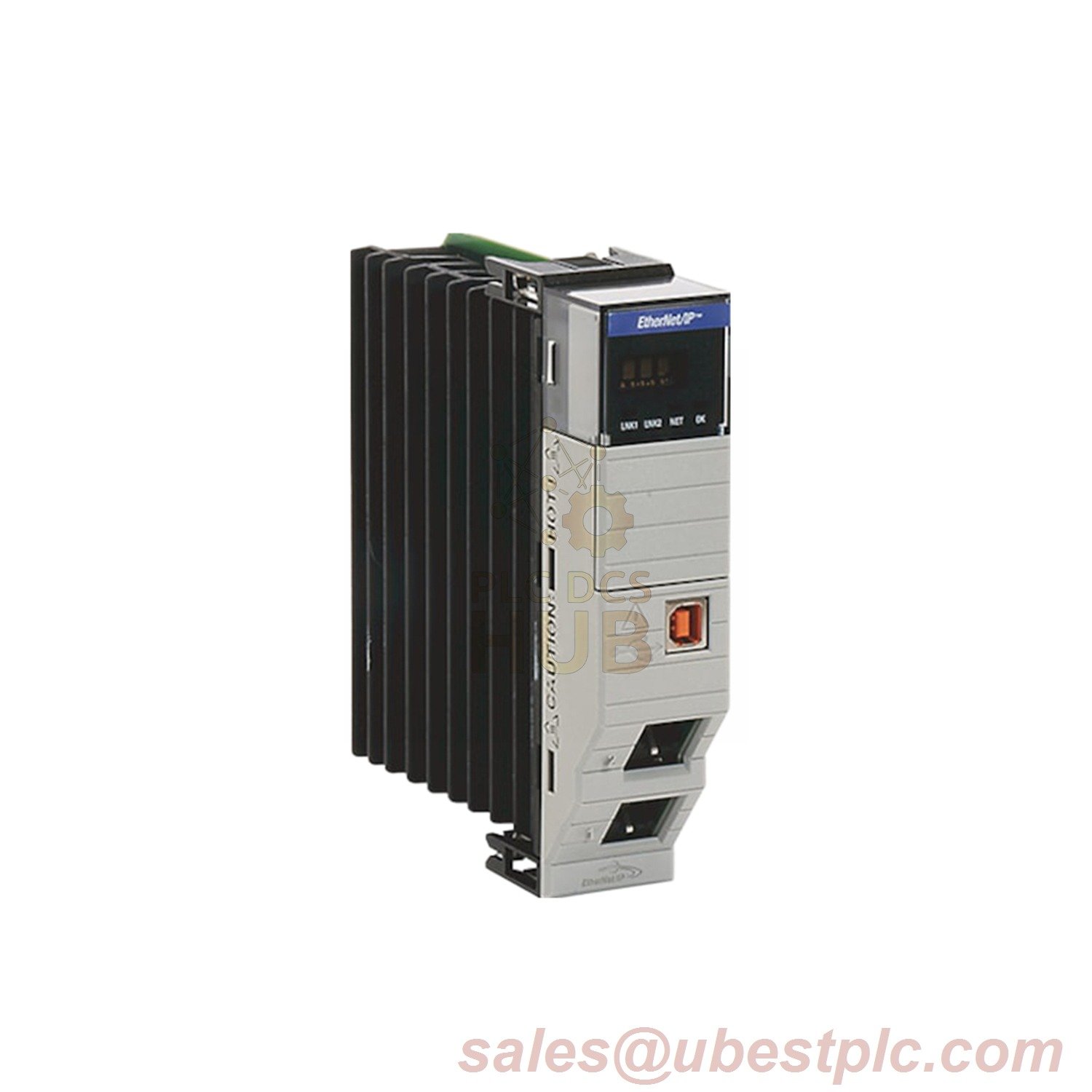

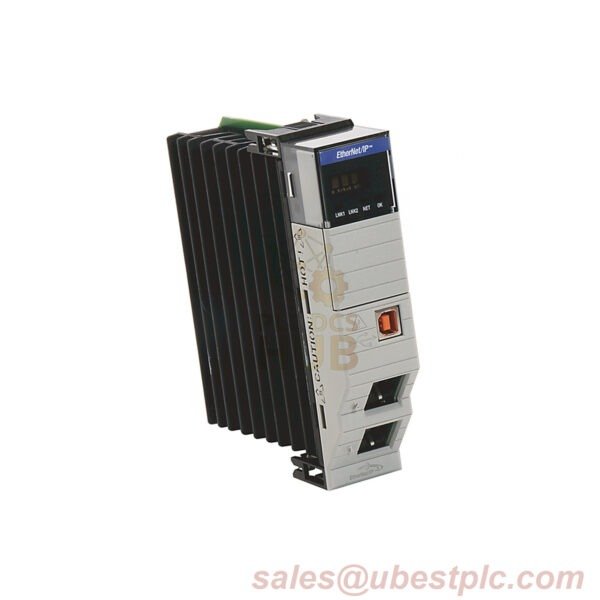

The Allen-Bradley 1756-ENET is an Ethernet communication module designed for ControlLogix systems. It provides seamless EtherNet/IP connectivity, supporting messaging, distributed I/O control, and real-time data exchange. This module features one RJ-45 Ethernet interface (10 Mbps, half-duplex) and one AUI port, enabling efficient communication across industrial networks. It can function as a scanner or adapter, optimizing control for Ethernet-based distributed I/O configurations.
⚙️ Technical Data
- Brand & Series: Rockwell Automation, Allen-Bradley ControlLogix
- Model Number: 1756-ENET
- Communication Ports: 1x Ethernet (10-BaseT), 1x AUI Port
- Data Transfer Speed: 10 Mbps
- Supported Functions: Scanner / Adapter, Messaging, Real-time I/O
- Compatible Chassis: 1756-A4, 1756-A7, 1756-A10, 1756-A13 (Series A & B)
- Compatible Power Supply: 1756-PA72, 1756-PB72
- Backplane Power Consumption: 900 mA (5.1V DC), 350 mA (24V DC)
- Maximum Power Dissipation: 13.3 Watts
- Operating Temperature: 32-140°F (0-60°C)
- Enclosure Type: Open
- Module Indicators: TXD, RXD, OK LED
- Product Lifecycle: Discontinued (Replaced by 1756-ENBT)
Click the official datasheet to discover more details: 1756 ControlLogix IO Modules Specifications
