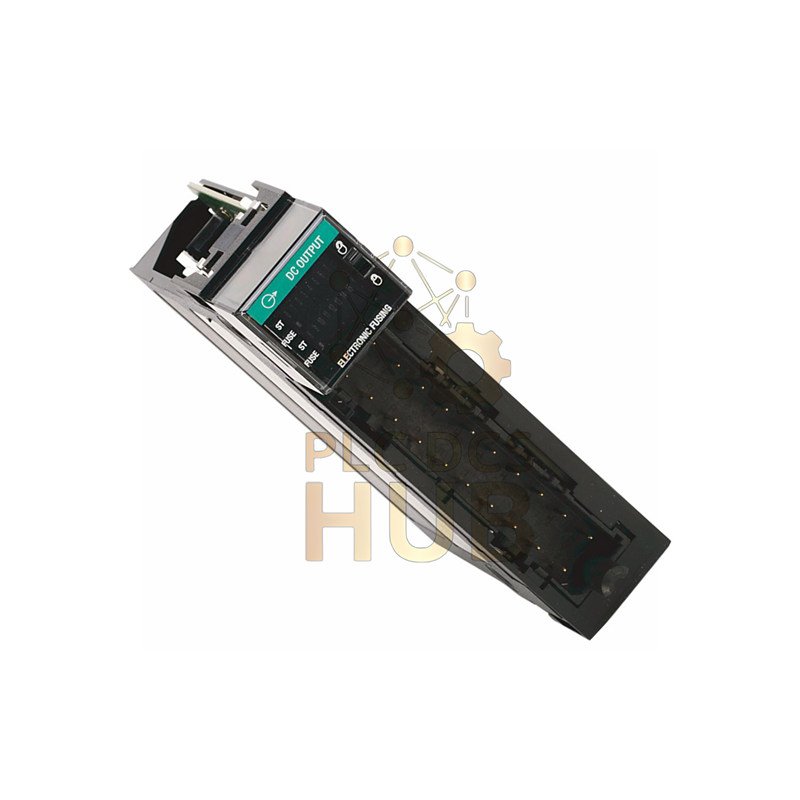

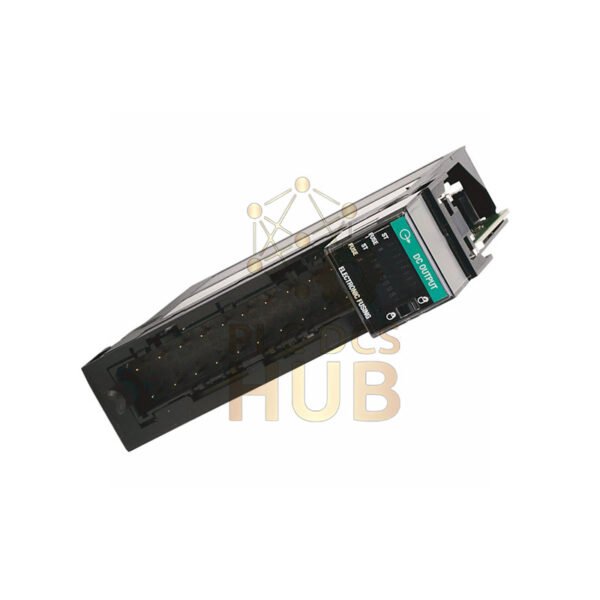

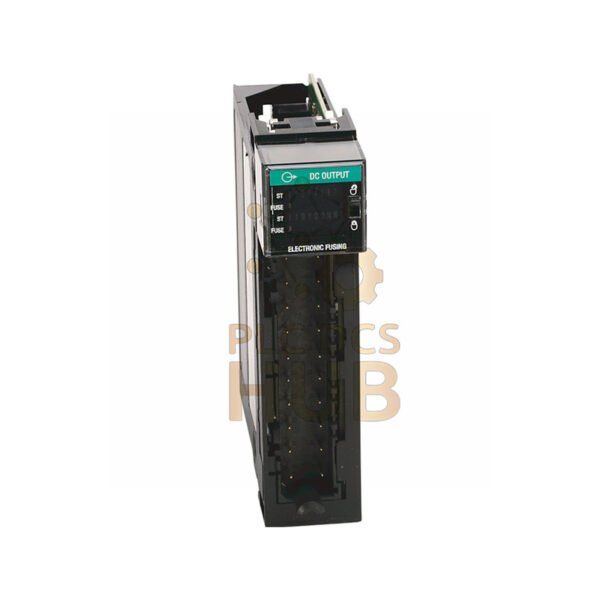

Allen-Bradley 1756-OB16EK ControlLogix 16-Channel Fused Output Module
Boost your ControlLogix system with the Allen-Bradley 1756-OB16EK DC output module. This robust module features 16 electronically fused outputs for superior protection against overloads. It is designed for reliable performance in industrial environments, handling a wide voltage range from 10 to 31.2V DC.
Complete Technical Data
Brand: Allen-Bradley
Model: 1756-OB16EK (Full Suffix Information: -EK)
Series: ControlLogix
Module Type: Electronically Fused DC Output
Output Points: 16
Voltage Category: 12/24V DC Source
Operating Voltage: 10-31.2V DC
Max Current Per Point: 1A @ 60°C
Max Current Per Module: 8A @ 60°C
Power Dissipation: 4.1W @ 60°C
Backplane Current: 250mA @ 5V
Isolation Voltage: 50V Continuous
Terminal Block: 1756-TBNH or 1756-TBSH (Sold Separately)
Operating Temperature: Standard industrial range
Installation & Compatibility
This module installs in any ControlLogix I/O slot. You must use a 1756-TBNH or 1756-TBSH removable terminal block (sold separately) for wiring. It is fully compatible with Allen-Bradley ControlLogix PLCs and software like Studio 5000.
Package Contents & Warranty
Package Includes:
– One (1) Allen-Bradley 1756-OB16EK Output Module
– Product documentation is provided online.
Warranty: We provide a full 12-month warranty on this product.
Downloads & Shipping
For full wiring diagrams and specifications, download the datasheet here.
We ship worldwide via FedEx, UPS, and DHL for fast and reliable delivery.
