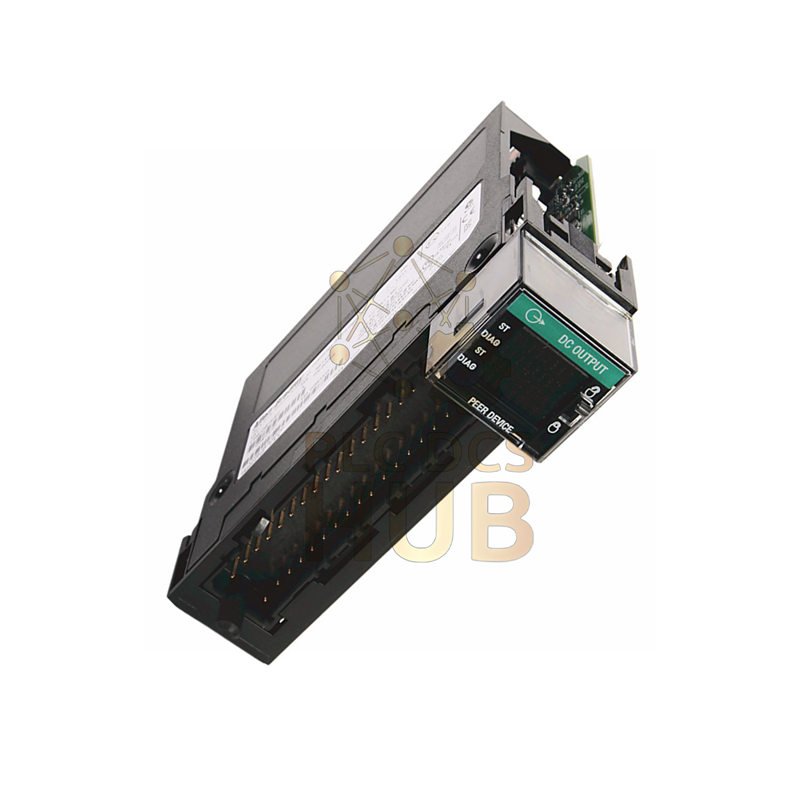

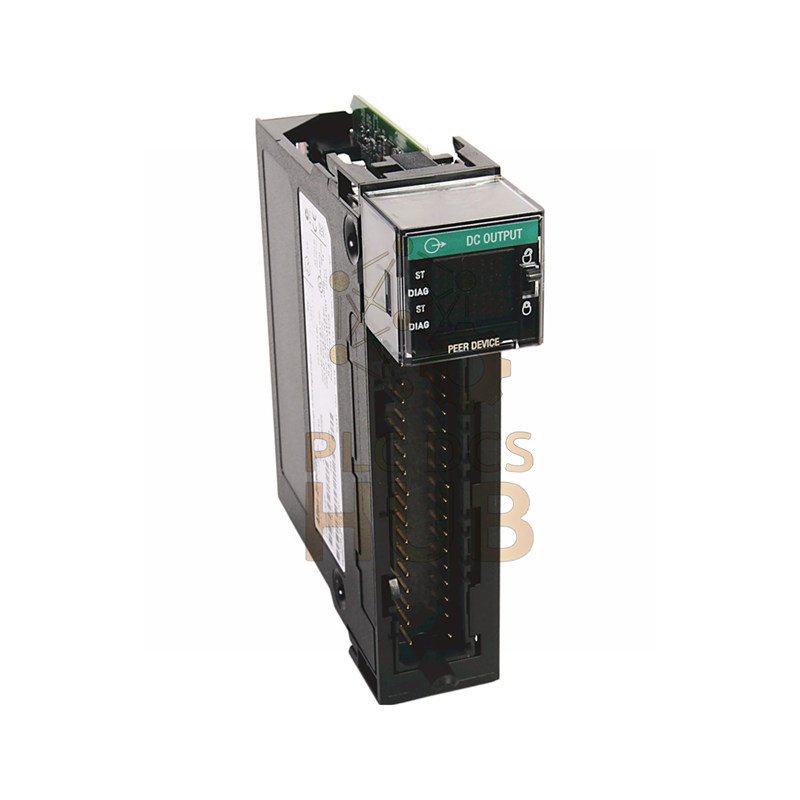

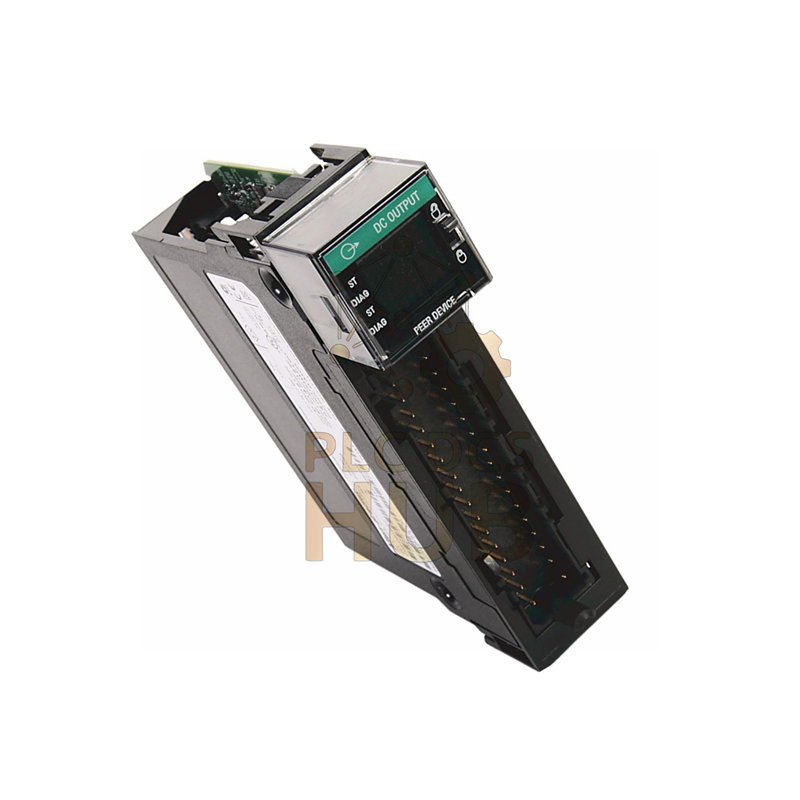

Allen-Bradley 1756-OB16IEFK ControlLogix 16-Point DC Output Module

Description

Allen-Bradley 1756-OB16IEFK DC Output Module

Get strong power control with the Allen-Bradley 1756-OB16IEFK. This 1756-OB16IEFK module is made for tough jobs. It has 16 outputs for DC power. It works with many voltages and keeps your machines safe.

Key Features

• 16 outputs for big tasks
• Handles 10-30V DC power
• Gives 2 Amps per point when cool
• Easy to wire with removable blocks
• Works with ControlLogix systems

Tech Details

Brand: Allen-Bradley
Model: 1756-OB16IEFK
Type: DC Output Module
Voltage: 10-30V DC
Current Per Point: 2A @ 30°C, 1A @ 60°C
Total Current: 8A @ 30°C, 4A @ 60°C
Power Use: 3.6W @ 60°C
5V Power: 350mA
Terminal Blocks: 1756-TBCH, 1756-TBS6H
Isolation: 50V

Common Questions

• What is the max current per output?
  You get 2 Amps when at 30°C, and 1 Amp when at 60°C.
• What terminal blocks fit this 1756-OB16IEFK module?
  Use 1756-TBCH or 1756-TBS6H blocks.
• What voltage does it need?
  It works with 10 to 30 Volts DC.
• How much power does it use?
  It uses up to 3.6 Watts of power.
• How many outputs does it have?
  It has 16 DC output points.

What You Get

• One 1756-OB16IEFK module
• One-year product warranty

Get More Info

• Learn more about this product
• See wiring guides
• Get full tech details
• Download the datasheet here

We ship fast using FedEx, UPS, and DHL.
