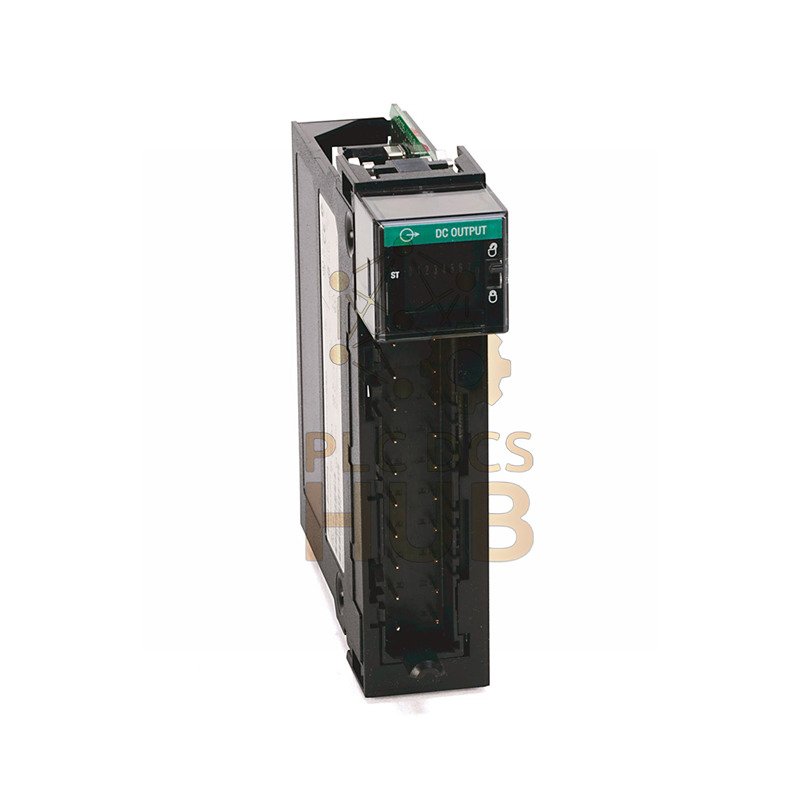

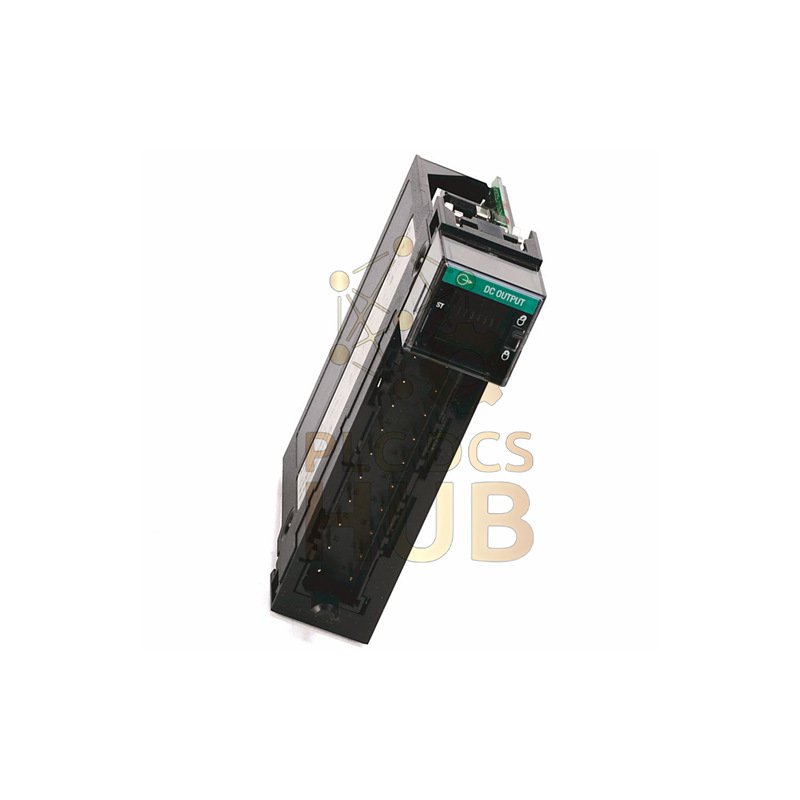

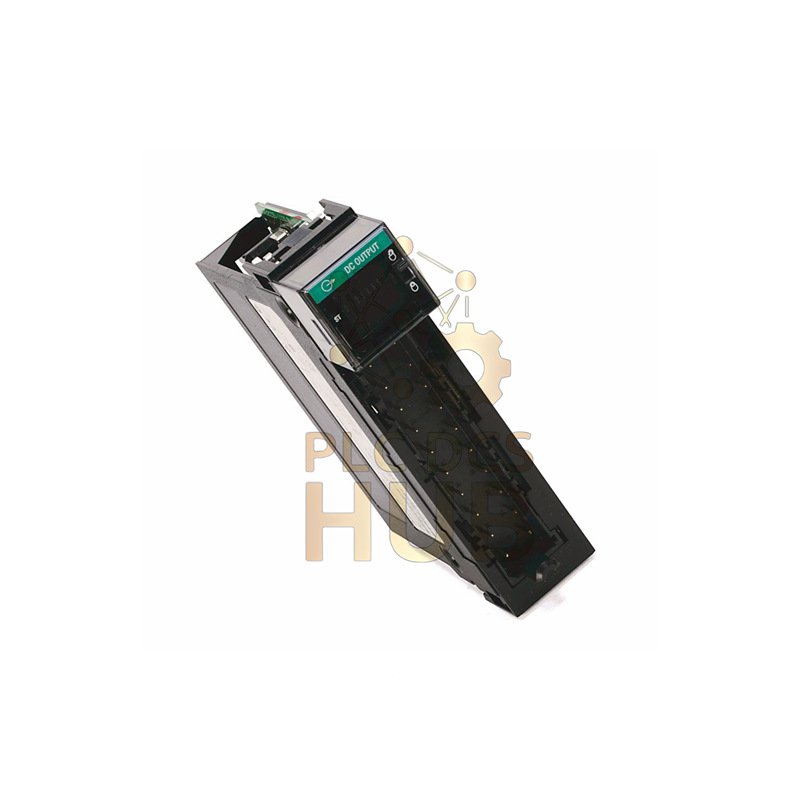

Allen-Bradley 1756-OC8 ControlLogix High-Voltage Output Module
Power higher voltage devices with the Allen-Bradley 1756-OC8. This 1756-OC8 module handles 30-60V DC applications with strong 2A output per point. It features eight outputs in a compact design. Ideal for industrial controls needing higher voltage capability.
Main Benefits
- Higher voltage range 30-60V DC operation
- 2A output current per channel
- 8 output points in single slot
- Fast switching under 2ms response
- Works with standard ControlLogix systems
Complete Specifications
Brand: Allen-Bradley
Model: 1756-OC8
Series: ControlLogix
Type: 8-Point DC Output Module
Voltage Range: 30-60V DC
Nominal Voltage: 48V DC
Current Per Point: 2A @ 60°C
Total Module Current: 8A @ 60°C
Surge Capacity: 4A for 10ms
Power Dissipation: 4.9W max
On-State Voltage Drop: 2V max
Off-State Leakage: 1mA max per point
Response Time: 1ms ON, 2ms OFF
Backplane Current: 165mA @ 5.1V
Terminal Blocks: 1756-TBNH, 1756-TBSH
Thermal Dissipation: 16.71 BTU/hour
