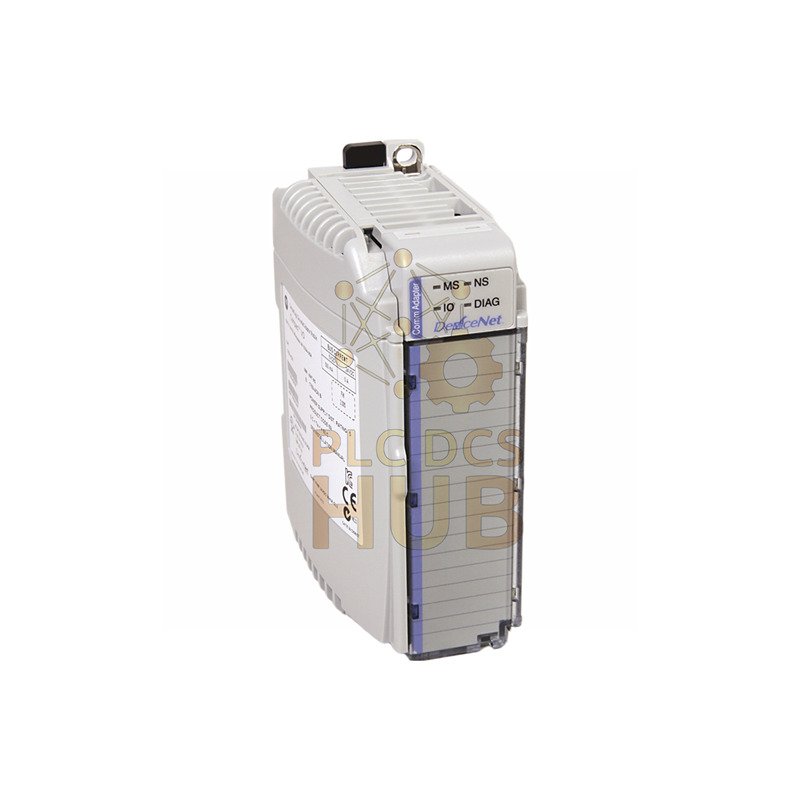

Allen-Bradley 1769-ADN CompactLogix DeviceNet Scanner Module
The Allen-Bradley 1769-ADN is a communication module that connects CompactLogix systems to DeviceNet networks. It lets your controller talk to sensors, drives, and other devices on the factory floor. This module simplifies wiring and reduces installation time.
Technical Specifications
Brand: Allen-Bradley
Model: 1769-ADN
Network: DeviceNet
Data Rates: 125K, 250K, 500K bps
Backplane Current: Series A: 450mA @ 5V DC, Series B: 500mA @ 5V DC
Power Consumption: 33.6 Watts
Isolation Voltage: 30V Continuous
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Dimensions: 118mm H x 87mm D x 50mm W (4.65″ x 3.43″ x 1.97″)
Weight: 0.6 lbs (0.27 kg)
Installation Guide
Install the module on a DIN rail or panel within 4-5 modules of the power supply. Ensure bus connectors are securely locked for proper electrical connection.
FAQ
- 1. What controllers work with the 1769-ADN?
It works with 1769 CompactLogix and MicroLogix 1500 controllers. - 2. What communication speeds does it support?
It supports 125K, 250K, and 500K bits per second data rates. - 3. How many devices can connect to the network?
It supports up to 30 I/O nodes on the DeviceNet network. - 4. What is the maximum cable length?
Cable length depends on speed: 500m at 125Kbps, 250m at 250Kbps, 100m at 500Kbps. - 5. What are the power requirements?
It requires 11-25V DC and draws 90mA at 24V DC.
Packaging & Warranty
Package Includes: One (1) Allen-Bradley 1769-ADN DeviceNet Adapter Module.
This product comes with a 12-month warranty.
Shipping
We ship internationally using FedEx, UPS, and DHL.
