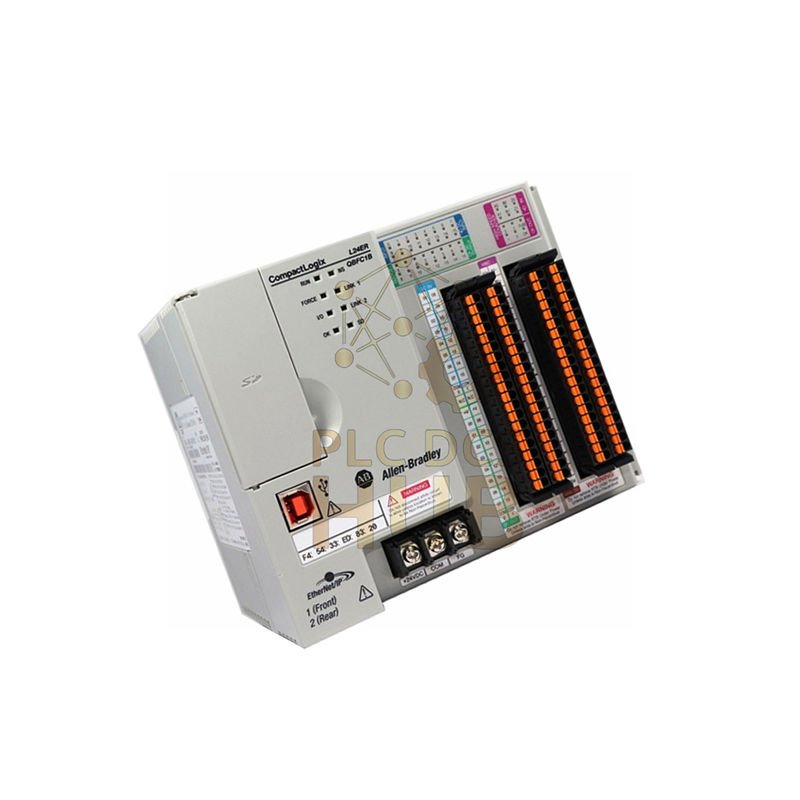

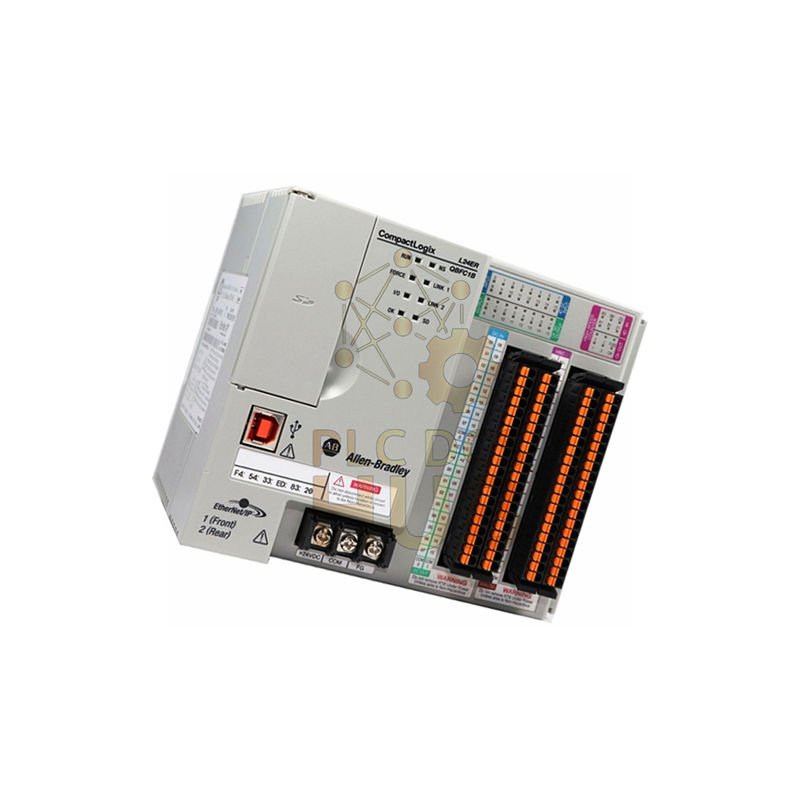

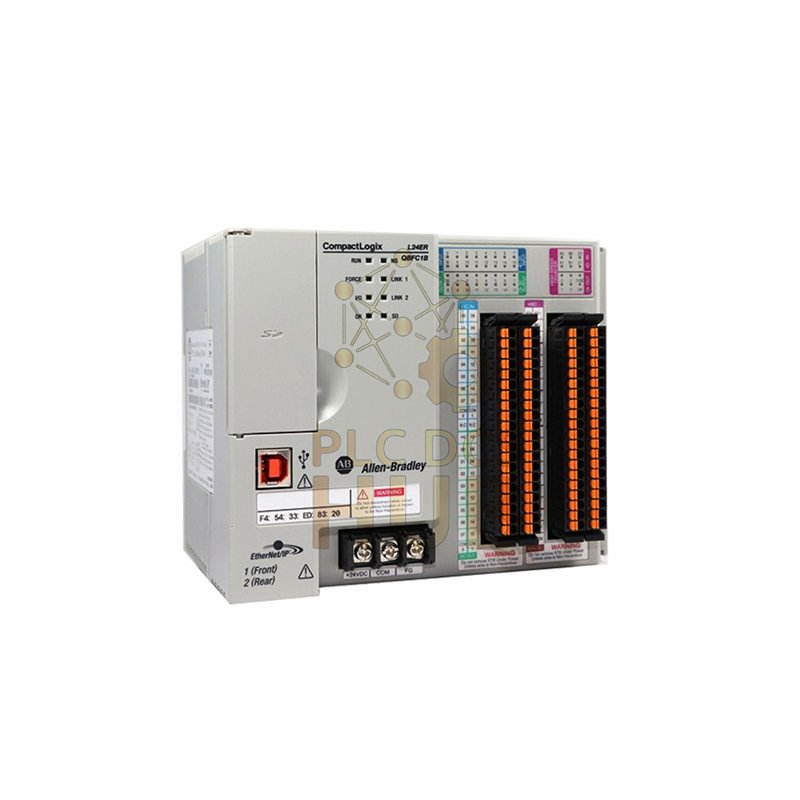

Allen-Bradley 1769-L24ER-QBFC1B CompactLogix Controller
The Allen-Bradley 1769-L24ER-QBFC1B is a powerful all-in-one controller. It is part of the CompactLogix 5370 family. This controller is perfect for small machines. It works well for packaging, conveyors, and material handling.
This unit has many features built-in. This saves space and cost. You get digital inputs, digital outputs, analog inputs, analog outputs, and high-speed counters. No need for extra modules for basic tasks.
Key Features
- Built-in I/O: 16 Inputs, 16 Outputs, 4 Analog Inputs, 2 Analog Outputs.
- Fast Counters: 4 high-speed counter inputs for precise counting.
- Easy to Connect: 2 Ethernet ports, 1 USB port, and 1 RS232 port.
- Simple Motion: Controls up to 2 axes for basic movement.
- Large Memory: 1MB memory, expandable with a SD card.
Technical Specifications
- Brand: Allen-Bradley
- Model: 1769-L24ER-QBFC1B
- Input Voltage: 24V DC
- Digital Inputs: 16 points, 24V DC
- Digital Outputs: 16 points, 24V DC
- Analog Inputs: 4 points
- Analog Outputs: 2 points
- Communication: EtherNet/IP, USB, RS232
Installation
Mount the controller on a DIN rail. Leave 50 mm (2 inches) of space around it. This allows for proper cooling. Use the correct terminal block (1769-RTBN18).
Compatibility
You can add up to 4 extra I/O modules. It works with common programming languages. Need to connect a drive? See the 1769-SM1 Module. Need an extension cable? See the 1769-CRL3 Cable.
Shipping & Warranty
We ship fast worldwide. We use FedEx, UPS, and DHL. Your order comes with the controller and a 1GB memory card. It is protected by a 12-month warranty.
