Description

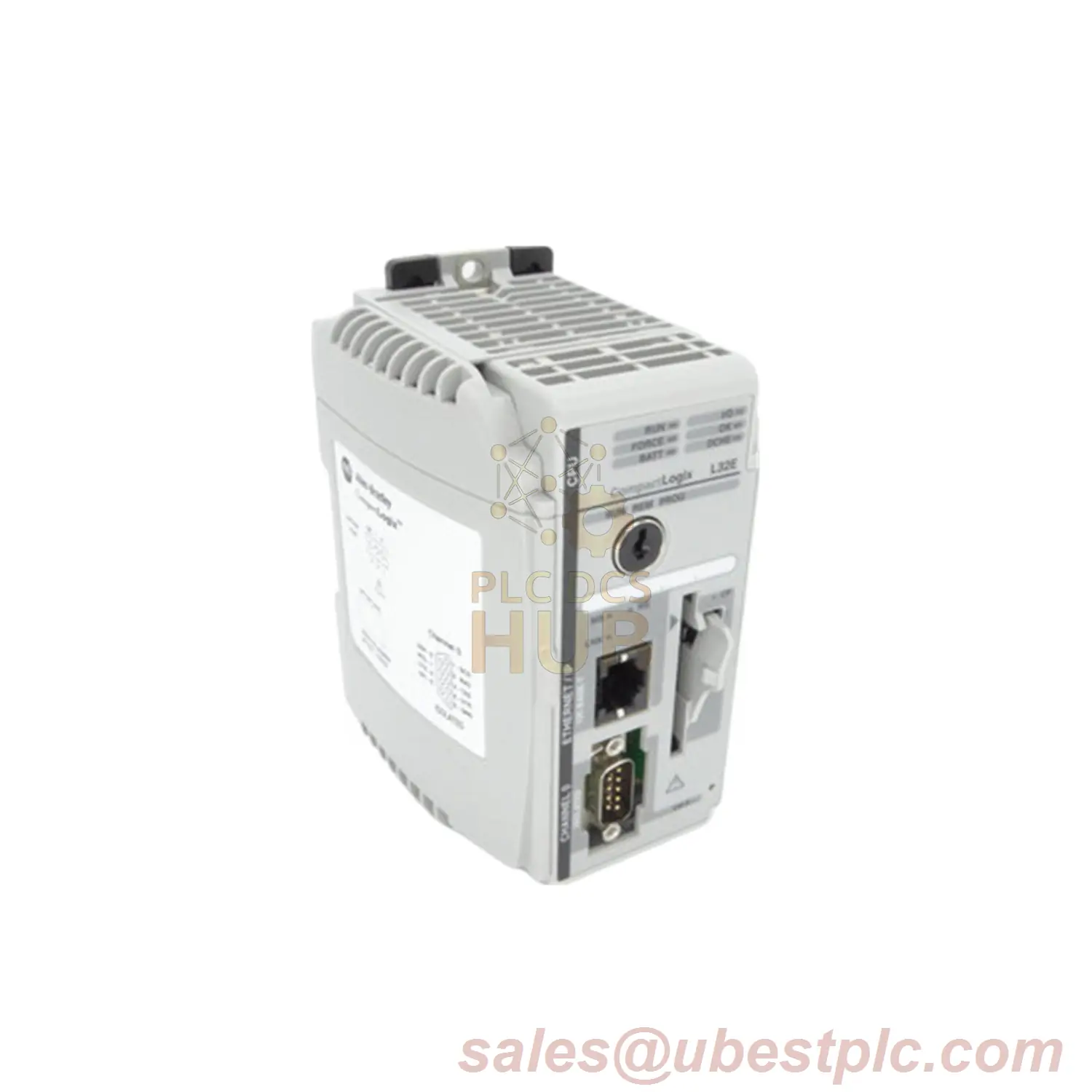

Allen-Bradley 1769-L32E CompactLogix Programmable Automation Controller
High-performance industrial controller with Ethernet/IP connectivity. Perfect for compact automation systems needing fast processing and reliable control.
Key Features
- 750KB memory for complex programs
- Supports 16 I/O modules across 3 banks
- Dual ports: Ethernet/IP + RS232
- Industrial durability: 400,000 hours MTBF
- Wide temperature range: -40°C to 85°C
Technical Specifications
| Brand | Allen-Bradley |
| Model | 1769-L32E |
| Series | CompactLogix |
| Type | Programmable Automation Controller |
| Memory | 750 KB |
| Max I/O Modules | 16 modules |
| Ethernet Speed | 100 Mbps |
| Power Supply | 24V DC (75W max) |
| Operating Temp | 0° to 60°C (32° to 140°F) |
Installation Guide
- Use 22-14 AWG copper wiring (90°C rated)
- Maintain 50mm clearance around unit
- Secure mounting in vibration-prone areas
- Program with 1747-CP3/1756-CP3 cable
Diagnostics & Maintenance
- Monitor via Studio 5000 software
- Replace battery (1747-BA) every 2 years
- Check for firmware updates quarterly
- Clean vents with dry air annually
Packaging Includes
- 1769-L32E Controller Unit
- Installation guide
- Terminal labels
Shipping Options
FedEx | UPS | DHL – Global express shipping
Industry Applications
- Small machine control cells
- Material handling systems
- Packaging equipment
- Water treatment controls
FAQ
Q: What software programs this controller?
A: Rockwell Studio 5000 Logix Designer
Q: Is the battery included?
A: No – use compatible 1747-BA battery
Q: Can it connect to wireless networks?
A: Only via wired Ethernet or RS232
