Description
Product Overview

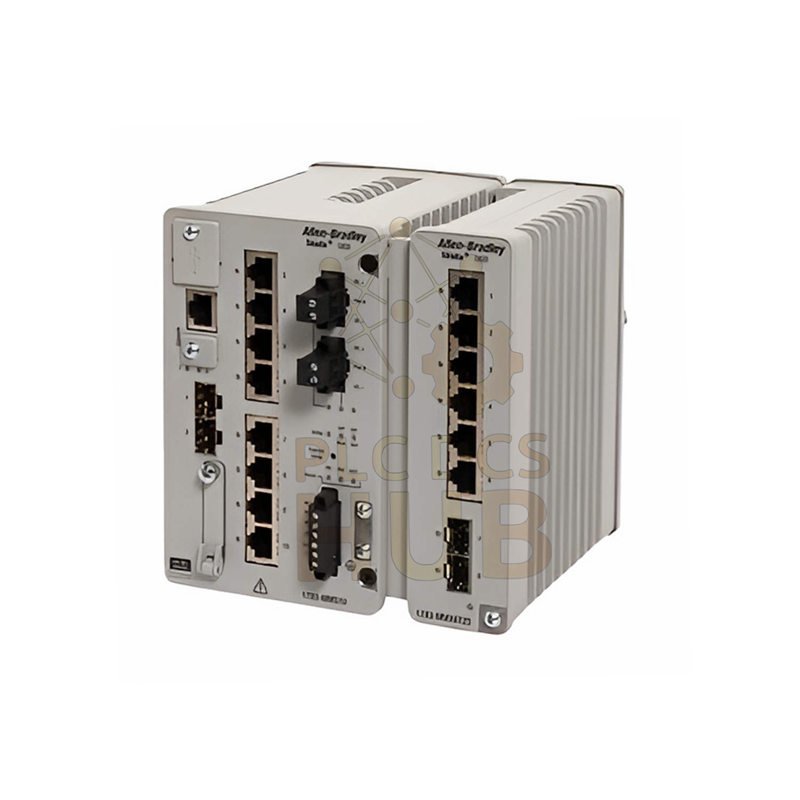

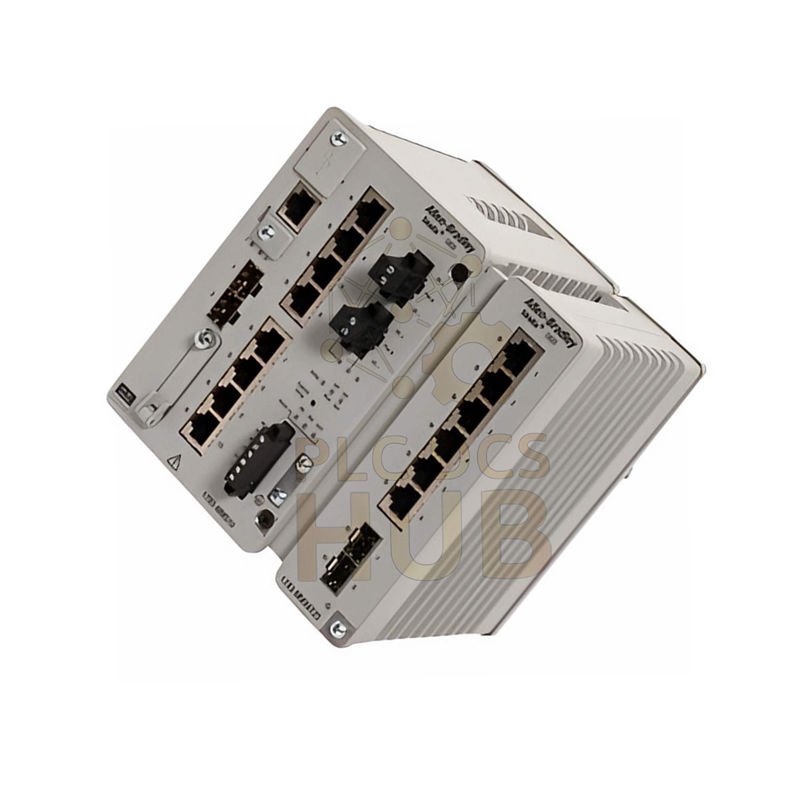

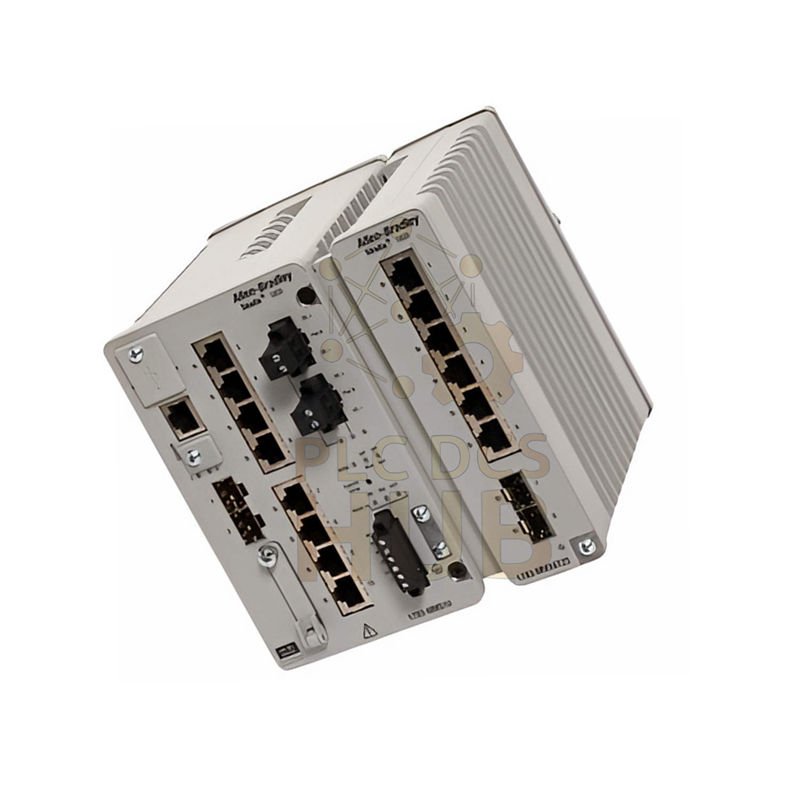

- The Allen-Bradley 1783-MMX16T Stratix 5800 is a 16-port Gigabit expansion module for industrial networks.
- It supports secure data traffic in automation systems.
- It improves bandwidth for PLC, SCADA, and machine networks.
- Design fits rugged plants with cold and hot environments.
Core Features
- 16 Gigabit Ethernet ports for fast data exchange
- 1 Gbps data transfer for stable throughput
- DIN-rail mounting for control cabinets
- IP30 enclosure for industrial spaces
- Low 5W power consumption
Technical Data (MECE Structure)
- Brand: Allen-Bradley
- Model: 1783-MMX16T
- Series: Stratix 5800
- Input Voltage: 24V DC
- Power Consumption: 5W
- Ethernet Ports: 16 ports, 1 Gbps
- Enclosure: IP30
- Weight: 1.2 kg
- Operating Temperature: −40°C to 60°C
- Mounting: DIN Rail
- UPC: 191326696999 / 19132669699
Environmental & Reliability
- Temperature Rating: −40°C to 60°C
- Stable operation with electrical noise in plants
- Resists vibration common in machines
- Designed for long-term cabinet use
Installation Guide
- Mount on DIN rail near network host
- Connect power before data wiring
- Use shielded cables for better signal
- Check grounding before startup
Commissioning & Maintenance
- Check link LEDs during startup
- Keep routing simple for best speed
- Clean dust from vents every 6 months
- Inspect terminals to avoid loose wiring
Compatibility
- Works with Stratix 5800 base units
- Connects to PLC, DCS, SCADA hardware
- Fits industrial switches with 1 Gbps links
Certifications
- Conforms to industrial network safety standards
- Meets electrical protection rules for plant use
Package List
- 1 x 1783-MMX16T module
- 1 x DIN rail latch
- 1 x user reference sheet
Warranty & Logistics
- 12-month warranty from shipment date
- Fast delivery via FedEx, UPS, or DHL
- Export packing for long-distance freight
Typical Applications
- PLC and DCS network expansion
- SCADA and MES data routing
- Machine-to-machine communication
- Factory Ethernet I/O aggregation
Diagnostic Capabilities
- LED link status for quick checks
- Port activity feedback
- Simple fault tracing with cable inspection
Selection Guidance
- Choose this model when extra ports are needed
- Choose shielded cables for noisy environments
- Choose matching Stratix units for best uptime
FAQ
- How does it support network expansion
Network traffic increases with more Gigabit ports.
- What is the startup check process
Check LEDs, grounding, and power input first.
- How to reduce signal noise
Use shielded cables and secure grounding.
- Can it run in cold plants
Yes. The unit tolerates −40°C conditions.
