Description

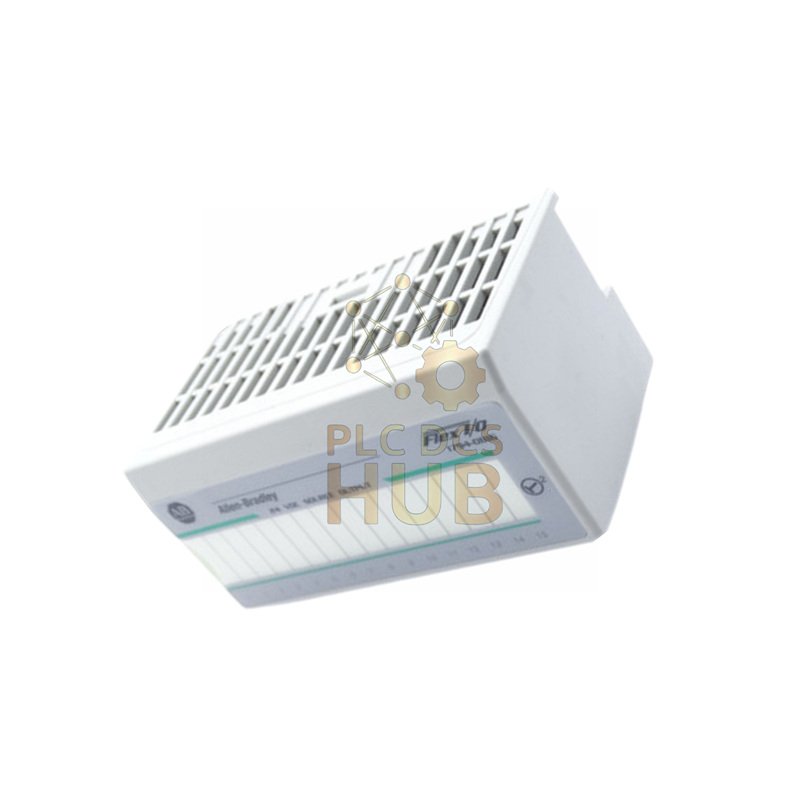

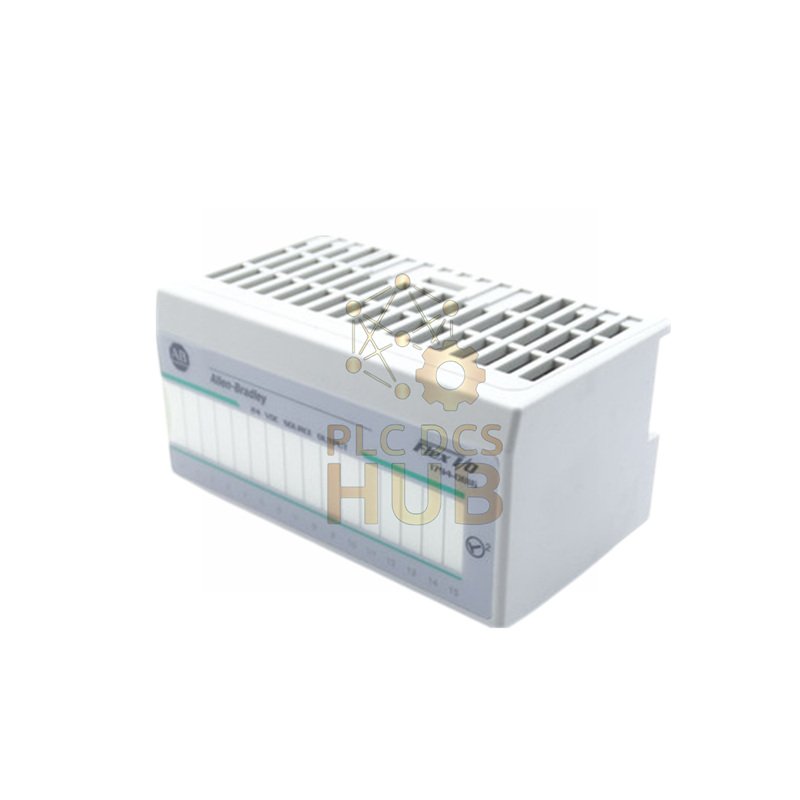

Allen-Bradley 1794-OB16 Flex I/O 24V DC Output Module
Get reliable control with the Allen-Bradley 1794-OB16 digital output module. This Flex I/O module features 16 sourcing outputs for 24V DC applications. It is perfect for easy integration into any automation system, offering strong performance and simple setup.
Technical Data
Brand: Allen-Bradley
Model: 1794-OB16
Series: Flex I/O
Module Type: 24V DC Digital Output
Number of Outputs: 16 Points, Sourcing
Output Voltage: 24V DC Nominal (10 – 31.2V DC Range)
Max Current per Point: 0.5 A
Total Current Rating: 8.0 A
On-state Voltage Drop: 0.5V DC max.
Off-state Leakage Current: 0.5 mA max.
Power Dissipation: 5.3W max.
Operating Temperature: 0 to 55 °C (32 to 131 °F)
Compatible Terminal Bases
This 1794-OB16 module installs directly onto these bases: 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3K, and 1794-TB3SK.
Warranty & Shipping
We offer a 12-month warranty on this module. We ship quickly worldwide using FedEx, UPS, and DHL.
Frequently Asked Questions
- How many modules can I put in one rack?
You can install up to 8 of these 1794-OB16 modules in a single Flex I/O rack. - What is the surge current rating?
It can handle a surge current of 2 Amps for 50 milliseconds, repeatable every 2 seconds. - Does it have built-in fuses?
No, this module does not include internal fusing. External fusing is recommended for protection. - What do the LED indicators show?
The 16 yellow LEDs show the on/off status for each output channel. - Can it be used with a FlexLogix controller?
Yes, this module can be used as local I/O for a FlexLogix controller.
Compare With Similar Products
See how it compares to other Flex I/O components:
• Allen-Bradley 1794-PS3 Power Supply
• Allen-Bradley 1794-TB32 Terminal Base
