Allen Bradley 22B-D010F104 Drive PowerFlex 40P

Description

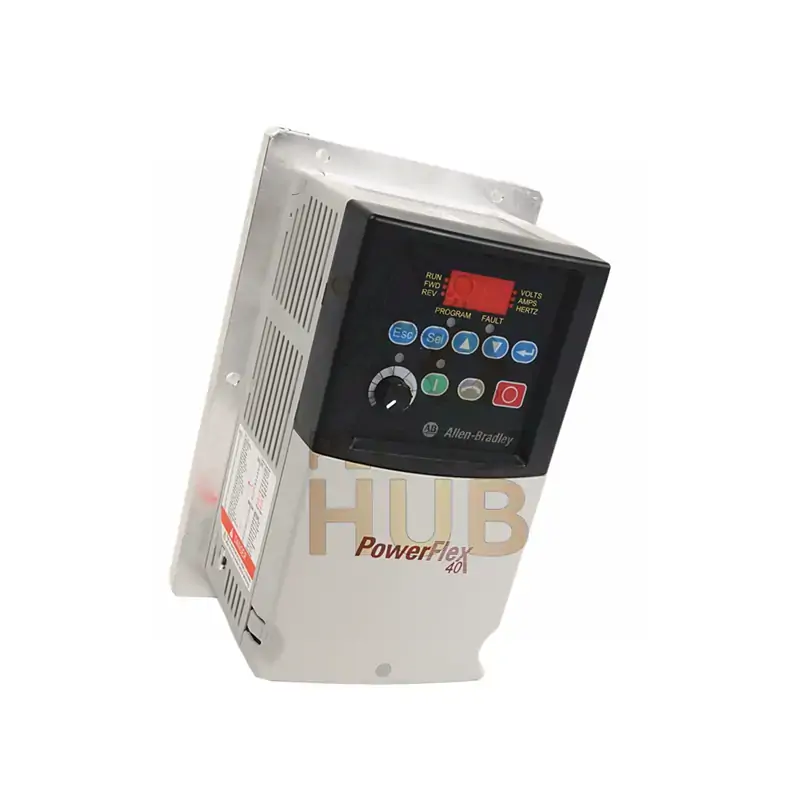

Allen-Bradley PowerFlex 40 Drive – 22B-D010F104

Industrial-grade motor control with the 22B-D010F104 variable frequency drive. Perfect for 480V systems needing 5 HP power and 10.5A output. Features sensorless vector control for precise speed regulation.

Top Features

• 5 HP (3.7 kW) power output
• 10.5A current capacity
• Works with 380-480V AC, 3-phase
• Flange mount IP20 enclosure
• Built-in RS-485 communication
• Simple keypad programming

Technical Specifications

• Model: 22B-D010F104
• Input Frequency: 50/60 Hz
• Dimensions: 250 x 244 x 94 mm
• Weight: 4.53 kg (10 lbs)
• Mounting: Flange (IP20 front/IP40 back)
• Operating Temp: 0°C to 40°C (32°F to 104°F)
• Pollution Degree: Level 2
• Safety Standards: UL, cUL, CE

FAQ

• Can this drive work outdoors? No, only for indoor use (not in direct sunlight).
• What’s the maximum ambient temperature? 40°C (104°F).
• Does it include a CE filter? No, this is a filterless model.
• What networks does it support? RS-485 built-in, optional cards available.
• Is the keypad removable? Yes, for flexible mounting.

Shipping & Support

• 12-month warranty
• Fast global delivery via FedEx, UPS, or DHL
• Technical support available

Compare Models

• 22B-V2P3C104 – 2.3A, IP66 enclosure
• 22B-V2P3F104 – 2.3A, with filter
