Allen-Bradley | 22C-B049A103 | Powerflex 400 AC Drive Large Stock

Description

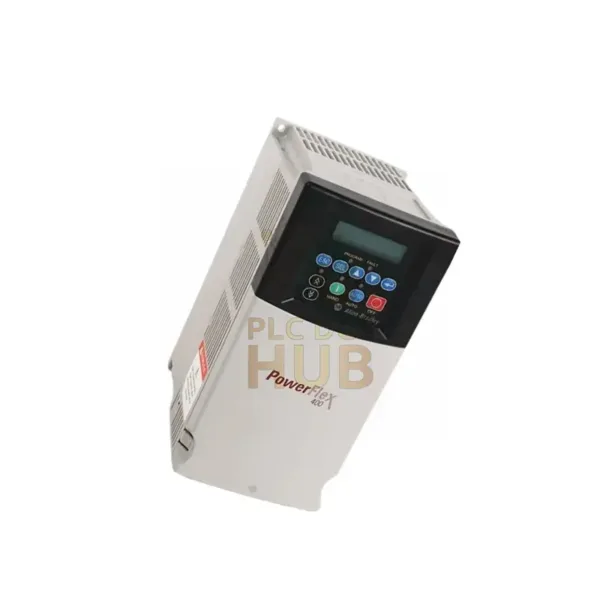

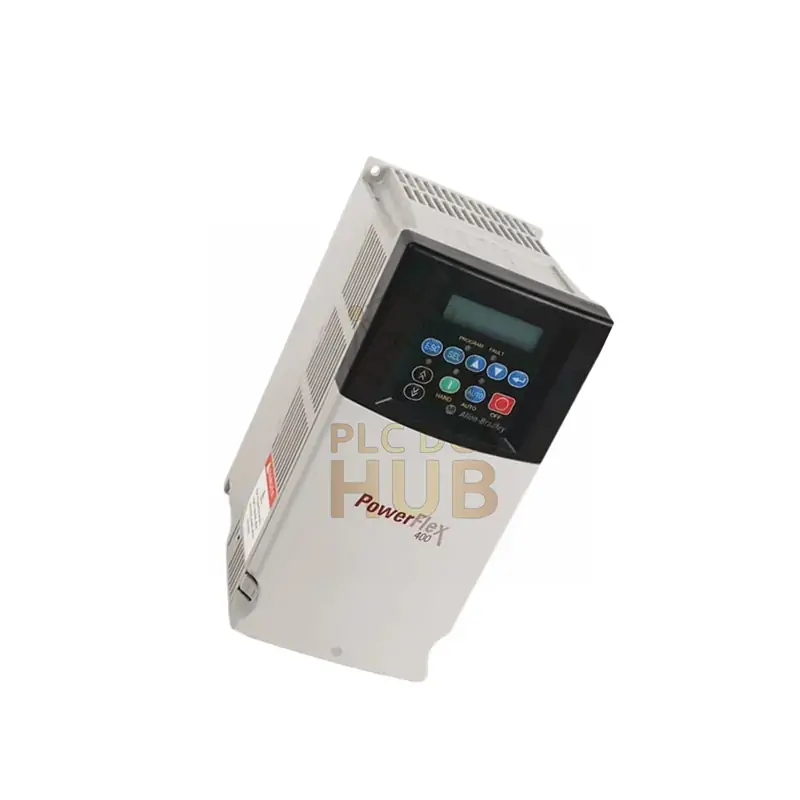

Allen-Bradley PowerFlex 400 VFD – 22C-B049A103 (15HP, 240V, 49A)

Quick Facts

• 15 HP motor control for pumps & fans
• Works with 180-265V AC, 3-phase power
• Built-in PID control for smart speed adjustment
• Fire safety mode for emergency use
• Simple panel mounting (IP30 rated)

Need details? Download the 22C-B049A103 manual here

Technical Specs

• Model: Allen-Bradley 22C-B049A103
• Power: 15 HP (11 kW) | Current: 49A
• Voltage In: 180-265V AC, 3-phase
• Voltage Out: 0-230V AC
• Frequency: 48-63 Hz
• Connections: 7 digital inputs, 2 analog inputs
• Communication: RS485, optional Ethernet/ProfiBus
• Size: Panel mount (IP30/NEMA 1)

Key Features

• Fire safety mode – works with alarm systems
• Auto-tuning for perfect speed control
• LCD screen shows error codes clearly
• Works in dirty/wet places (IP30 rated)

FAQ

1. Can the 22C-B049A103 work with single-phase power?
   No, it needs 3-phase power (180-265V AC).
2. How do I reset errors?
   Use the LCD keypad or clear the fault signal.
3. Can it control motors smaller than 15HP?
   Yes, but set correct current limits first.
4. What cables work with RS485 ports?
   Shielded twisted-pair cables (24 AWG).
5. Is the PID control adjustable?
   Yes, tune it via keypad or software.

What’s Included

• 1x 22C-B049A103 VFD unit
• Mounting screws
• Quick start guide
• 12-month warranty – defects covered for 1 year

Shipping: Fast delivery via FedEx, UPS, or DHL.
