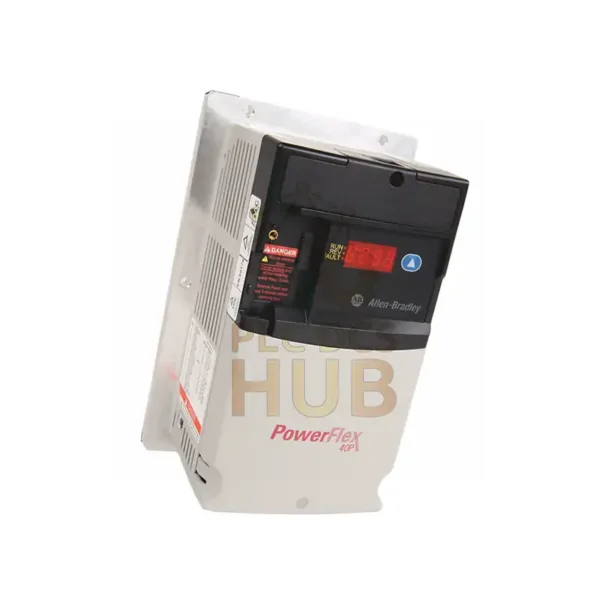

Allen-Bradley 22D-E1P7H204 Drive – Compact 1 HP Motor Control
Why Choose This Drive?
- 600V AC input – Works with high-voltage systems
- 1 HP (0.75 kW) output – Perfect for small motors
- 1.7A current rating – Energy-efficient operation
- Flexible mounting – Panel or DIN rail options
- Sensorless vector control – Smooth speed regulation
Technical Highlights
- Brand: Allen-Bradley
- Model: 22D-E1P7H204 (600V, 1HP, Frame B)
- Input: 600V AC, 3-Phase, 50/60Hz
- Output: 0-600V AC, 1.7A, 0.75kW
- PWM Frequency: Up to 16kHz (quiet operation)
- Protection: IP20 (NEMA Open Type)
- Operating Temp: 0°C to 40°C (32°F to 104°F)
- Storage Temp: -40°C to 85°C (-40°F to 185°F)
- Communication: RS485 standard
Easy Setup & Protection
- Simple panel or DIN rail installation
- Built-in display for easy monitoring
- Reset button for quick troubleshooting
- 12-month warranty – Quality guaranteed
- Worldwide shipping available
Common Questions
- Can this drive work with single-phase motors? No, 3-phase only.
- Does it include a cooling fan? No, passive cooling only.
- What’s the maximum cable length? 50m (shielded) or 15m (unshielded).
- Is Ethernet communication included? No, but optional.
- Can I stack multiple drives together? Yes, with proper spacing.
Similar Products
- 22D-D2P3H204 – 2 HP, 240V, 3A
- 22D-D2P3N104 – 2 HP, 480V, 3A
