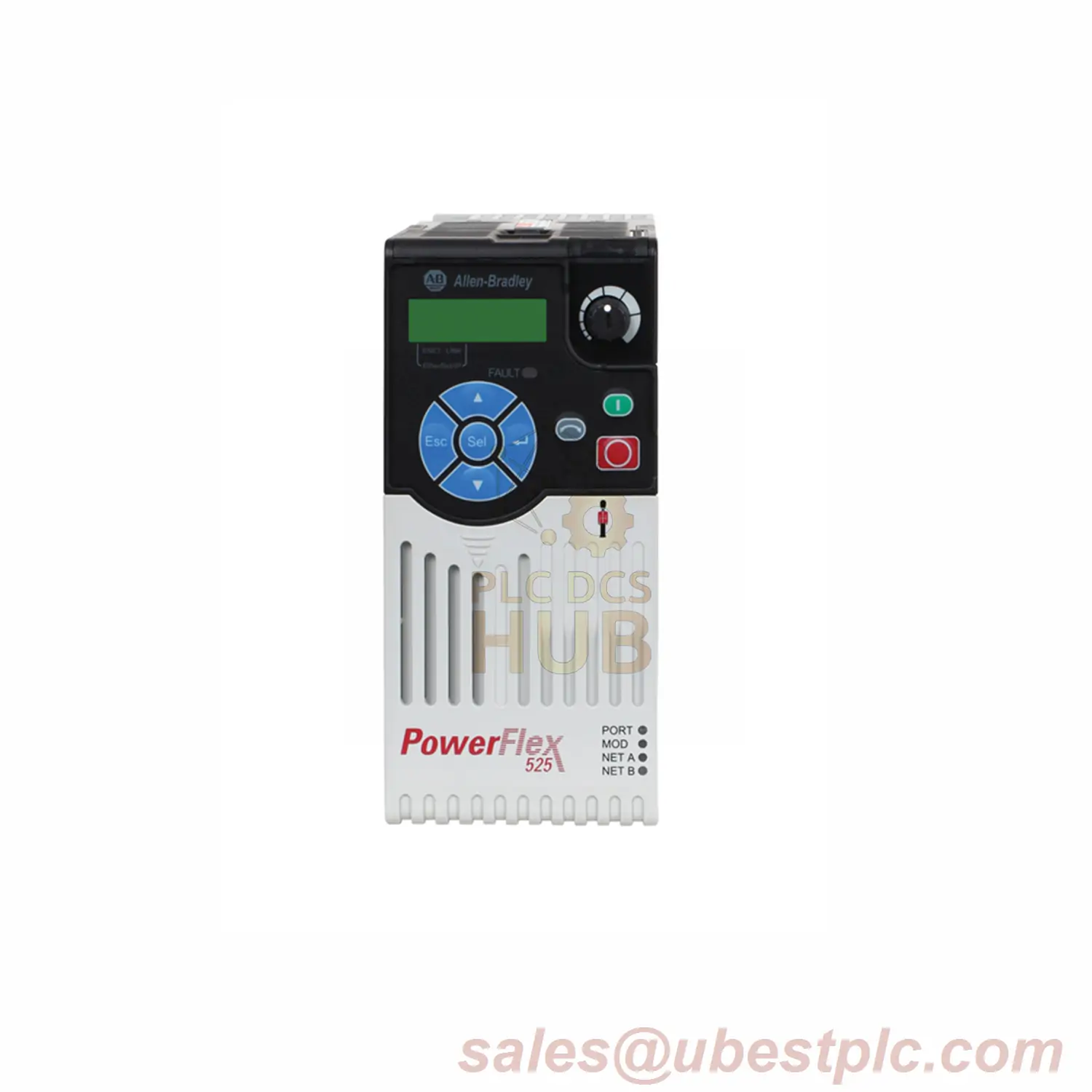

Allen-Bradley 25B-CTM1 Control Module for PowerFlex 520 Drives
Description
The Allen-Bradley 25B-CTM1 is a replacement control module designed for PowerFlex 520 series drives. It supports industrial AC drives with 240V, 480V, and 600V ratings and fits Frame sizes A to E. Built for durability, it includes a front cover and works in IP20/IP00 enclosures. Ideal for industrial automation, it ensures smooth operation with Volts per Hertz, Sensorless Vector, and PM motor control.
Technical Data
- Brand: Allen-Bradley / Rockwell Automation
- Model: 25B-CTM1
- Voltage: 240V/480V/600V AC
- Frequency: 47–63 Hz
- Compatible Frames: A to E
- Enclosure Rating: IP20/Open Type
- Storage Temp (A-D): -40°C to 85°C (-40°F to 185°F)
- Storage Temp (E): -40°C to 70°C (-40°F to 158°F)
- Humidity: 0–95% (Non-Condensing)
Key Features
- USB connectivity for easy configuration
- MainsFree configuration support
- Works with DIN rail, panel, or zero-stack mounting
- Supports EtherNet/IP, RS485/DSI communication
- Includes removable MOVs, adjustable PWM
Installation & Compatibility
Install on PowerFlex 520 drives (Frames A-E). Compatible with 240V–600V AC systems. For detailed setup, refer to the PowerFlex 520 Series Manual.
Package & Warranty
- Included: 25B-CTM1 Module, Front Cover
- Shipping: FedEx, UPS, DHL (Global)
- Warranty: 12 Months
Note: For optimal performance, ensure proper voltage matching and environmental conditions.
