Allen-Bradley | 25B-D1P4N104 PowerFlex 525 AC Drive

Description

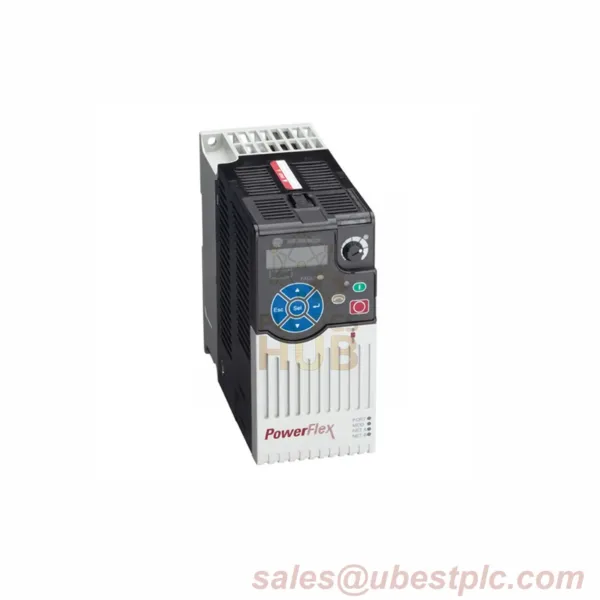

Allen-Bradley 25B-D1P4N104 PowerFlex 525 Drive – Compact 0.5HP VFD

Precision control for small motors. The 25B-D1P4N104 delivers reliable performance in a compact Frame A design.

Why Choose This Drive?

• 1.4A output for 0.5HP motors
• Built-in EtherNet/IP connectivity
• Compact Frame A design
• Easy-to-use LCD keypad
• Dual-port EtherNet/IP option available

Technical Specifications

• Brand: Allen-Bradley
• Model: 25B-D1P4N104
• Input: 323-528V AC, 3-phase
• Output: 0-460V AC, 1.4A
• Power: 0.4kW (0.5HP)
• Frequency: 0-500Hz adjustable
• Dimensions: 158x72x165mm (WxHxD)
• Weight: 1.2kg
• Display: 4-digit backlit LCD
• Mounting: Panel or DIN rail

Control Features

• 7 digital inputs
• 2 analog inputs (0-10V/4-20mA)
• Point-to-point positioning
• Dynamic braking support
• PID control built-in

Common Questions

• Q: What’s the smallest motor this can run?
  A: Suitable for motors as small as 0.1HP.
• Q: Does it include a cooling fan?
  A: No, fan cooling not required for this size.
• Q: Can I program it without the keypad?
  A: Yes, via EtherNet/IP or USB.
• Q: What fuse rating is recommended?
  A: 3-6A fuse depending on application.
• Q: Is it suitable for single-phase input?
  A: No, 3-phase input only.

Package Contents

• 25B-D1P4N104 drive unit
• Quick start guide
• Mounting brackets

Warranty

12-month quality guarantee.

Shipping Options

Fast delivery via FedEx, UPS or DHL.

Compare With

• 25B-A2P5N114 – 2.5A model
• 25B-A4P8N104 – 4.8A version
