Description

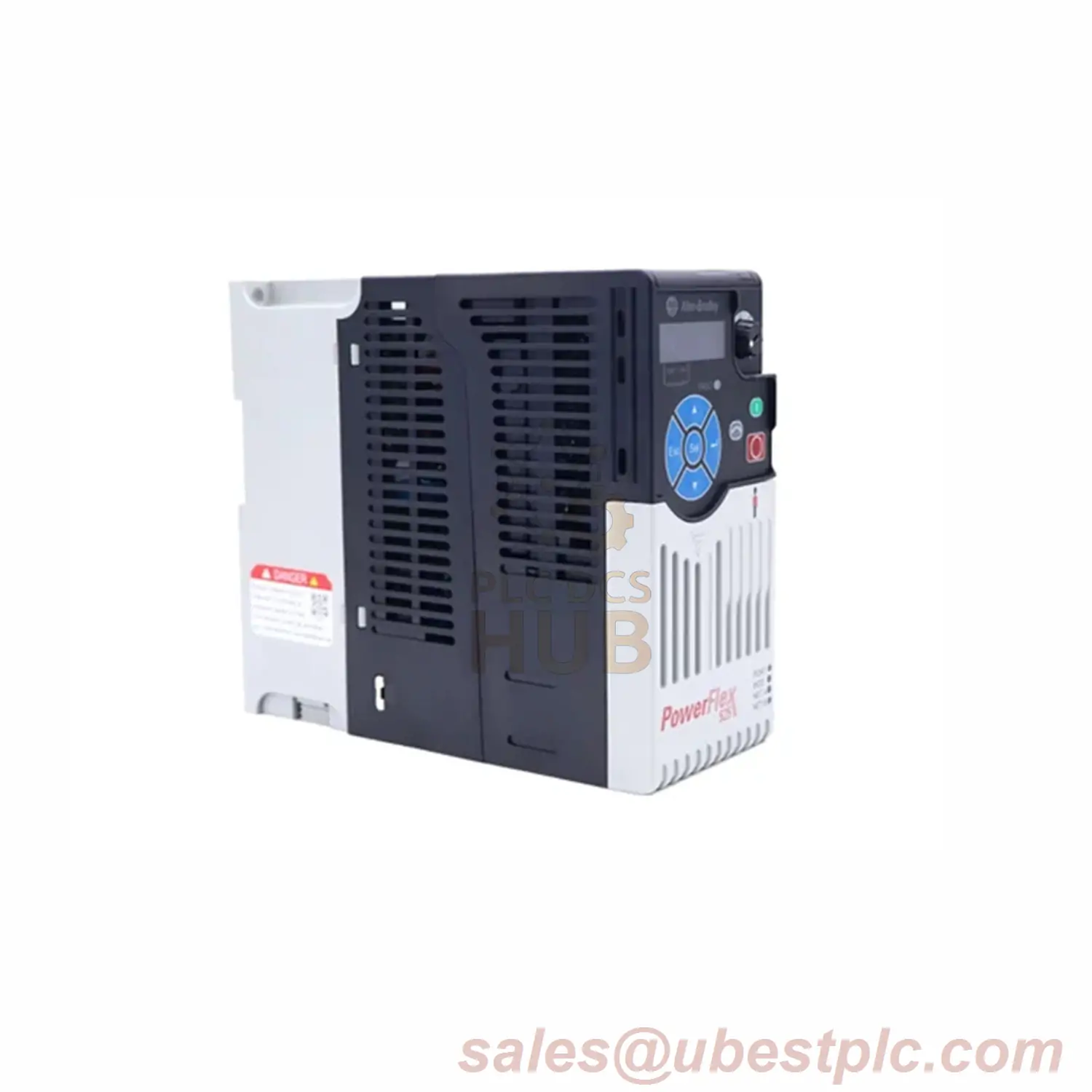

Allen-Bradley 25B-D030N114 PowerFlex 525 VFD – 20HP Industrial Drive
Premium 20HP motor controller for heavy-duty applications. The 25B-D030N114 delivers 30A output current with advanced control features.
Why Customers Choose This Drive
- Powerful 15kW (20HP) output capacity
- Works with 480V 3-phase power systems
- Built-in EtherNet/IP for easy networking
- Includes EMC filter for electrical noise reduction
- Multiple mounting options (panel or DIN rail)
Complete Specifications
- Model: PowerFlex 525 25B-D030N114
- Input: 323-528V AC, 33A (3-phase)
- Output: 0-460V AC, 30A
- Frame Size: D
- Control Methods: 5 programmable options
- Safety: SIL2 Cat 3 Safe Torque-Off
- Display: Multi-language LCD with keypad
- Dimensions: 220 × 109 × 184 mm
- Weight: 3.2 kg
Package & Support
- 12-month satisfaction guarantee
- Worldwide shipping via FedEx/UPS/DHL
- Includes installation manual
Expert Answers
- What’s the overload capacity? Handles 150% for 60 seconds
- Can it control multiple motors? Yes, via network configuration
- Is encoder feedback supported? Yes, with optional encoder card
- What’s the operating temperature range? -20°C to +50°C
- Does it include braking resistors? No, but supports external resistors
Alternative Models
- 25B-A011N114 (Lower power 1HP option)
- 25B-A2P5N104 (Compact 3HP version)
