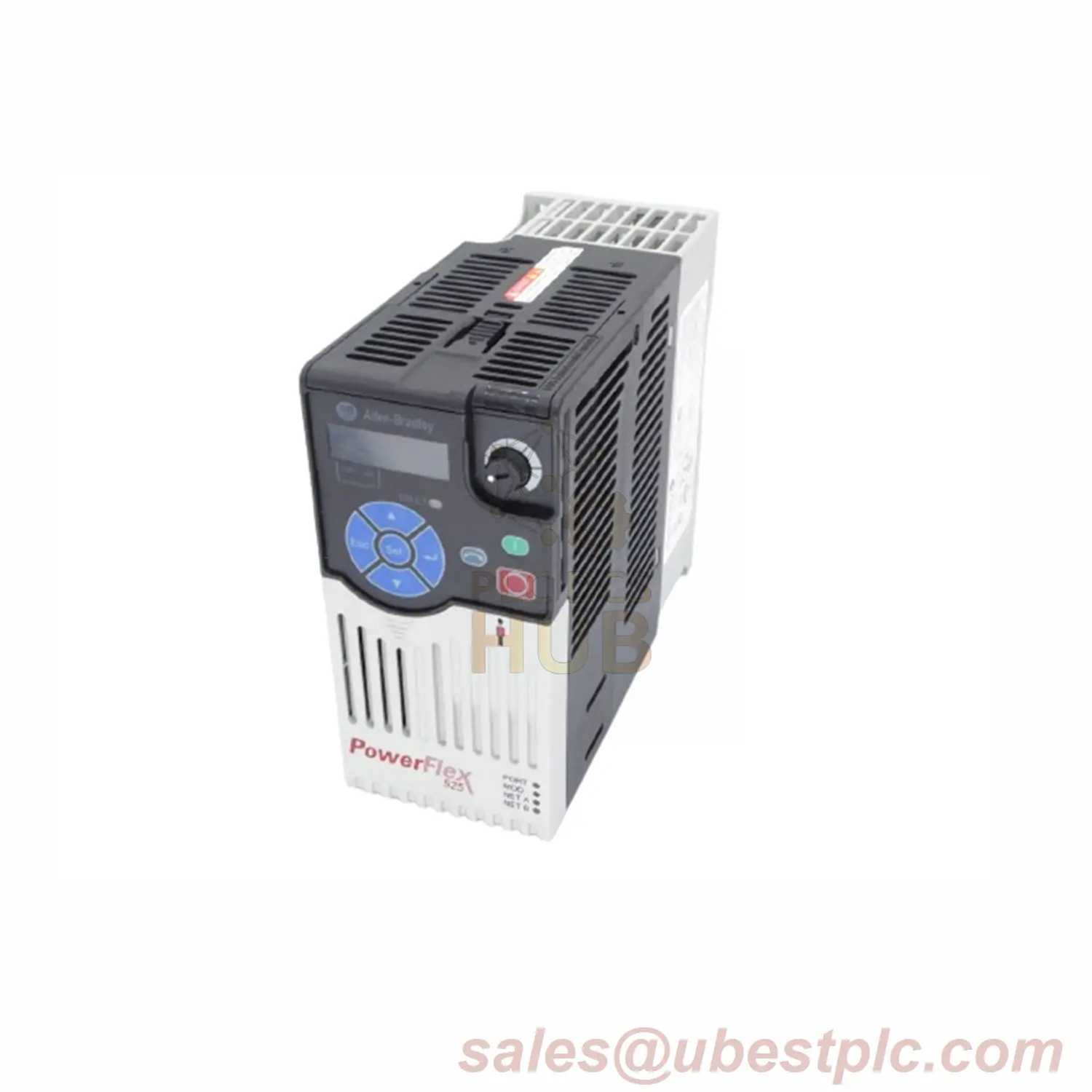

Allen-Bradley 25B-D024N104 PowerFlex 525 Drive – 15HP 480V
Industrial-grade 15HP variable frequency drive with advanced motor control. The 25B-D024N104 delivers 24A output and energy-saving features.
Top Features
- Controls motors up to 15HP (11kW)
- Works with 480V 3-phase systems
- Built-in EtherNet/IP and RS485
- Advanced PointStop positioning
- Safe Torque-Off (STO) safety
25B-D024N104 Specifications
- Brand: Allen-Bradley
- Model: PowerFlex 525 25B-D024N104
- Input: 323-528V AC, 3-phase
- Output: 0-460V AC, 24A
- Power: 11kW (15HP)
- Control Methods: V/Hz, Vector, PM Motor
- I/O: 7 digital inputs, 2 analog inputs
- Enclosure: IP20 open type
- Dimensions: 220 x 109 x 184mm
- Weight: 2.8kg
Advanced Capabilities
- Built-in PID control
- Optional encoder support
- Multi-language LCD display
- USB programming port
- Internal brake IGBT
Warranty & Shipping
- 12-month product warranty
- Fast global shipping via FedEx/UPS/DHL
Technical FAQs
- Does it support Modbus communication?
- Yes, via RS485 port
- Can it control permanent magnet motors?
- Yes, with PM motor control
- What’s the overload capacity?
- 150% for 3 seconds
- Is a braking resistor included?
- No, but has IGBT for optional resistor
- Does it support USB configuration?
- Yes, for MainFree programming
Compare With Similar Models
- 25B-E4P2N104 (Higher power 20HP version)
- 25B-E6P6N104 (With EMC filtering)
