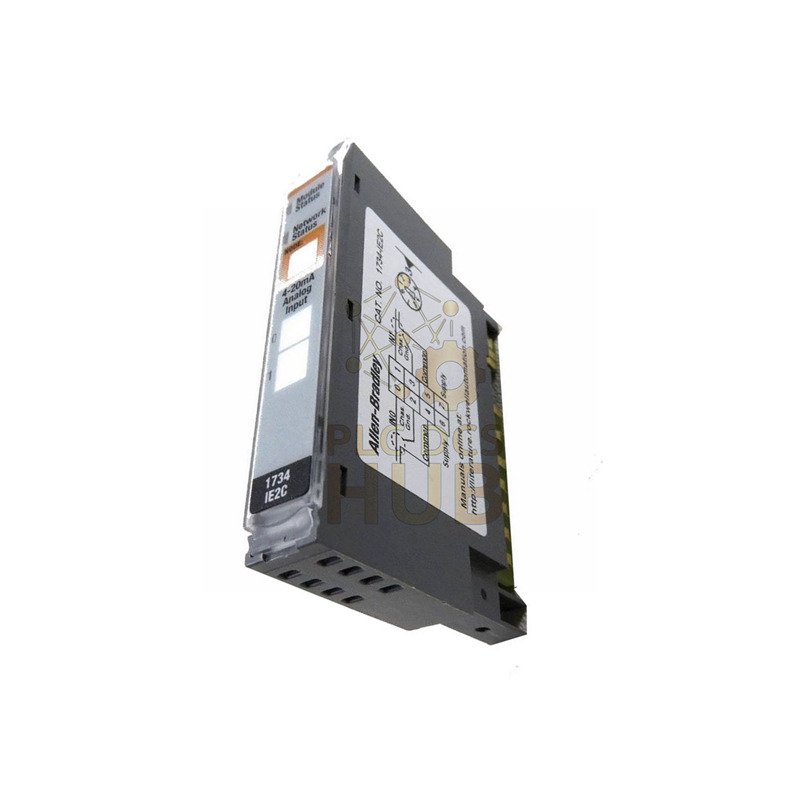

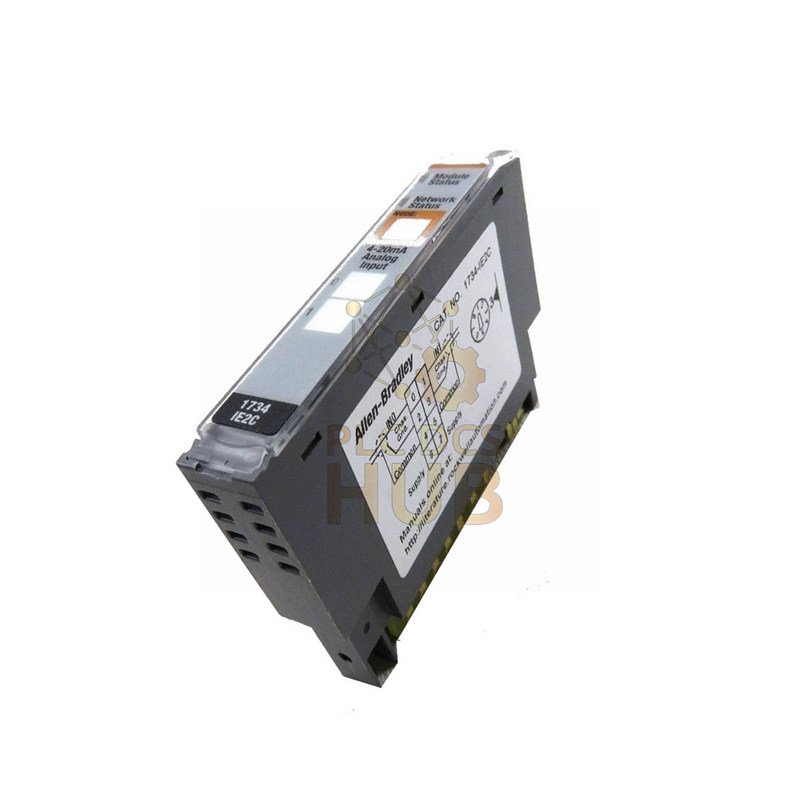

Allen-Bradley 1734-IE2C | 2-Channel Analog Current Input Module
Get a quote today! This high-resolution analog module includes our 12-month warranty and ships worldwide via FedEx, UPS, or DHL.
Detailed Technical Specifications
- Brand & Model: Allen-Bradley 1734-IE2C
- Series: POINT I/O Analog Module
- Input Type: Current (non-isolated)
- Number of Channels: 2 single-ended
- Signal Ranges: 0-20 mA, 4-20 mA
- Resolution: 16-bit (0.32 μA/count)
- Accuracy: ±0.1% of full scale @ 25°C
- Update Rate: 12ms to 120ms (configurable filtering)
- Power Supply: 10-28.8V DC (24V DC nominal)
- Power Consumption: 0.6W @ 28.8V DC
- Isolation Voltage: 50V continuous
- Dimensions: 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in)
- Weight: 36g (0.08 lbs)
- Compatible Networks: EtherNet/IP, DeviceNet, ControlNet
- Wire Recommendation: 22-14 AWG shielded copper
Installation & Compatibility
The 1734-IE2C mounts on standard DIN rail. It requires a terminal base (1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS). Set the keyswitch to position 3. It works with CompactLogix and ControlLogix controllers.
Frequently Asked Questions
- Q1: What sensors can I connect to this module?
A1: You can connect any 4-20mA or 0-20mA current output sensor, like pressure transmitters, temperature sensors, or flow meters. - Q2: What is the difference between 4-20mA and 0-20mA signals?
A2: A 4-20mA signal uses 4mA as the “live zero,” which helps distinguish a true zero reading from a broken wire. 0-20mA does not have this feature. - Q3: How do I configure the input filtering?
A3: The filtering (Notch frequency) is configurable in the module’s properties in Studio 5000. This lets you choose between faster response (500Hz) or better noise rejection (50/60Hz). - Q4: Can I use one channel for 4-20mA and the other for 0-20mA?
A4: Yes, each of the two channels on the 1734-IE2C can be independently configured for either signal range. - Q5: Is this module isolated?
A5: No, the 1734-IE2C is a non-isolated module. For applications requiring isolation, consider using external signal isolators.
Download The Complete Manual
Get the full installation and configuration guide:
- Detailed wiring diagrams
- Step-by-step configuration
- Application examples and best practices
