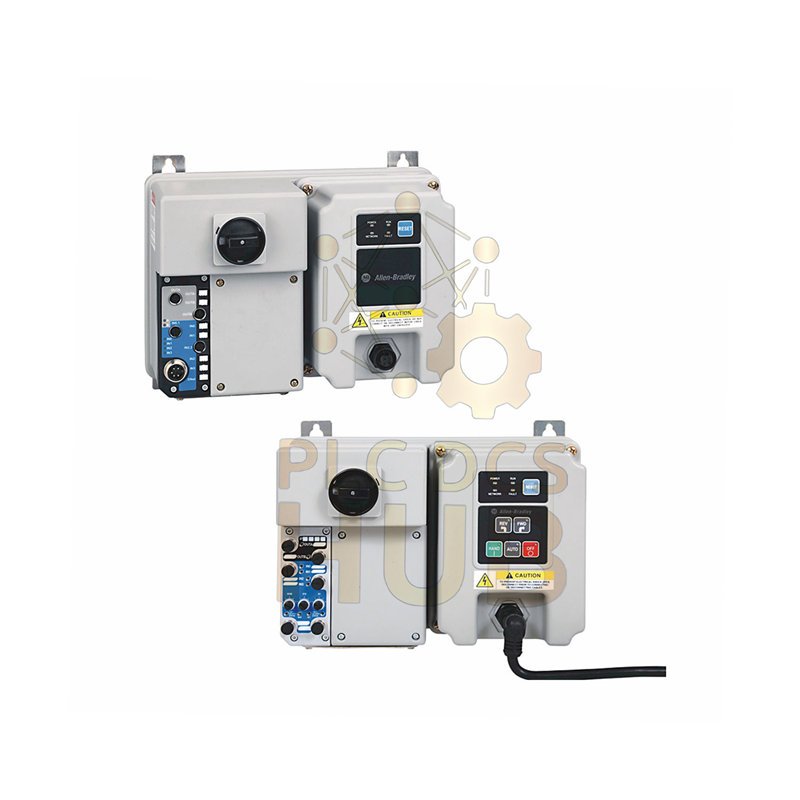

Allen-Bradley ArmorStart 280D-F23Z-25D-RRW-3 Distributed Motor Starter IP67

Description

Allen-Bradley ArmorStart® 280D-F23Z-25D-RRW-3 Distributed Motor Controller

ArmorStart® 280D-F23Z-25D-RRW-3 is an on-machine motor starting solution.
It works in harsh areas.

Quick Highlights

• Brand: Allen-Bradley
• Series: ArmorStart® Bulletin 280
• Type: Distributed motor controller
• Function: Full-voltage starter with reversing

Power & Motor Range

• Motor Power: 0.5 to 10 Hp
• Power Rating: Up to 7.5 kW
• Motor Protection: Overload and short circuit
• Rated Current Device: 25 A

Network & Control

• Communication: DeviceNet
• Peer Communication: ZIP peer-to-peer
• Logic Control: DeviceLogix™
• I/O Expansion: Supports ArmorPoint I/O

Inputs & Outputs

• Digital Inputs: 4 total
• Input Voltage: 24 V DC
• Relay Outputs: 2 normally open
• Output Load: Up to 2 A combined

Electrical Details

• Control Voltage: 24 V DC
• Output Voltage Support: 24 V DC / 120 V AC / 240 V AC
• Frequency: 50 / 60 Hz
• Dielectric Strength: Up to 2000 V AC

Mechanical & Protection

• Enclosure Rating: IP67 / NEMA Type 4 & 4X
• Housing: Industrial sealed enclosure
• Mounting: On-machine installation
• Resistance: Dust, water, oil splash

LED Status & Local Control

• Power Status LED
• Run Status LED
• Network Status LED
• Fault Indicator LED
• Local Reset Button

Integrated Diagnostics

• Overload detection
• Phase loss monitoring
• Phase imbalance check
• Over-temperature alarm
• Network power loss alert

Connection Options

• Quick-disconnect I/O ports
• Round media power connectors
• Conduit gland entry support
• ArmorConnect™ power media ready

Included Accessories

• 3 m unshielded motor cable
• Factory installed HOA keypad

Catalog Number Tree

• 280D-F23Z-25D-RRW-3
  • 280D
    • Full voltage starter
  • F
    • IP67 / Type 4 enclosure
  • 23Z
    • 24 V DC control
  • 25
    • 25 A motor protection
  • RRW
    • Round power media connection
  • 3
    • Hand / Off / Auto keypad

Key Selling Points

• Less panel wiring.
• Faster machine build time.
• Easy module replacement.
• Strong diagnostics reduce downtime.
• Ideal for distributed machines.

Warranty & Shipping

• Warranty: 12 months
• Shipping: FedEx, UPS, DHL

Professional FAQ

• Can this unit be mounted directly on the machine?
• Yes. It is designed for on-machine use.
• Is field wiring reduced compared to panel starters?
• Yes. Quick connectors cut wiring time.
• How does this help maintenance teams?
• LEDs and fault codes speed troubleshooting.
• Can it grow with future I/O needs?
• ArmorPoint I/O allows easy expansion.
• Is this suitable for washdown areas?
• The IP67 enclosure supports wet locations.
